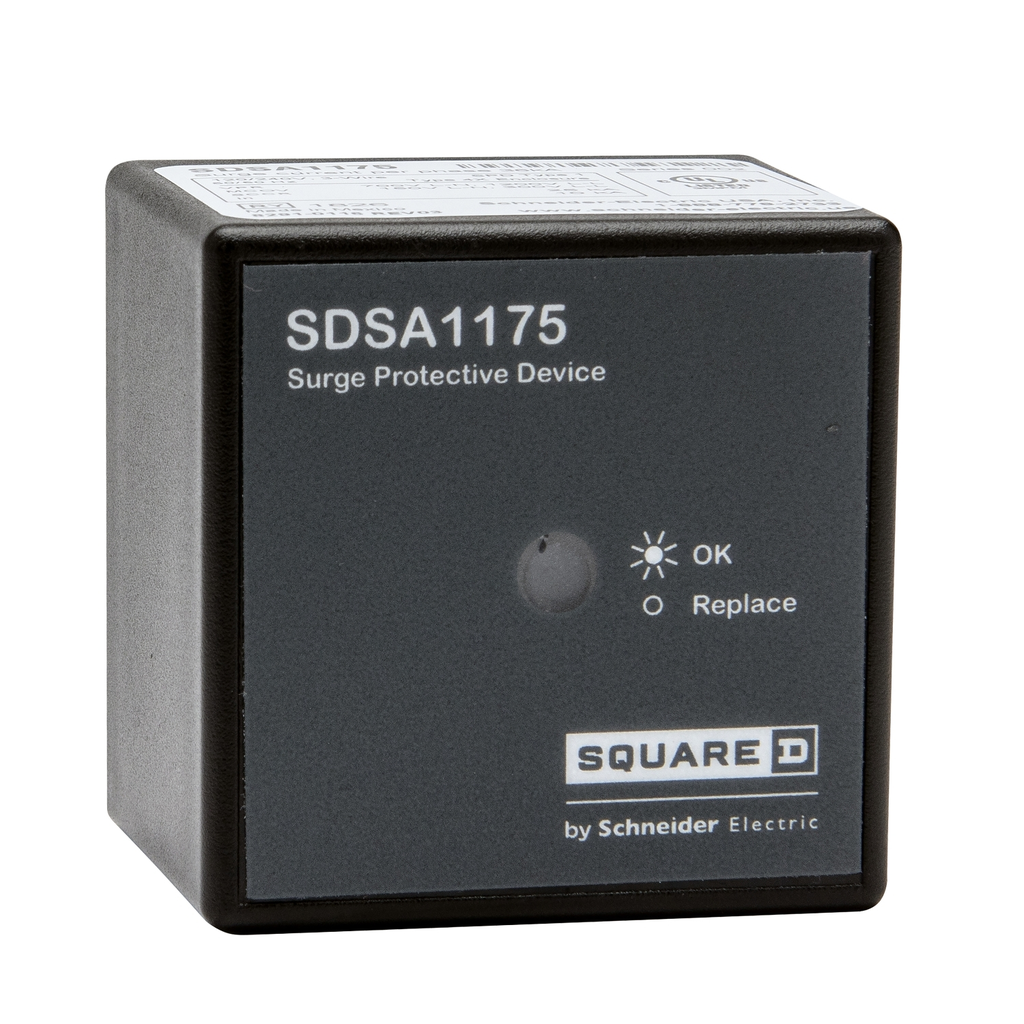

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cable Length : 24 in
• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 150 V
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 0.1580267586158608, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.7329642923577202
• Carbon Footprint Of The Installation Phase A5 : 0.004058897894106709, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.476559566761104
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 236 kg CO2 eq., 235.6685386818315
• Certificate Agency : UL 1449:ed. 4: type I, NEC 285, CSA C22.2 No 8
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 1
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 10 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2510004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Enclosure Material : Black Plastic
• Energy Efficiency Optimized : False
• Local Signalling : status LED green normal operation
• Nominal Discharge Current : 10 kA
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 25 kA
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 239 kg CO2 eq.
• Wiring Configuration : 3-wire
• Warranty In Months : 18
• Pep Code : ENVPEP2510004EN
• Database Version : 2024-01
• Pep Verification Date : 2025-10-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y2 : 20
• Energy Consumption On Product Lifetime In Kwh : 525.6
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 9
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 2.25 in
• Width Nominal : 2.25 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 239.0401481974603
• Ambient Air Temperature For Operation : 65-65 °C
• Circularity Profile : ENVEOLI2510004EN
• Environmental Disclosure : ENVPEP2510004EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2510004EN
• Pep Verification Date : 2025-10-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Surge Protection And Filtering Attributes
• Surge Current : 36 kA per phase
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia, Mexico, United States, ZZ
• Depth : 2.7 in
