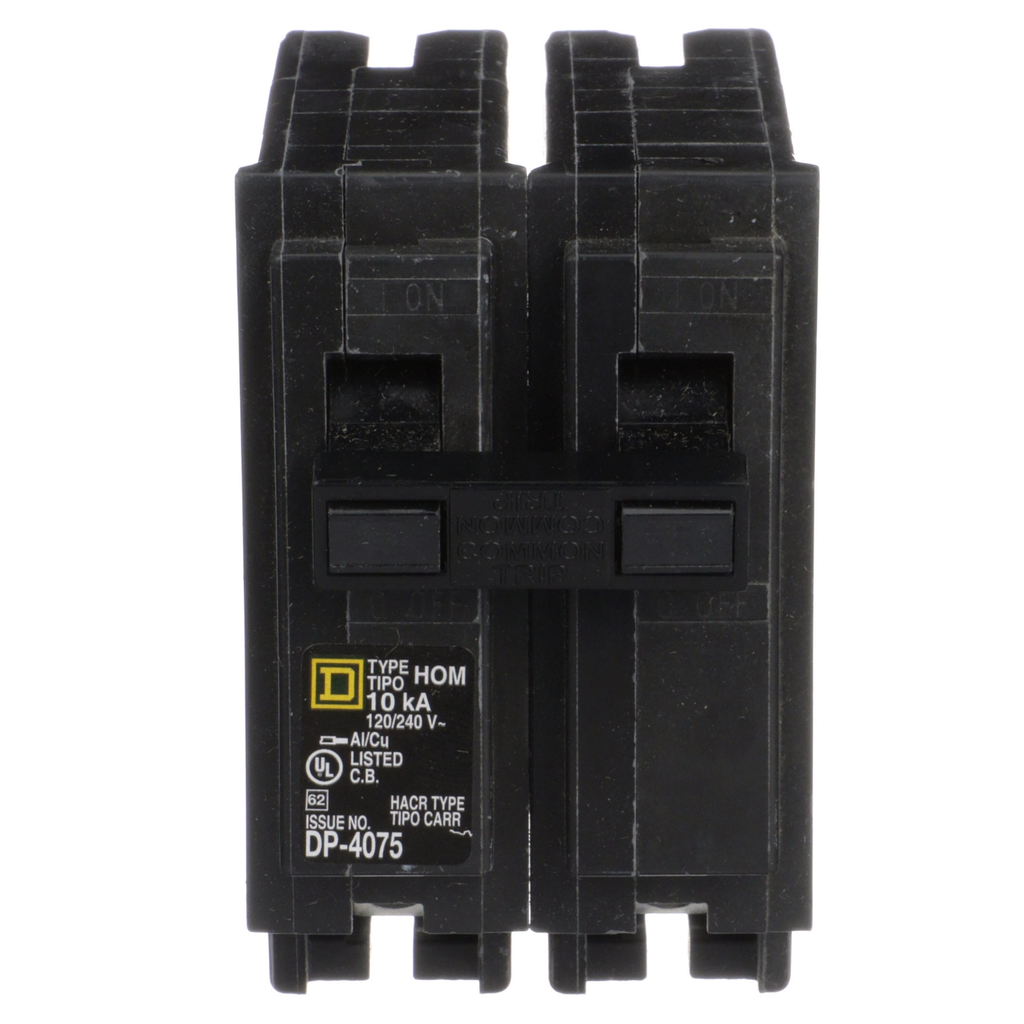

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a high amperage box lug that will accept 1 wire. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. It use high amperage lugs that would work on low amperage circuit breaker. HOM Homeline miniature circuit breakers are UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : 120/240 V AC, 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC
• Persona Type Names : End User, Contractor
• AWG Gauge : 1 x AWG 8...AWG 2 ( aluminium/copper ), 1 x AWG 8...AWG 2 ( aluminium/copper ), 1 x AWG 8...AWG 2 ( aluminium/copper )
• Tightening Torque : 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14), 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14), 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14), 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4), 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4), 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4)
• Carbon Footprint Of The Distribution Phase A4 : 0.0819973, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0669806
• Carbon Footprint Of The Installation Phase A5 : 0.000325956, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.342855
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 22 kg CO2 eq., 21.872
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 2 - SELECTED (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 2P
• Circuit Breaker Type : standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 0.322 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1308001EN
• Pep Verification Date : 2021-12-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/240 VAC and rated current 20A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 23.364158856
• Environmental Disclosure : ENVPEP1308001EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP1308001EN
• Pep Verification Date : 2021-12-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
