expansion module, Modicon MCM, speed monitoring, 2 proximity sensor, screw

SPEED MONITORING 2 PROXIMITY S

SQDXPSMCMEN0200 XPSMCMEN0200 3606480748912
411.64 / EA
http://schema.org/OutOfStock

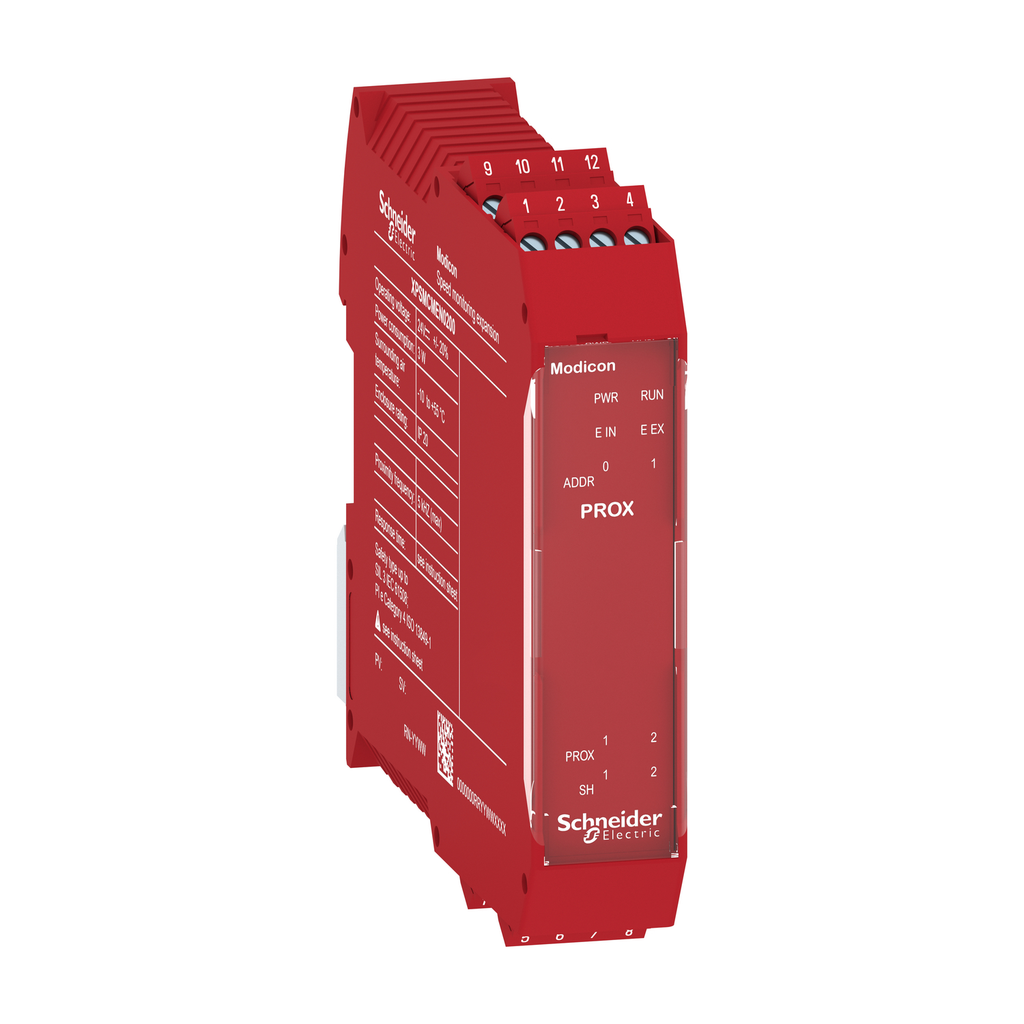

Mayer-DDS-expansion module, Modicon MCM, speed monitoring, 2 proximity sensor, screw-1
  • Country of Origin: Italy
This Modicon MCM safe speed monitoring module has 2 inputs for proximity switches (with terminal blocks for wiring) and is fitted with captive screw clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and
QTY
  • Product Description
  • Features
  • Specifications
This Modicon MCM safe speed monitoring module has 2 inputs for proximity switches (with terminal blocks for wiring) and is fitted with captive screw clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and
  • US Rated Supply Voltage
    • 24 V - 20...20 % DC
  • Connections Terminals
    • 2 captive screw clamp terminals, removable terminal block
    • 1 captive screw clamp terminals, removable terminal block
  • Mounting Support
    • omega 35 mm DIN rail EN 50022
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=XPSMCMEN0200_3D-Simpl
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001232_3D-CAD
  • IP Degree Of Protection
    • IP20 enclosure)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • 2 connectors RJ45 EIA/TIA-568-A
  • Discrete Input Voltage
    • 24 V DC
  • Vibration Resistance
    • +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
  • Safety Level
    • can reach category 4 ISO 13849-1
    • can reach PL = e ISO 13849-1
    • type 4 IEC 61496-1
    • SILCL 3 IEC 62061
  • Maximum Input Frequency
    • 5 kHz sensor
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
    • electrostatic discharge immunity test - test level: 6 kV (
  • Cable Cross Section
    • 0.2-2.5 mm² flexible without cable end
    • 0.2-2.5 mm² solid without cable end
    • 0.25-2.5 mm² flexible with ca
  • Insulation
    • 250 V AC between power supply and housing IEC 61800-5-1
  • Shock Resistance
    • 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
  • Local Signalling
    • 1 LED green PWR power ON
    • 1 LED green RUN RUN (status)
    • 1 LED red E IN internal error
    • 1 LED re
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV IEC 61800-5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=416421703&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -20-85 °C
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 %
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 1/12/2024
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1847
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Device Short Name : XPSMCM
    • Number Of Terminal Blocks : 4
    • Package Weight Lbs : 224.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safe speed monitoring module
    • Quality Labels : CE
    • Range Of Product : Preventa Safety automation
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Accessories : XPSMCMCN0000SG
    • Warranty In Months : 18
  • Specifications
    • Country of Origin : Italy
  • General Attributes
    • Product Or Component Type : safe speed monitoring module
    • Range Of Product : Preventa Safety automation
