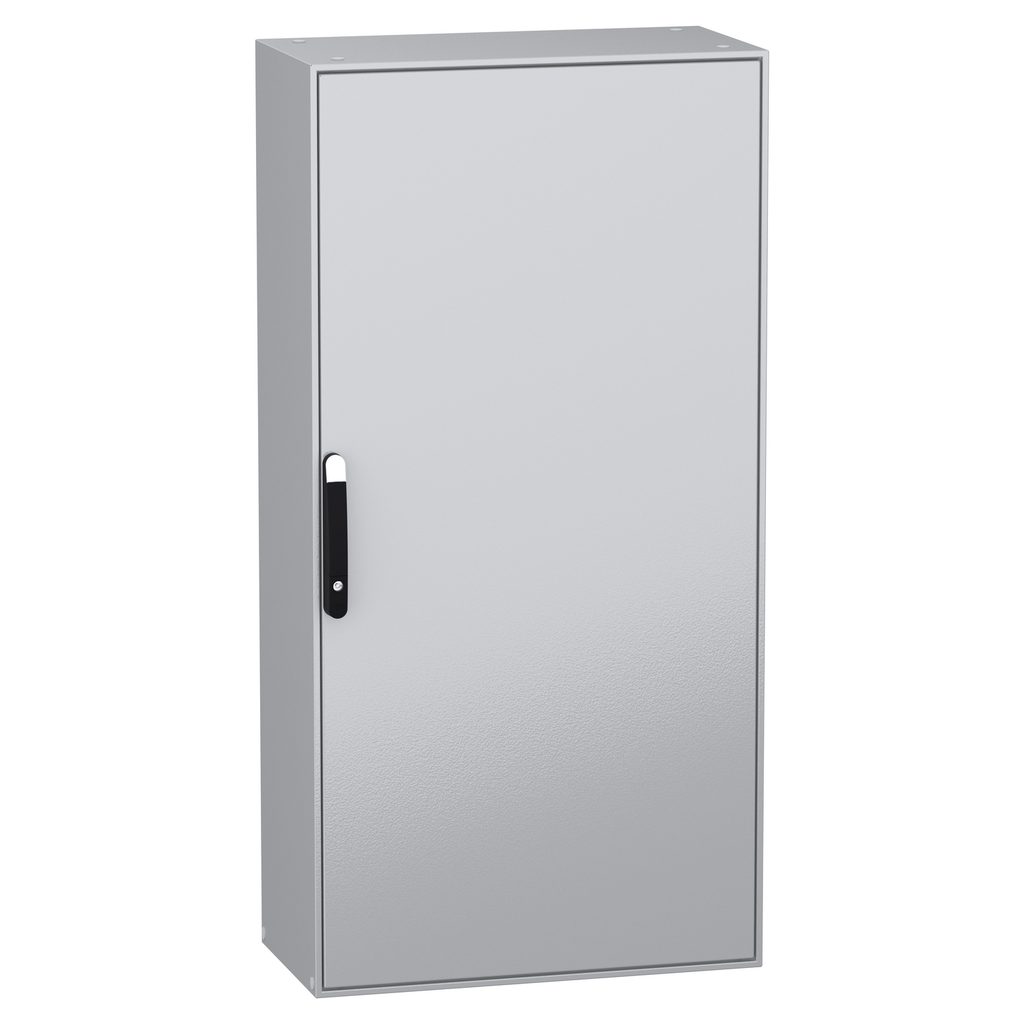

Spacial SM monobloc compact steel enclosure with plain front door. 1600 x 800 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=NSYSM16840P_3D-CAD&p_File_name=NSYSM16840P_2D-top.dxf
• IP Degree Of Protection
• IP55 IEC 60529
• Carbon Footprint Of The Installation Phase A5
• 21.35564435
• 21 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 226 kg CO2 eq.
• 226.4148344
• Material
• mounting plate galvanised steel
• body sheet steel
• door sheet steel
• hinge zamak
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 418 kg CO2 eq.
• 418.4870496
• Number Of Doors
• front 1
• Removable Parts
• door by screws hinge
• mounting plate by screws mounting plate bracket
• mounting plate bracket by screws
• Accessories
• NSYSPF8100
• NSYSPS4100
• NSYSPF8200
• NSYSPS4200
• NSYID168
• NSYMP168
• NSYTVR16
• NSYRSW31
• NSYOL6GF
• NSYSMBCE8
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 body
• 1 cable gland plate
• 1 locking system with handle door
• 4 mounting plate bracket
• 1 mounting plate
• 1 door
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 18.53989484
• 19 kg CO2 eq.
• Door Opening Side
• reversible 120 °)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• enclosure Gray RAL 7035)
• handle Black RAL 9005)

• Physical Attributes
• Enclosure Nominal Height : 1600 mm
• Enclosure Nominal Width : 800 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Manufacturing Carbon Footprint : 418.4870496
• Distribution Carbon Footprint : 18.53989484
• Installation Carbon Footprint : 21.35564435
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 226.4148344
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1912
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Installation Accessory Type : floor-standing
• Package Weight Lbs : 101.000 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 685 kg CO2 eq.
• Type Of Gland Plate : standard
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 684.7974233
• Relationship Type : Assembly relationship
• Pep Code : ENVPEP110923EN
• Pep Verification Date : 2023-03-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 96312
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0
• Recyclability Potential In : 98
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 : 0
• Energy Model Use B6 : 0
• Energy Model End Of Life C1 C4 : 0
• Acidification Ap Mole Of H Equiv Total Life Cycle : 2.661478578
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 1.728143935
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.083573588
• Acidification Ap Mole Of H Equiv Installation A5 : 0.072840404
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.776920651
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -3.772866219
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.438137767
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 2.331595367
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : -1.893457601
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -4.089801745
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 684.3574996
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 416.1534898
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 18.53989484
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 23.24928054
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 226.4148344
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -655.1826439
• Climate Change Total Kg Co2 Eq Total Life Cycle : 684.7974233
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 418.4870496
• Climate Change Total Kg Co2 Eq Distribution A4 : 18.53989484
• Climate Change Total Kg Co2 Eq Installation A5 : 21.35564435
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 226.4148344
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -659.2901855
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.021564959
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.021555664
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000159861
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.000000610535
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000868358
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.178422081
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 35384.70848
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 18148.19015
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 225.8254915
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 187.0360121
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 16823.65682
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -13837.6527
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 3520.270272
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 3159.949582
• Ecotoxicity Fresh Water Ctue Distribution A4 : 76.12643694
• Ecotoxicity Fresh Water Ctue Installation A5 : 120.2378615
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 163.9563909
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -10557.57241
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000460155
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000414463
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.000000224873
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.000000482469
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000386192
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.000316465
• Exported Energy Mj By Energy Vector Total Life Cycle : 3.267620748
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.307154814
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 2.960465933
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000651437
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000456943
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000217771
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.000153426
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000388907
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.001713142
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1601.348844
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1517.171076
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.015408639
• Hazardous Waste Disposed Of Kg Installation A5 : 0.207782073
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 83.95457775
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -14084.70049
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.000236644
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000230391
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.000000000211759
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000622918
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000231796
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.002092763
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000147911
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000951521
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.0000000470611
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000982714
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000513056
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000340908
• Impacts Related To Land Use Soil Quality Total Life Cycle : 4.537226127
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 4.537226127
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 23.03376259
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 20.7561814
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.041233169
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.829723395
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 1.406624631
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -113.3383823
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.500090209
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.302172188
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.038636488
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.019952532
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.139329
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.433274199
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 90.92787367
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 10.94987239
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 79.97800128
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 5.907456154
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 3.685179136
• Net Use Of Fresh Water M3 Distribution A4 : 0.021968204
• Net Use Of Fresh Water M3 Installation A5 : 0.174576469
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 2.025732345
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -6.703626888
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 450.7207785
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 389.7044939
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.018929218
• Non Hazardous Waste Disposed Of Kg Installation A5 : 60.48206126
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.515294065
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1455.081716
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000029548
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000113702
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000164117
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000116142
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.000000604702
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000880562
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.800587277
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 1.064686679
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.135816755
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.042690453
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.55739339
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -1.572652652
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.086794711
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.074792974
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.003697561
• Radioactive Waste Disposed Of Kg Installation A5 : 0.007740632
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000563543
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.258078622
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 5.357603377
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 3.263412006
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.418445379
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.154467375
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 1.521278618
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -4.715100535
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.03340796
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.03340796
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.005107639
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 35645.63857
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 18375.59318
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 225.8254915
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 219.9677801
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 16824.25212
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -14282.33872
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 260.6364963
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 227.5697084
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001512885
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 32.92998211
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.135292894
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -444.9300926
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.03340796
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.03340796
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.005107639
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 35371.61197
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 18135.09364
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 225.8254915
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 187.0360121
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 16823.65682
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -13837.6527
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 290.2960352
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 290.2960352
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -752.6325792
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -29.65953883
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -62.72632672
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001512885
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 32.92998211
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.135292894
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 307.6905807
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.000216831
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.000216831
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : compact enclosure
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10175259&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 684.7974233
• Environmental Disclosure : ENVPEP110923EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP110923EN
• Pep Verification Date : 2023-03-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
