Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1400 x 1000 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

• Physical Attributes
• Color : enclosure Gray RAL 7035), handle Black RAL 9005)
• Enclosure Nominal Height : 1400 mm
• Enclosure Nominal Width : 1000 mm
• Conformance Attributes
• Product Certifications : DNV, BV, UL
• Standards : IEC 62208
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Body Type : single piece body with welded rear panel, front part forming a rigid frame with welded corners
• Device Composition : 1 body, 2 door, 1 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket, 1 mounting plate
• Door Opening Side : left 120 °), right 120 °)

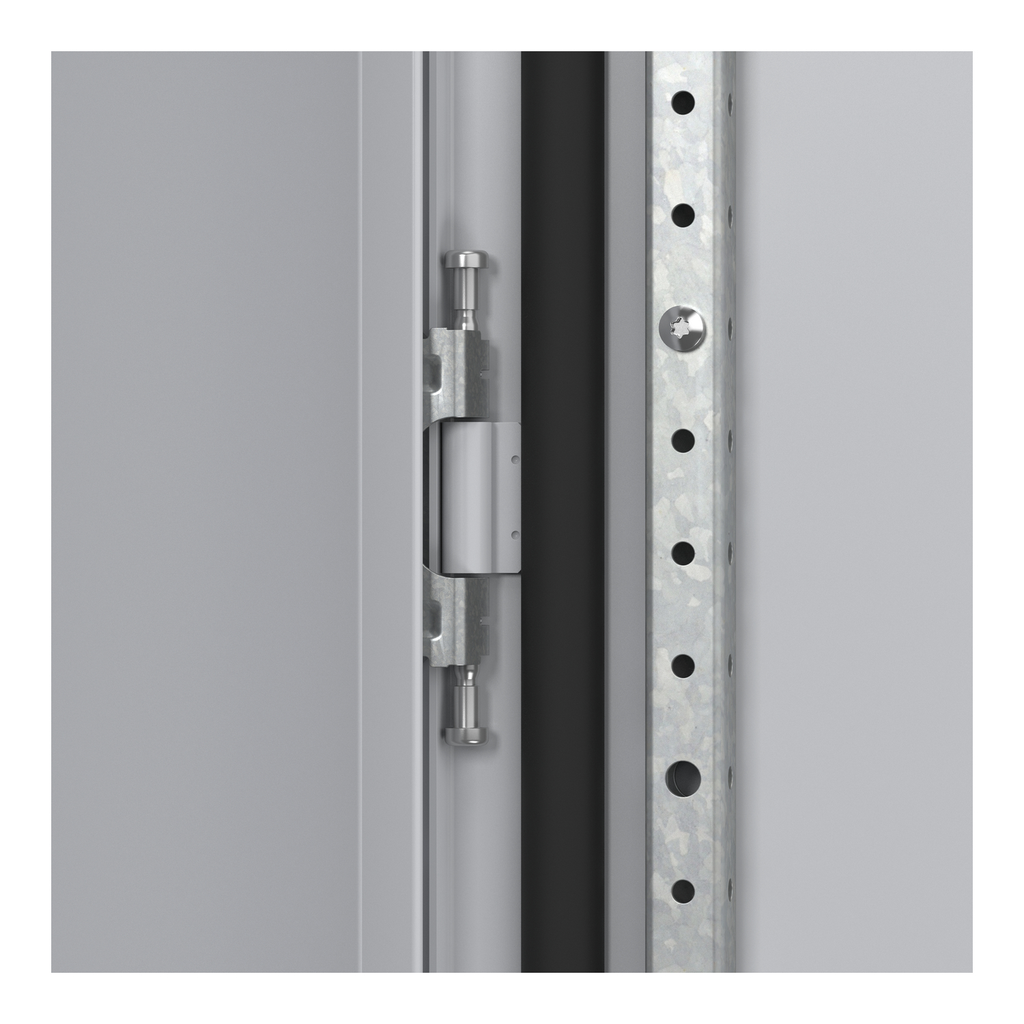

• Material : mounting plate galvanised steel, body sheet steel, door sheet steel, hinge zamak
• Removable Parts : door by screws hinge, mounting plate by screws mounting plate bracket, mounting plate bracket by screws
• Carbon Footprint Of The Distribution Phase A4 : 217.99948858892535, 218 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 270 kg CO2 eq., 270.22443970925667
• Carbon Footprint Of The Installation Phase A5 : 16.82721843541053, 17 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 246 kg CO2 eq., 246.46332532825107
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1912
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cable Entry : 1 entry
• Device Application : multi-purpose
• Door Type : Solid
• Energy Efficiency Optimized : False
• Lock Type : 4 points lock, handle with 5 mm double bar insert
• Mounting Plate Description : plain
• Number Of Doors : front 2
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Name : PanelSeT SM
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : No
• Software Version : v6.2.2
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 752 kg CO2 eq.
• Type Of Gland Plate : standard
• Warranty In Months : 18
• Pep Code : ENVPEP2501030_V1
• Database Version : 2024-01
• Pep Verification Date : 2025-02-10
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 110000
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Spain, ES
• Energy Model Installation A5 2 : Electricity origin
• Energy Model Use B6 2 : Electricity origin
• Energy Model End Of Life C1 C4 2 : Electricity origin
• Recyclability Potential In 2 : 89
• Offer Owner Code : 190789
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 751.5144720618437
• Environmental Disclosure : ENVPEP2501030_V1
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP55 IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2501030_V1
• Pep Verification Date : 2025-02-10
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• ETIM
• ETIM 8 : EC000261
• ETIM 9 : EC000261
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
