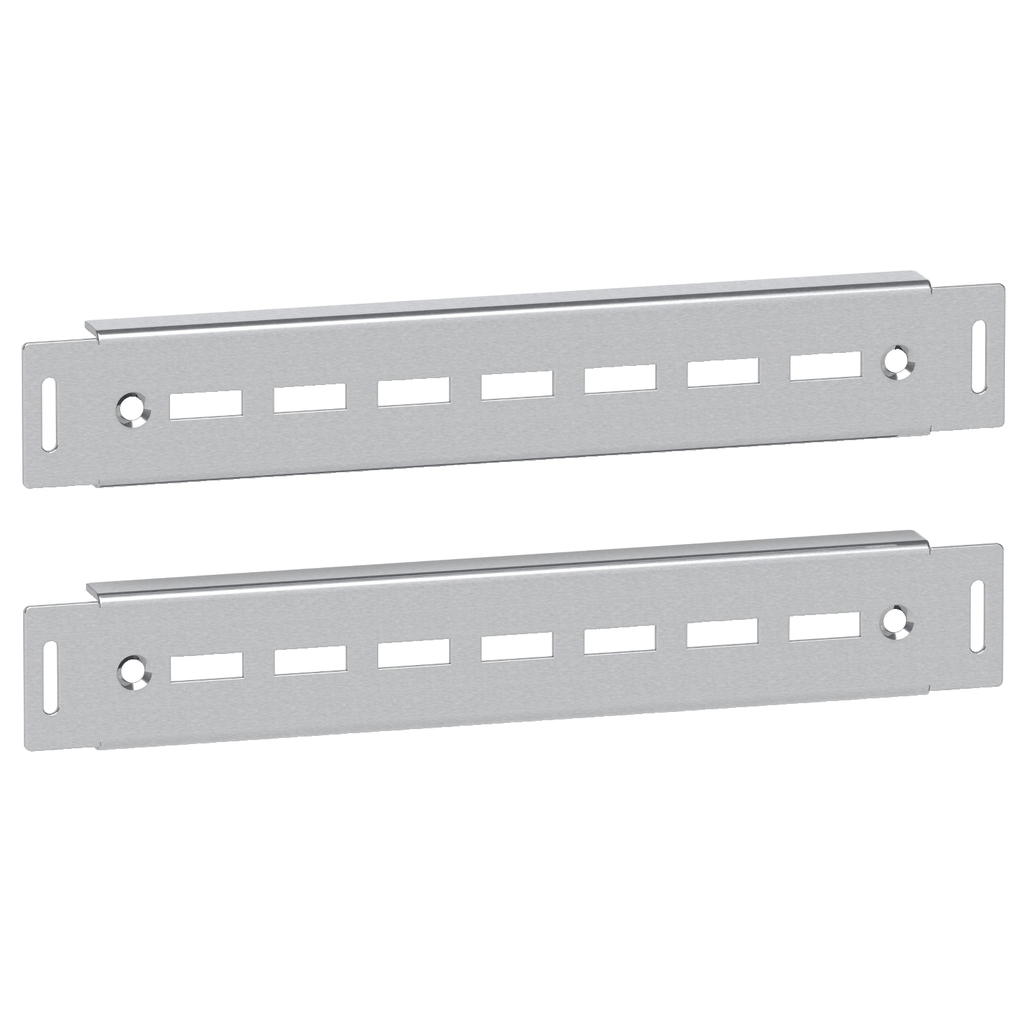

Spacial SF heavy duty cross rails. 500 mm. Depth adjustable on 25 mm pitch. Fixing by screw M6. Bottom frame mounting support. Max. Load 475 kg. Galvanized sheet steel, 3mm thickness. 2 rails.

• Mounting Support
• bottom frame
• heavy load kit
• Range Compatibility
• PanelSeT PanelSeT SF
• PanelSeT PanelSeT SF 5G
• Fixing Mode
• by fixing element M6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• fixing elements
• 2 rails
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Enclosure Nominal Dimensions
• - D: 500 mm
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Complementary Attributes
• Maximum Load : 525 kg
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• ETIM 10 : EC002620
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Adjustment : adjustable with a pitch of 25 mm
• Coverage : Core product
• Device Application : multi-purpose
• Material : galvanised steel
• Mounting Location : on structure of enclosure
• Package Weight Lbs : 2.600 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : rails for heavy load
• Product Specific Application : heavy loading
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Thickness : 3 mm
• Accessory Separate Part Category : mounting accessory
• General Attributes
• Product Or Component Type : rails for heavy load
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10176009&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Width : 19.69 in
