Mechanical door retainer, PanelSeT SFN, PanelSeT SF, 90° and 120° opening

DOOR RETAINER RETI/OL

SQDNSYSFMDR NSYSFMDR 3606480067754
34.22 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mechanical door retainer, PanelSeT SFN, PanelSeT SF, 90° and 120° opening-1
  • Warranty Length: 18 mth
This is a mechanical door retainer suitable for PanelSeT SFN and PanelSeT SF electrical enclosures. It is designed to lock the door in open position. It is fixed directly to the front frame of the enclosure and to the reinforcement frame of the door. The product can be installed on doors that open both, to the right and to the left. The limit angle are 90° and 120°. The set contains one door stop and fixing elements.
QTY
  • Product Description
  • Specifications
This is a mechanical door retainer suitable for PanelSeT SFN and PanelSeT SF electrical enclosures. It is designed to lock the door in open position. It is fixed directly to the front frame of the enclosure and to the reinforcement frame of the door. The product can be installed on doors that open both, to the right and to the left. The limit angle are 90° and 120°. The set contains one door stop and fixing elements.
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=NSYSFMDR_3D-CAD
  • Physical Attributes
    • Enclosure Cubicle Width : > 400 mm
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial

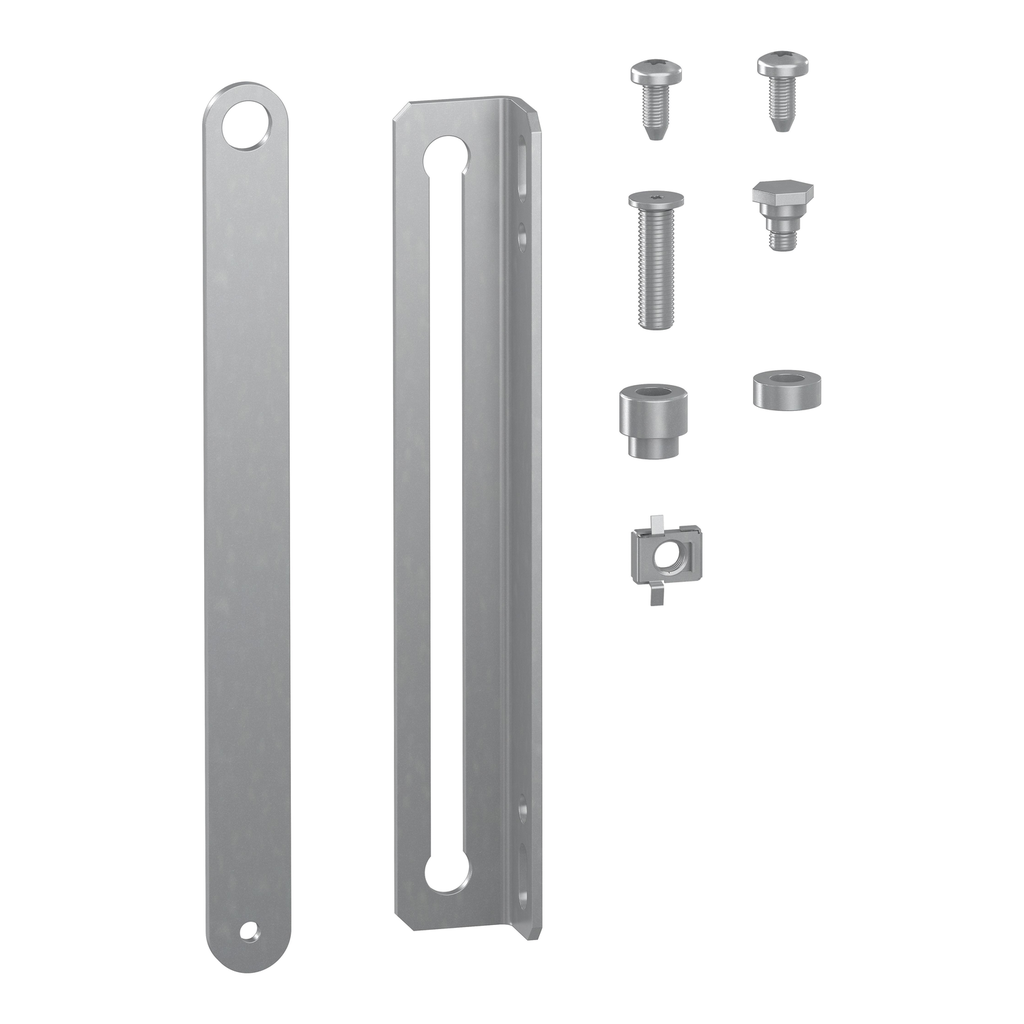

    • Device Composition : fixing elements, 1 x door stop
    • Enclosure Nominal Dimensions : -, -
    • Operating Angle : 90 °, 120 °
    • Carbon Footprint Of The Distribution Phase A4 : 0.061406953, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.749920386
    • Carbon Footprint Of The Installation Phase A5 : 0.070733144, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.38609279
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Medium Desc : Mechanical door retainer, PanelSeT SFN, PanelSeT SF, 90° and 120° opening
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-11
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Application : multi-purpose
    • Energy Efficiency Optimized : False
    • Fixing Mode : by fixing element - on front frame of enclosure
    • Mounting Location : door and enclosure
    • Opening Mechanism : mechanical
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : door retainer
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : No
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Pep Code : ENVPEP1109023EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-03-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2.268153273
    • Environmental Disclosure : ENVPEP1109023EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1109023EN
    • Pep Verification Date : 2023-03-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : door retainer
  • ETIM
    • ETIM 8 : EC002626
    • ETIM 9 : EC002626
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
