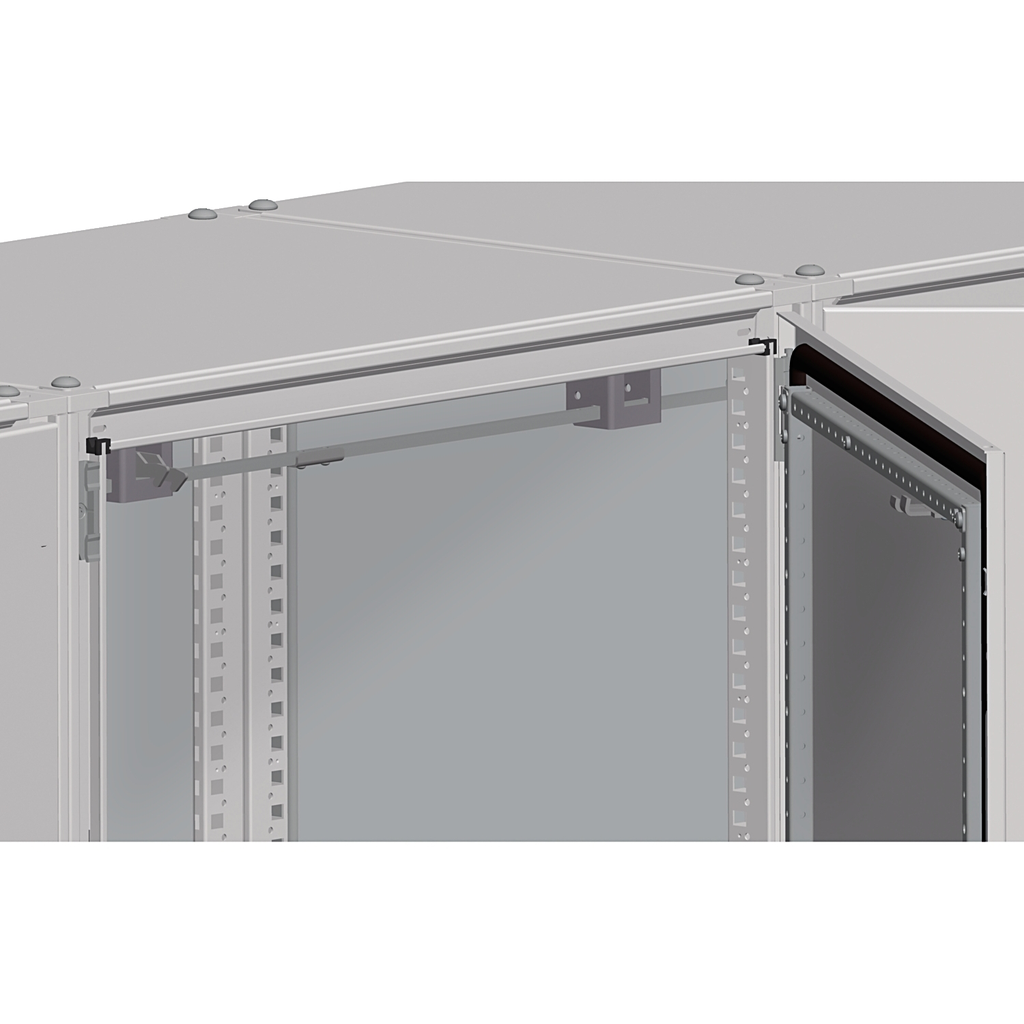

This is an interlocking system for secondary doors. The system is dsigned for interlocking the outgoing enclosures connected to one another by runner rods that lock their doors. This product is suidatble for PanelSeT SFN and PanelSeT SF electrical enclosures for automotive application. The installation consists of fixing it to the structure of the enclosures with screws. The product is made of zinc-coated steel. The width is 1000mm.

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements, 1 x mechanism
• Enclosure Nominal Dimensions : -, -, -, -
• Mounting Support : interlocking for main door, activation for secondary doors
• Medium Desc : Interlocking system for secondary doors, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1000mm , steel
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-11
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : automobile application
• Fixing Mode : by screws - on structure
• Material : steel
• Mounting Location : on top structure of secondary enclosures
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : interlocking for secondary door
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Pep Code : ENVPEP1109023EN
• Width Nominal : nominal: 1000 mm
• Width Real : nominal: 1000 mm
• Environment Attributes Main
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• General Attributes
• Product Or Component Type : interlocking for secondary door
• ETIM
• ETIM 8 : EC002626
• ETIM 9 : EC002626
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Width : 39.37 in
