Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D600mm

SPACIAL SF ADAPTATION KIT FOR

SQDNSYSMP2D6 NSYSMP2D6 3606485132105
48.38 / EA
http://schema.org/OutOfStock
Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D600mm
  • Depth: 19.96 in
  • Height: 1.06 in
  • Material: Steel
  • Warranty Length: 18 mth
  • Width: 3.54 in

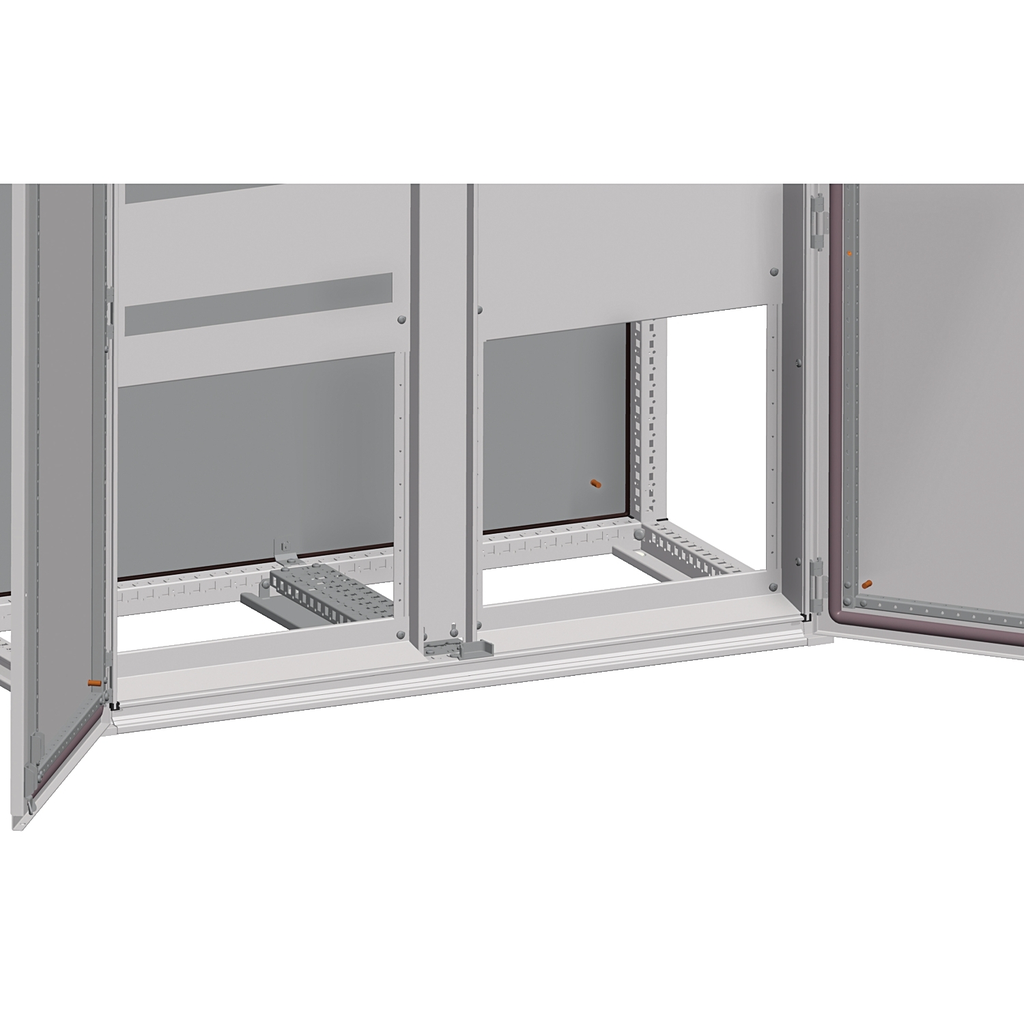

Spacial SF adaptation kit for 2 doors. Enclosure depth is 600 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and modular double-chassis coupling set. Steel made, zinc coated surface finish. Kit includes is 1 cable gland plate support, 2x90 mm cross rails, 2x bracket for fixing of roof.
QTY
  • Product Description
  • Specifications
Spacial SF adaptation kit for 2 doors. Enclosure depth is 600 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and modular double-chassis coupling set. Steel made, zinc coated surface finish. Kit includes is 1 cable gland plate support, 2x90 mm cross rails, 2x bracket for fixing of roof.
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : 1 cable galnd plate support, 1 cable galnd plate support, 2 90 mm cross rails, 2 90 mm cross rails, 2 bracket for central fixing of roof, 2 bracket for central fixing of roof, fixing elements
    • Enclosure Nominal Dimensions : - D: 600 mm, - D: 600 mm
    • Range Compatibility : PanelSeT SF, PanelSeT SF
    • Carbon Footprint Of The Distribution Phase A4 : 0.697998782, 0.7 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 9 kg CO2 eq., 8.524173412
    • Carbon Footprint Of The Installation Phase A5 : 0.804007459, 0.8 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 16 kg CO2 eq., 15.75539956
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-11
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Fixing Mode : by fixing element
    • Material : steel
    • Package Weight Lbs : 3.626 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : adaptation kit
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 26 kg CO2 eq.
    • Pep Code : ENVPEP1109023EN
    • Pep Verification Date : 2023-03-30
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 25.78157921
    • Environmental Disclosure : ENVPEP1109023EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Pep Code : ENVPEP1109023EN
    • Pep Verification Date : 2023-03-30
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : adaptation kit
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Height : 1.06 in
    • Width : 3.54 in
    • Depth : 19.96 in
