Inner door, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H1600 W600mm

SPACIAL SF/SM PLAIN INTERNAL D

SQDNSYID166 NSYID166 3606485126999
497.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-Inner door, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H1600 W600mm-1
  • Country of Origin: Spain
  • Depth: 0.77 in
  • Door Type: Internal Plain
  • Finish: Epoxy-Polyester Powder
  • Height: 57.68 in
  • Lock Type: 3 mm
  • Material: Steel
  • Warranty Length: 18 mth
  • Width: 19.69 in

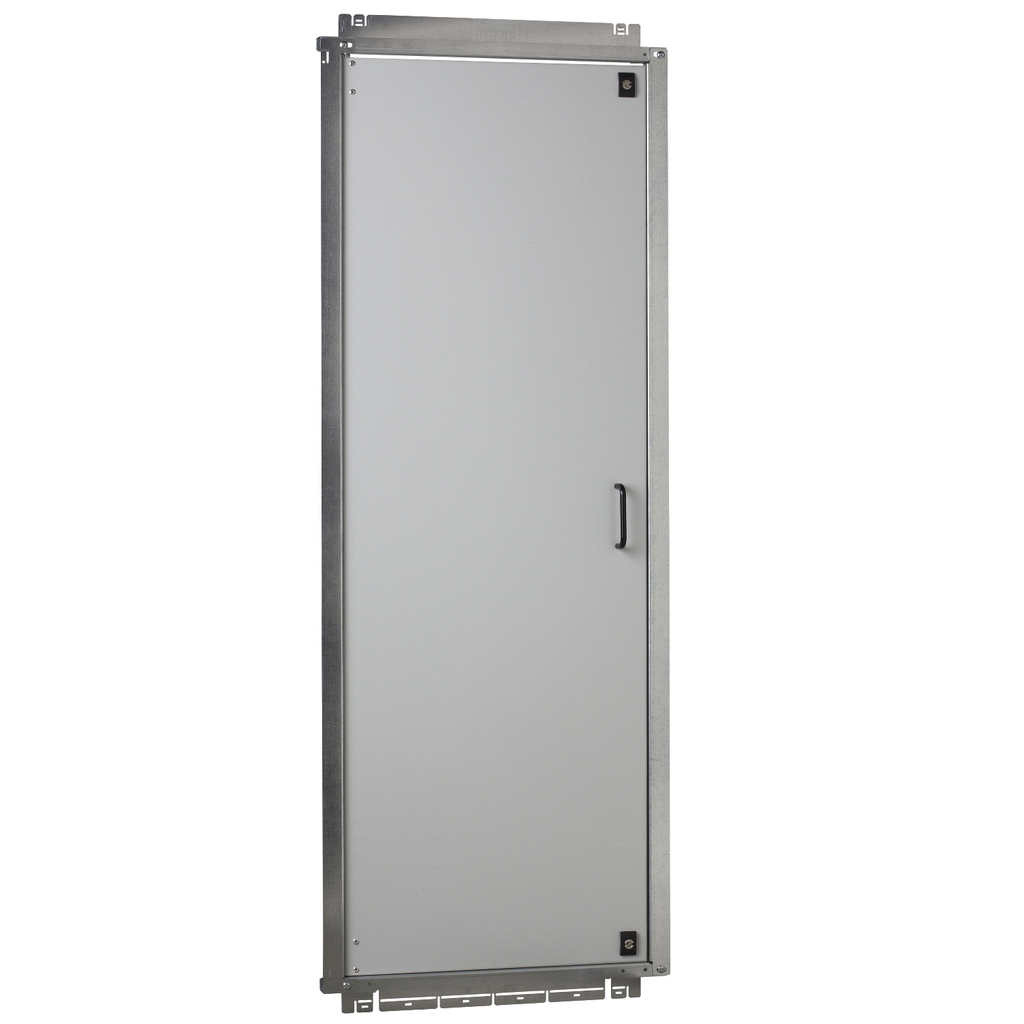

Spacial SF plain internal door for attachment to framework. 1599 x 600 mm. Depth adjustable on 25 mm pitch. Left or right hinged, 2 locks with 3 mm double bar lock inserts. Max. Load 15kg. In 1.5 mm thick steel. Grey RAL 7035.
QTY
  • Product Description
  • Features
  • Specifications
Spacial SF plain internal door for attachment to framework. 1599 x 600 mm. Depth adjustable on 25 mm pitch. Left or right hinged, 2 locks with 3 mm double bar lock inserts. Max. Load 15kg. In 1.5 mm thick steel. Grey RAL 7035.
  • Range Compatibility
    • PanelSeT PanelSeT SF
    • PanelSeT PanelSeT SM
  • Carbon Footprint Of The Installation Phase A5
    • 2.882541911
    • 3 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 31 kg CO2 eq.
    • 30.56101885
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 56 kg CO2 eq.
    • 56.48654005
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 door
    • 2 lock with 3 mm double bar insert
    • 1 handle
    • fixing elements
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 2.502477707
    • 3 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Complementary Attributes
    • Maximum Load : 15 kg/m²
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • ETIM 10 : EC000747
    • Manufacturing Carbon Footprint : 56.48654005
    • Distribution Carbon Footprint : 2.502477707
    • Installation Carbon Footprint : 2.882541911
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 30.56101885
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1912
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Adjustment : adjustable in depth every 25 mm
    • Coverage : Core product
    • Device Application : multi-purpose
    • Door Opening Side : reversible
    • Door Type : internal plain
    • Enclosure Nominal Dimensions : -
    • Energy Efficiency Optimized : False
    • Lock Type : lock 3 mm double bar
    • Material : sheet steel
    • Mounting Location : front
    • Number Of Locks : 2
    • Package Weight Lbs : 13.0 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : door
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : No
    • Surface Finish : epoxy-polyester powder
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 92 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 92.43257852
    • Accessory Separate Part Category : enclosure accessory
  • General Attributes
    • Product Or Component Type : door
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10175733&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 92.43257852
    • Environmental Disclosure : ENVPEP110923EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 57.68 in
    • Width : 19.69 in
    • Depth : 0.77 in
