Light cross rails, PanelSeT SFN, Spacial SF, Spacial SM, W600mm, set of 2

SPACIAL SF/SM LIGHT CROSS RAIL

SQDNSYSLCR60 NSYSLCR60 3606485132051
60.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Light cross rails, PanelSeT SFN, Spacial SF, Spacial SM, W600mm, set of 2-1
  • Country of Origin: Spain
  • Depth: 0.73 in
  • Height: 1.18 in
  • Material: Steel
  • Surface Finish: Zinc Coated
  • Warranty Length: 18 mth
  • Width: 23.62 in

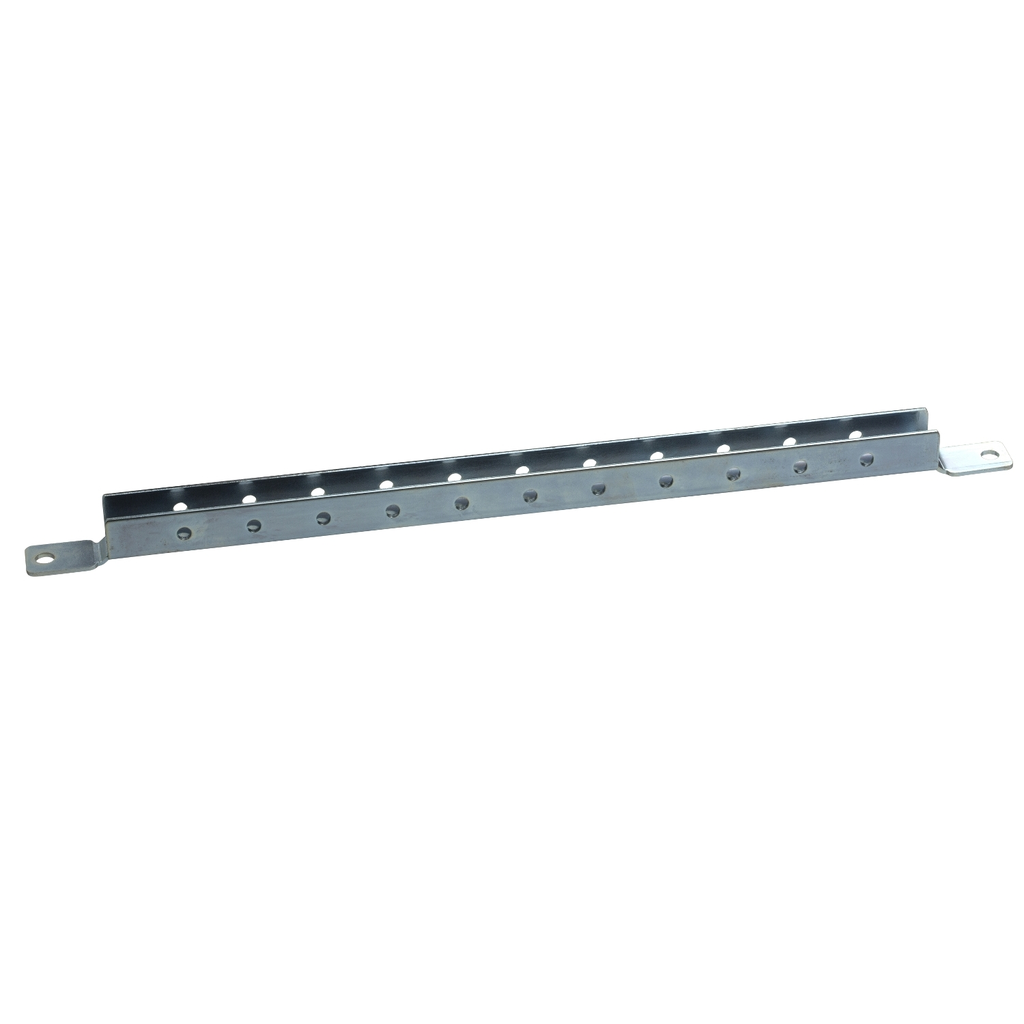

Spacial SF/SM light cross rails. 599 x 600 mm. Equipped with a row of 5.2 mm drillings on a 25 mm pitch. Allows fixation with M6 self-tapping screws. In zinc-plated steel, thickness 2 mm. For enclosures D600 mm. 2 cross rails.
QTY
  • Product Description
  • Features
  • Specifications
Spacial SF/SM light cross rails. 599 x 600 mm. Equipped with a row of 5.2 mm drillings on a 25 mm pitch. Allows fixation with M6 self-tapping screws. In zinc-plated steel, thickness 2 mm. For enclosures D600 mm. 2 cross rails.
  • Mounting Support
    • adaptation profile, on SM enclosures
  • Range Compatibility
    • PanelSeT PanelSeT SF
    • PanelSeT PanelSeT SM
    • PanelSeT PanelSeT SFX
  • Carbon Footprint Of The Installation Phase A5
    • 0.184039214
    • 0.2 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.951203511
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 4 kg CO2 eq.
    • 3.606448326
  • Fixing Mode
    • by screws M6 self tapping
  • Mounting Location
    • on structure of enclosure
    • between cross rails
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • fixing elements
    • 2 cross rails
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 0.159773577
    • 0.2 kg CO2 eq.
  • Enclosure Nominal Dimensions
    • - W: 600 mm
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • ETIM 10 : EC002620
    • Manufacturing Carbon Footprint : 3.606448326
    • Distribution Carbon Footprint : 0.159773577
    • Installation Carbon Footprint : 0.184039214
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 1.951203511
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1916
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Adjustment : adjustable with a pitch of 25 mm
    • Coverage : Core product
    • Device Application : multi-purpose
    • Energy Efficiency Optimized : False
    • Material : steel
    • Number Of Horizontal Rows : 1
    • Package Weight Lbs : 830.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : light cross rail
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : No
    • Surface Finish : zinc coated
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 5.901464629
    • Accessory Separate Part Category : mounting accessory
  • General Attributes
    • Product Or Component Type : light cross rail
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10175995&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 5.901464629
    • Environmental Disclosure : ENVPEP110923EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 1.18 in
    • Width : 23.62 in
    • Depth : 0.73 in
