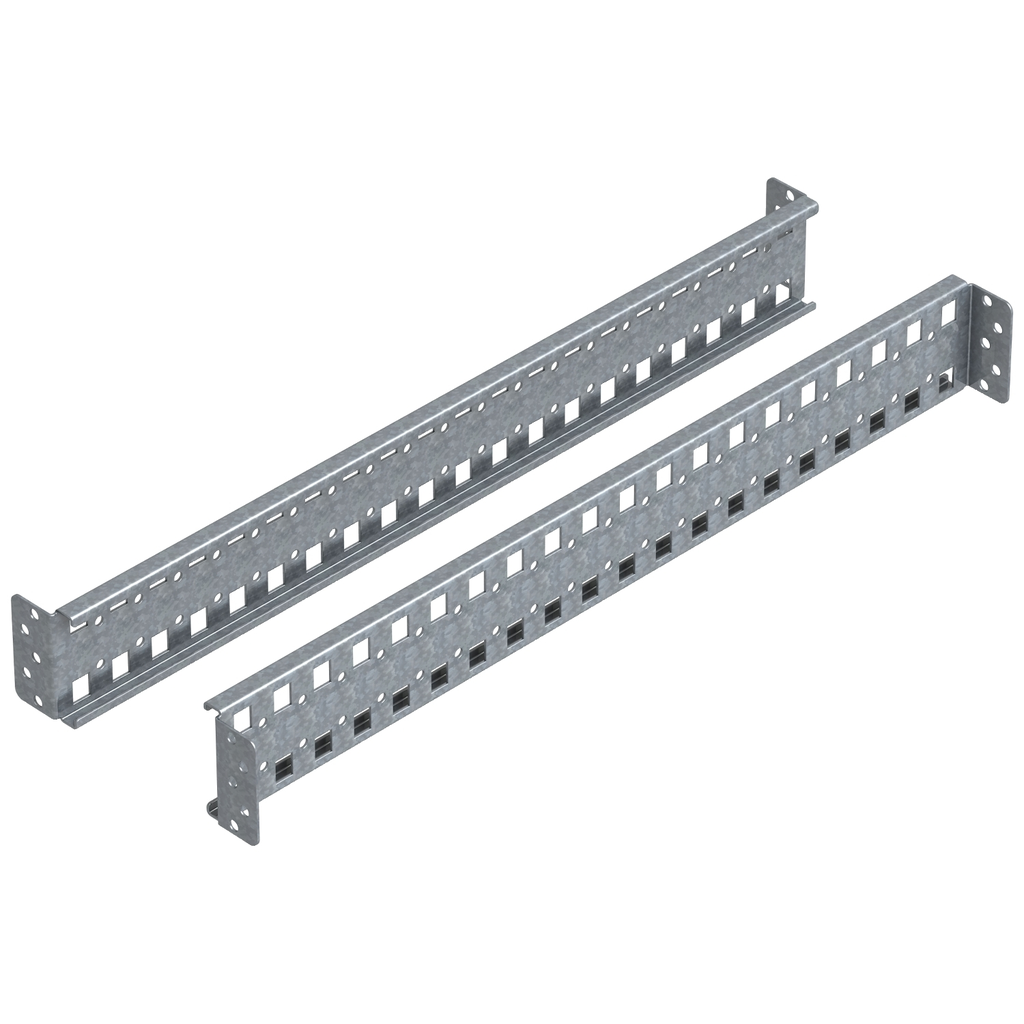

This set of two integrated cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 65 mm and a nominal length of 65 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

• Range Compatibility
• PanelSeT PanelSeT SF suitable enclosure
• PanelSeT PanelSeT SM compact enclosure
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• fixing elements
• 2 cross rails
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=NSYSICR6580_3D-CAD
• Complementary Attributes
• Maximum Load : 70 kg
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2119
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Enclosure Nominal Dimensions : -
• Fixing Mode : by screws
• Material : galvanised steel
• Mounting Support : upright
• Number Of Horizontal Rows : 1
• Package Weight Lbs : 1.460 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : cross rail
• Product Specific Application : 30 mm additional space on each fixation side (a total of 60 mm)
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : cross rail
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=496321952&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 2.56 in
• Width : 27.91 in
• Depth : 0.47 in
