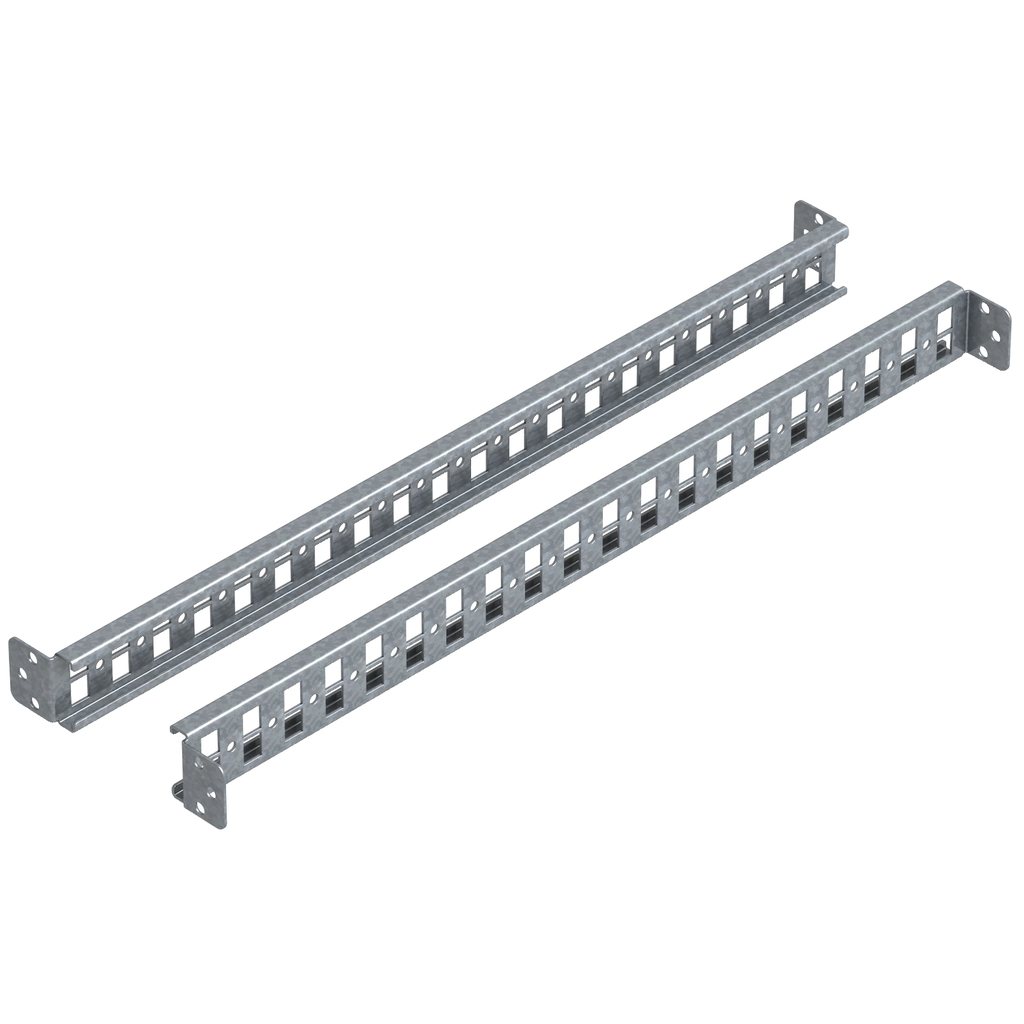

Integrated cross rails, PanelSeT SFN, Spacial SF, H40 W500mm, set of 2

Spacial SF/SM integrated cross

SQDNSYSICR4050 NSYSICR4050 3606481327673
100.50 / EA
http://schema.org/OutOfStock
Integrated cross rails, PanelSeT SFN, Spacial SF, H40 W500mm, set of 2
  • Country of Origin: France
  • Depth: 12 mm
  • Height: 40 mm
  • Thickness: 1.5 mm
  • Warranty Length: 18 mth
  • Width: 409 mm, 500 mm
This set of two integrated cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.
QTY
  • Product Description
  • Specifications
This set of two integrated cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.
  • Complementary
    • Adjustment : adjustable with a pitch of 25 mm
    • Number Of Horizontal Rows : 1
    • Maximum Load : 60 kg
    • Range Compatibility : PanelSeT PanelSeT SF suitable enclosure || PanelSeT PanelSeT SM compact enclosure
    • Thickness : 1.5 mm
    • Device Composition : fixing elements || 2 cross rails
    • Depth : 12 mm
    • Fixing Mode : by screws
    • Mounting Location : on structure of enclosure
    • Width : nominal: 500 mm || useful: 409 mm
    • Height : 40 mm
    • Mounting Support : upright
    • Material : galvanised steel
    • Quantity Per Set : set of 1
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Country of Origin : France
    • Enclosure Nominal Dimensions : -
    • Accessory / Separate Part Category : mounting accessory
    • Product Or Component Type : cross rail
    • Range : PanelSeT
    • Product Specific Application : 30 mm additional space on each fixation side (a total of 60 mm)
    • Device Application : multi-purpose
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
