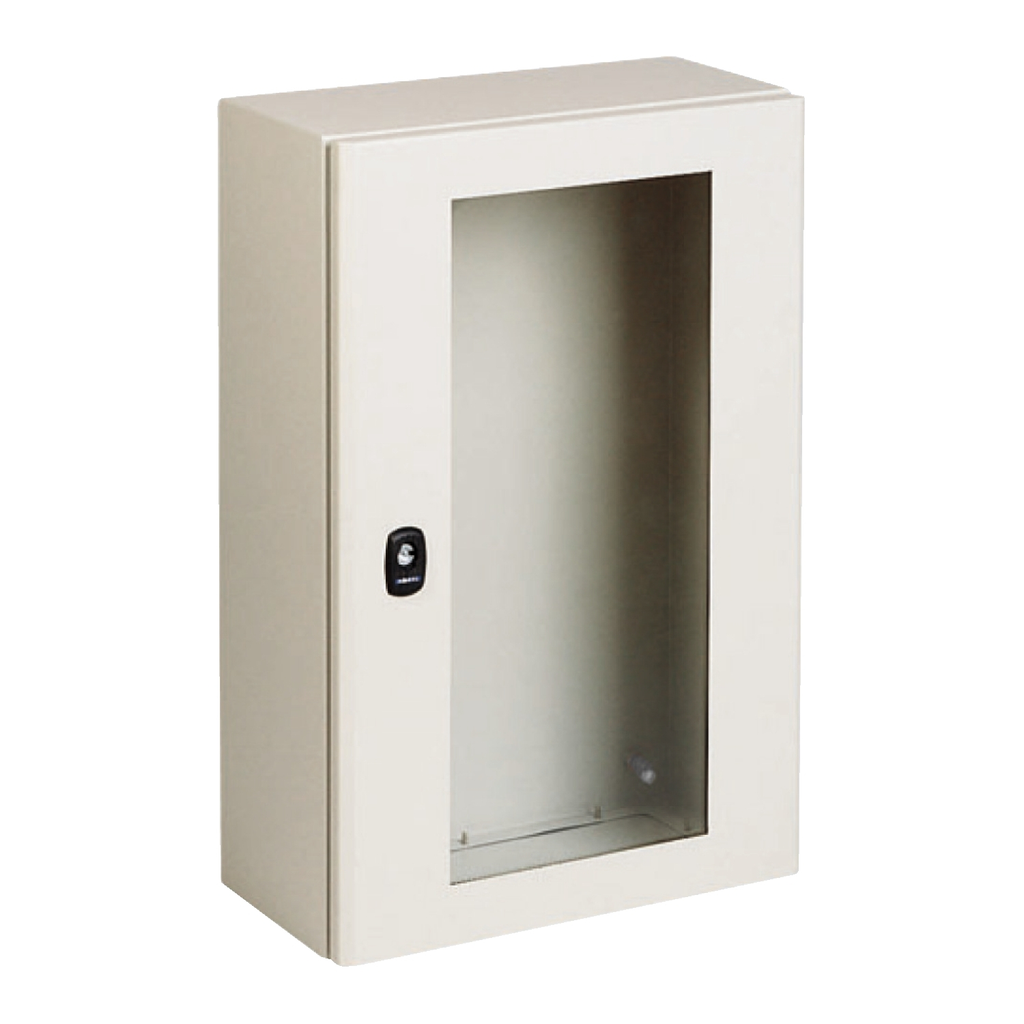

Spacial S3D wall mounted steel enclosure with glazed door. 800 x 600 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-pol

• IP Degree Of Protection
• IP66 IEC 60529
• Carbon Footprint Of The Installation Phase A5
• 4.176761350689863
• 4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 50 kg CO2 eq.
• 49.944108017363924
• Standards
• IEC 62208
• UL
• cUL
• Material
• body steel
• door steel and security glass
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 104 kg CO2 eq.
• 103.5110576359033
• Number Of Doors
• front face 1
• Removable Parts
• door by hinges
• cable gland plate by screws
• Accessories
• NSYAEFPFSC
• NSYAEFAHLBSC
• NSYEL166D8
• NSYTJ6030
• NSYAELYTCRG8
• NSYSFPSC60
• NSYSPF6200
• NSYAEDH120S3D
• NSYAEDL1242S3D
• NSYMR86
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 body
• 1 door
• 1 lock
• 1 cable gland plate
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Variant Particularity
• gutter-shaped front rail double sheet thickness
• single piece body
• Carbon Footprint Of The Distribution Phase A4
• 42.08884089260421
• 42 kg CO2 eq.
• Door Opening Side
• reversible 120 °)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3D8630T_3D-CAD
• Physical Attributes
• Enclosure Nominal Height : 800 mm
• Enclosure Nominal Width : 600 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Manufacturing Carbon Footprint : 103.511057635903
• Distribution Carbon Footprint : 42.0888408926042
• Installation Carbon Footprint : 4.17676135068986
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 49.9441080173639
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Coverage : Core product
• Energy Efficiency Optimized : False
• Installation Accessory Type : wall-mounting
• Package Weight Lbs : 21.200 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 200 kg CO2 eq.
• Type Of Gland Plate : standard
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 199.7207678965613
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP100104EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 21200
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : France, FR
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Recyclability Potential In : 98
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.8308040501403547
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.46893668112419945
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.1728500482018304
• Acidification Ap Mole Of H Equiv Installation A5 : 0.012208076263819652
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.17680924455050515
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.4049701511390408
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 1.4661416488966372
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 1.256472927996803
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.19789740311043835
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.011771317789395903
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.6329561596531997
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 198.2546262398596
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 102.25458470790652
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 42.08884089260421
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 3.978863947579424
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 49.932336691769464
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -69.09655186539466
• Climate Change Total Kg Co2 Eq Total Life Cycle : 199.7207678965613
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 103.5110576359033
• Climate Change Total Kg Co2 Eq Distribution A4 : 42.08884089260421
• Climate Change Total Kg Co2 Eq Installation A5 : 4.176761350689863
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 49.944108017363924
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -69.72950802504786
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0003513383331109571
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00034930509691407865
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000360053964119
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000001024988117152
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000192713684552205
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.020405940831823764
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 8468.514769844984
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 4368.502643382649
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 521.1876011932583
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 41.32520836973792
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3537.499316899339
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1541.143709412699
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1601.6562961936593
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1327.9959519244085
• Ecotoxicity Fresh Water Ctue Distribution A4 : 171.66393583211644
• Ecotoxicity Fresh Water Ctue Installation A5 : 47.15853466219022
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 54.837873774943894
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1194.46334513979
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000405545188382453
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000256904210324941
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000004759037337597
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000007332078027687
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000093718526653854
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00003601660994324798
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.36148854741415165
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.026048632832395394
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.17040304874146528
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.16503686584029098
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00030626080457201875
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0001602034279822937
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000490478526256859
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00009556815200191898
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00004558443932523745
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0001609739849672516
• Hazardous Waste Disposed Of Kg Total Life Cycle : 3.674228380815985
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.535254040487046
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.034703956073185126
• Hazardous Waste Disposed Of Kg Installation A5 : 0.10399683529934434
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00027354895640942814
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1610.809970264046
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000297421367966551
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000249748819408541
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000061693974768
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000004714441346037
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000466441122872
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00023696169534916139
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000291660526640676
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000175143516442181
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000009728922680414
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000001727947710085
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000105060139807997
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000386808471829804
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.19157384321703252
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.16765259565059104
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.011403358920953123
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.012517888645488374
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.0399331835569975
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2.659711425197471
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.918329761388025
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.09286885025963908
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.6373479012089512
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.011164912340856061
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -13.311511672859009
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.22018392471259204
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.09884647792612608
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.07865235205783197
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.005309738836893438
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.03737535589174054
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.04387278499307777
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 19.190808240990012
• Materials For Recycling Kg Manufacturing A1 A3 : 2.505125407302981
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 16.685682833687032
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 1.3180294657613605
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.8398568331374314
• Net Use Of Fresh Water M3 Distribution A4 : 0.04947890422965365
• Net Use Of Fresh Water M3 Installation A5 : 0.007499126359964226
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.4211946020343112
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.6493435243971428
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 11.851940494276135
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 9.39811890588809
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.04263330319674057
• Non Hazardous Waste Disposed Of Kg Installation A5 : 1.784915094748896
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.6262731904424076
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -55.209207260156475
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00003743297921002077
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000040786171598024
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00003696396355312662
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000005403597807045
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000711796284345
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000971697582376616
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.7556948764320583
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.32456388802806135
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.28441378004623424
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.008466839418528552
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.13825036893923423
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.16625377133609762
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.014340243046499323
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.005681450814648162
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.008327991021846505
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00022060808430647905
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00011019312569817776
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.024929888541010435
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 2.3492522158037072
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 1.0516575573464244
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.8531438724211783
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.03693635481188144
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.4075144312242229
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.4903105781907437
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.8664964409405407
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.8664964409405407
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 8558.524136165484
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 4453.006241595611
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 521.1910086291344
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 46.74512253978489
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3537.5817634009554
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1597.393462069026
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 90.00936632050188
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 84.50359821296213
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.003407435876143908
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.4199141700469715
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.08244650161663984
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -56.24975265632712
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.8664964409405407
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.8664964409405407
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8465.648273404042
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4365.636146941707
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 521.1876011932583
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 41.32520836973792
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3537.499316899339
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1541.143709412699
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 80.70660473844711
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 80.70660473844711
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -57.656909681632655
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9.302761582054789
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.7969934745150318
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.003407435876143908
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.4199141700469715
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.08244650161663984
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 1.4071570253055357
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 56.60834630748925
• Water Use M3 Eq Manufacturing A1 A3 : 36.070926351377466
• Water Use M3 Eq Distribution A4 : 2.125118936663625
• Water Use M3 Eq Installation A5 : 0.3219928620744866
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 18.09030815737367
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -27.88619364802711
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : compact enclosure
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10176548&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 199.720767896561
• Environmental Disclosure : ENVPEP100104EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP100104EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
