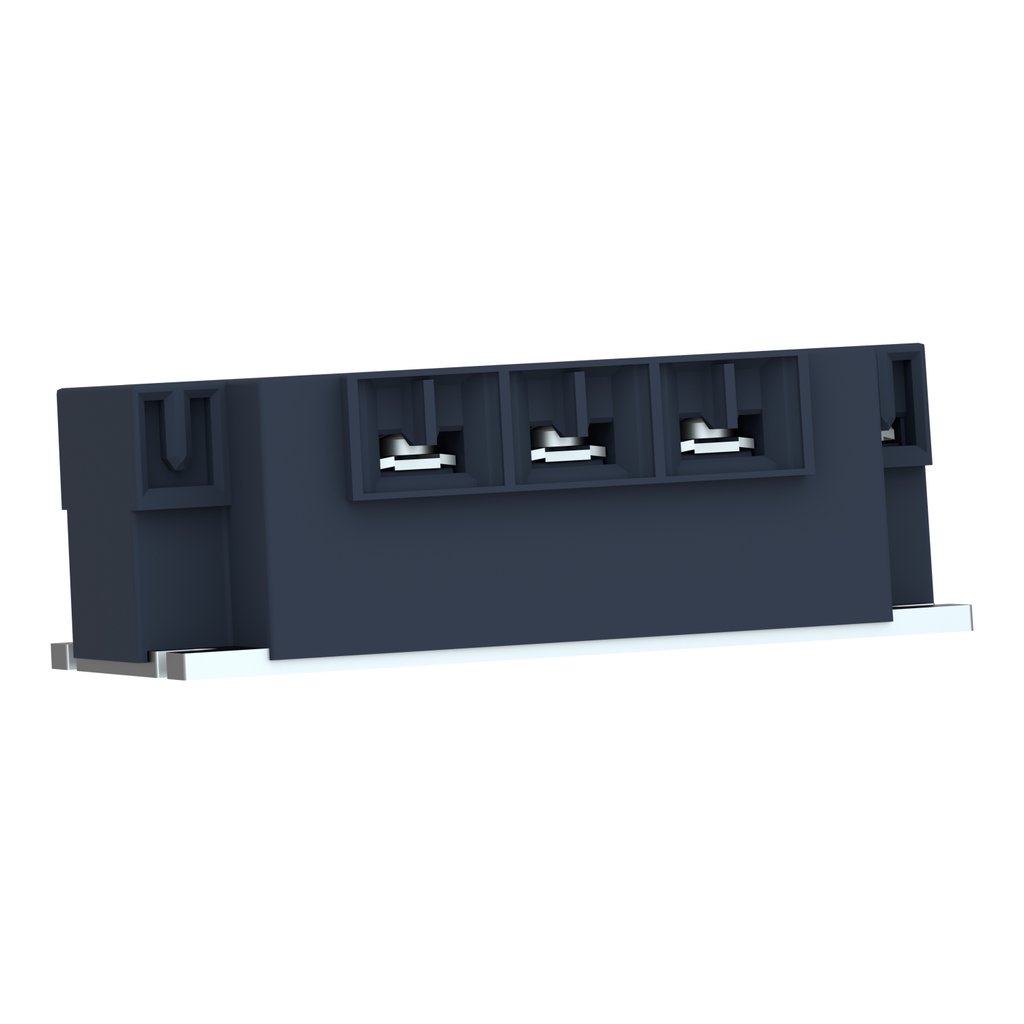

This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25 A, is controlled with a 4 to 32 V DC circuit, has a rated load voltage of 48 to 530 V AC output. It also has a test bu

• Uc Control Circuit Voltage
• 4...32 V DC
• Insulation Resistance
• >= 1000 MOhm at 500 V DC
• Connections Terminals
• screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input
• screw
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Response Time
• 8.33 ms (turn-on)
• 8.33 ms (turn-off)
• Carbon Footprint Of The Installation Phase A5
• 0.002229524
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.058345336
• Standards
• IEC 60950-1
• IEC 62314
• IEC 61000
• Maximum Leakage Current
• 3 mA off-state
• Maximum Switching Voltage
• 1 V DC turn-off
• Minimum Switching Voltage
• 4 V DC turn-on
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 1.4288421443
• Dv Dt
• 500 V/µs off-state at maximum voltage
• Accessories
• SSRHP02
• SSRHP05
• SSRHP10
• SSRHD10
• Maximum Horse Power Rating
• 0.75 hp 40 °C 120 V AC
• 1 hp 40 °C 240 V AC
• 3 hp 40 °C 480 V AC
• 4.
• Maximum I T For Fusing
• 380 A².s for 10 ms at 50 Hz
• 370 A².s for 8.3 ms at 60 Hz
• Flame Retardance
• V0 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 2 601 kg CO2 eq.
• 2600.9342430238
• Dielectric Strength
• 4 kV AC for input/output
• 4 kV AC for input or output to case
• Carbon Footprint Of The Distribution Phase A4
• 0.0349648913
• 0 kg CO2 eq.
• Tightening Torque
• 0.9...1.1 N.m for input
• 1.7...2.2 N.m for output
• Motor Power Kw
• 0.56 kW 40-40 °C 120 V AC
• 0.74 kW 40-40 °C 240 V AC
• 2.22 kW 40-40 °C 480 V AC
• 2.22 kW 40-40 °C 480
• Cos Phi
• 0.5-0.5 (with maximum load)
• Local Signalling
• LED, green input
• Maximum Voltage Drop
• <1.35 V on-state
• Surge Current
• 275 A 20 ms
• 300 A 16.6 ms
• 85 A 1 s
• Product Certifications
• CSA
• UL
• Output Voltage
• 48...530 V AC

• Complementary Attributes
• Absolute Maximum Voltage : 1200 V
• Line Rated Current : 25 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Etim 10 : EC002055
• Manufacturing Carbon Footprint : 1.4288421443
• Distribution Carbon Footprint : 0.0349648913
• Installation Carbon Footprint : 0.002229524
• Use Carbon Footprint : 2600.9342430238
• End Of Life Carbon Footprint : 0.058345336
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1505006EN
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Control Type : without test button
• Device Short Name : SSP
• Load Current : 0.1-25 A
• Marking : CE
• Mounting Support : panel
• Overvoltage Category : III
• Package Weight Lbs : 276.000 g
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : solid state relay up to 30 A
• Range Of Product : Harmony Solid State Relays
• Returnability : Yes
• Sustainable Packaging : Yes
• Thermal Resistance : 0.24 °C/W
• Total Lifecycle Carbon Footprint : 2 602 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2602.4586249193
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : solid state relay up to 30 A
• Range Of Product : Harmony Solid State Relays
• ETIM
• ETIM 8 : EC002055
• ETIM 9 : EC002055
• Output Attributes
• Output Switching Mode : zero voltage switching
• Solid State Output Type : zero voltage switching
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2602.4586249193
• Ambient Air Temperature For Operation : -40-80 °C
• Ambient Air Temperature For Storage : -40-125 °C
• Circularity Profile : ENVEOLI1505006EN
• Environmental Disclosure : ENVPEP1505006EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Input Attributes
• Input Current Limits : 24-35 mA
• Specifications
• Country of Origin : Mexico
• Height : 3.14 in
• Width : 3.99 in
• Depth : 1.39 in
• Overview Attributes
• Device Presentation : complete product
