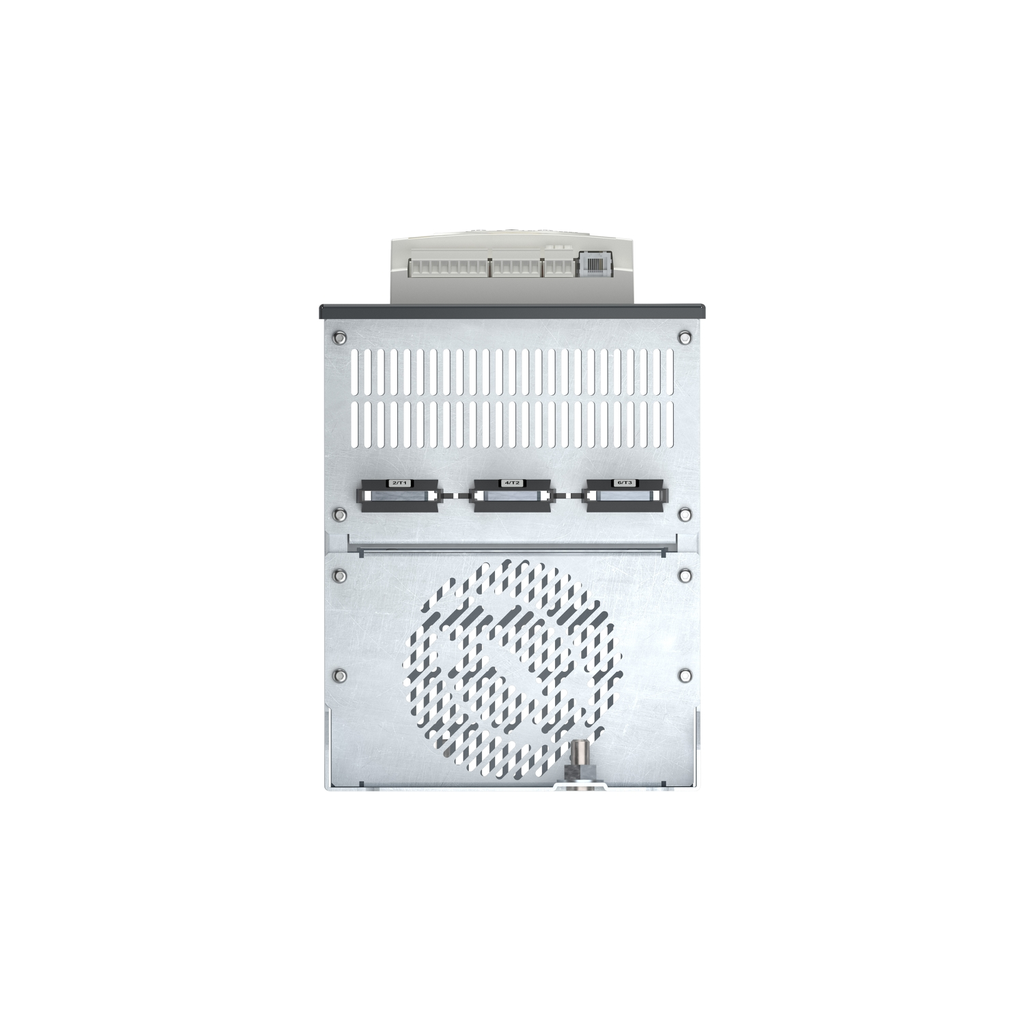

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 320A, a rated power from 100HP to300HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

• US Rated Supply Voltage
• 208...600 V - 15...10 %
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000845_3D-CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C32S6U_2D&p_File_name=ATS22C32S6U_2D.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C32S6U_2D&p_File_name=ATS22C32S6U_2D.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Discrete Input Type
• LI1, LI2, LI3) logic, 5 mA 20 kOhm
• UC Control Circuit Voltage
• 110 V - 15...10 % 50/60 Hz
• Maximum Switching Current
• 5 A 250 V AC resistive 1 relay outputs
• 5 A 30 V DC resistive 1 relay outputs
• 2 A 250 V AC inductive 0.4 20 ms relay outputs
• 2 A 30 V DC inductive 7 ms relay outputs
• Protection Type
• phase failure line
• thermal protection motor
• thermal protection starter
• Discrete Input Voltage
• 110 V <= 121 V
• Maximum Horse Power Rating
• 100 hp 208 V
• 125 hp 230 V
• 250 hp 460 V
• 300 hp 575 V
• Vibration Resistance
• 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
• 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
• Electromagnetic Compatibility
• conducted and radiated emissions level A conforming to IEC 60947-4-2
• damped oscillating waves level 3 conforming to IEC 61000-4-12
• electrostatic discharge level 3 conforming to IEC 61000-4-2
• immunity to electrical transients level 4 conforming to IEC 61000-4-4
• immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
• voltage/current impulse level 3 conforming to IEC 61000-4-5
• Supply Frequency
• 50...60 Hz - 10...10 %
• Relative Humidity
• 0-95 % without condensation or dripping water IEC 60068-2-3
• Minimum Switching Current
• 100 mA 12 V DC relay outputs)
• Operating Altitude
• <= 3280.84 ft (1000 m) without derating
• > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
• Discrete Input Logic
• positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
• ICL Starter Rating
• 320 A connection in the motor supply line for standard applications
• Output Current
• 0.4...1 Icl adjustable
• Discrete Output Type
• relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
• relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Power Dissipation In W
• 150 W for standard applications
• Ambient Air Temperature For Operation
• -10-40 °C (without derating)
• 40-60 °C (with current derating 2.2 % per °C)

• Communications & Management Attributes
• Communication Data Link : serial
• Complementary Attributes
• Control Circuit Consumption : 20 W
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• HTML Description : Altistart 22 Soft Start (ATS22)For Asynchronous MotorlcL Starter Rating: 320A.US Rated Supply Voltage: 208...600 V - 15...10 %.Control circuit voltage[Uc] : 110 V -15...10 % 50/60 Hz.Motor Power HP: 100 hp 208 V, 125 hp 230 V, 250 hp 460 V, 300 hp 575 V..Integrated BypassAssembly Style: with Heat Sink.
• Manufacturer : Schneider Electric
• Device Type : Soft starter - Soft starter
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 10 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1923
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Assembly Style : with heat sink
• Component Name : ATS22
• Control Circuit Consumption : 20 W
• Factory Setting Current : 302 A
• Package Weight Lbs : 24.500 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : soft starter
• Product Specific Application : pumps and fans
• Range Of Product : Altistart 22
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Accessories : LA9F703
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : soft starter
• Range Of Product : Altistart 22
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=20748165&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP00
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : China
