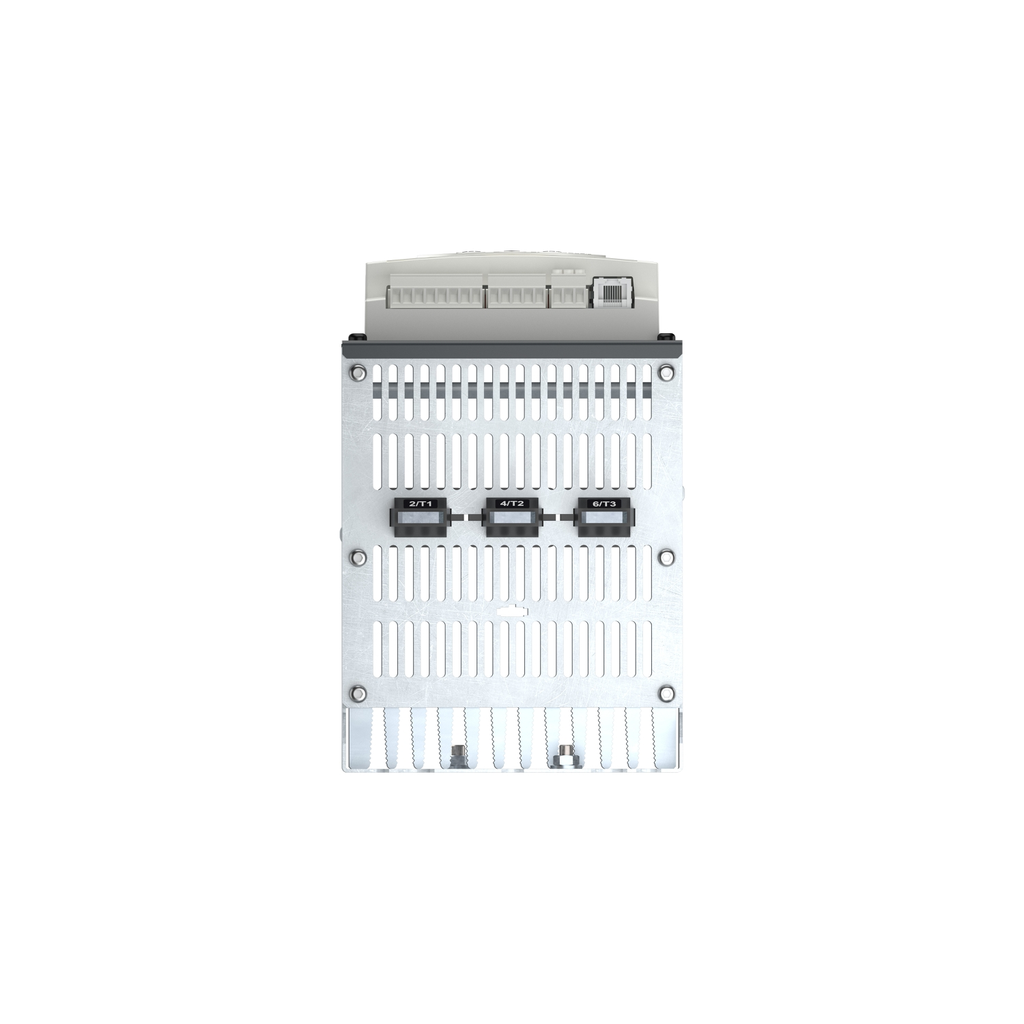

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 110A, a rated power from 30HP to 100HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as cent

• US Rated Supply Voltage
• 208...600 V - 15...10 %
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000844_3D-CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C11S6U_2D&p_File_name=ATS22C11S6U_2D.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C11S6U_2D&p_
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Discrete Input Type
• LI1, LI2, LI3) logic, 5 mA 20 kOhm
• UC Control Circuit Voltage
• 110 V - 15...10 % 50/60 Hz
• Maximum Switching Current
• 5 A 250 V AC resistive 1 relay outputs
• 5 A 30 V DC resistiv
• Protection Type
• phase failure line
• thermal protection motor
• thermal protection starter
• Discrete Input Voltage
• 110 V <= 121 V
• Maximum Horse Power Rating
• 100 hp 575 V
• 30 hp 208 V
• 40 hp 230 V
• 75 hp 460 V
• Vibration Resistance
• 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
• 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
• 1.5 mm (f= 2-1
• Electromagnetic Compatibility
• conducted and radiated emissions level A conforming to IEC 60947-4-2
• damped oscillating waves level 3 conforming to
• Supply Frequency
• 50...60 Hz - 10...10 %
• Relative Humidity
• 0-95 % without condensation or dripping water IEC 60068-2-3
• Minimum Switching Current
• 100 mA 12 V DC relay outputs)
• Operating Altitude
• <= 3280.84 ft (1000 m) without derating
• > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
• > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % p
• Discrete Input Logic
• positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
• positive l
• ICL Starter Rating
• 110 A connection in the motor supply line for standard applications
• Output Current
• 0.4...1 Icl adjustable
• Discrete Output Type
• relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
• relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, rea
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Power Dissipation In W
• 73 W for standard applications
• Ambient Air Temperature For Operation
• -10-40 °C (without derating)
• 40-60 °C (with current derating 2.2 % per °C)

• Communications & Management Attributes
• Communication Data Link : serial
• Complementary Attributes
• Control Circuit Consumption : 20 W
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 8/18/2025
• HTML Description : Altistart 22 Soft Start (ATS22)For Asynchronous MotorlcL Starter Rating: 96AUS Rated Supply Voltage: 208-600VNetwork Number of Phases: Triple-phaseIntegrated BypassAssembly Style: with Heat Sink
• Manufacturer : Schneider Electric
• Device Type : Soft starter - Soft starter
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 10 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1923
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Assembly Style : with heat sink
• Component Name : ATS22
• Control Circuit Consumption : 20 W
• Factory Setting Current : 96 A
• Package Weight Lbs : 13.018 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : soft starter
• Product Specific Application : pumps and fans
• Range Of Product : Altistart 22
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Accessories : LA9F702
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : soft starter
• Range Of Product : Altistart 22
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=20748135&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
