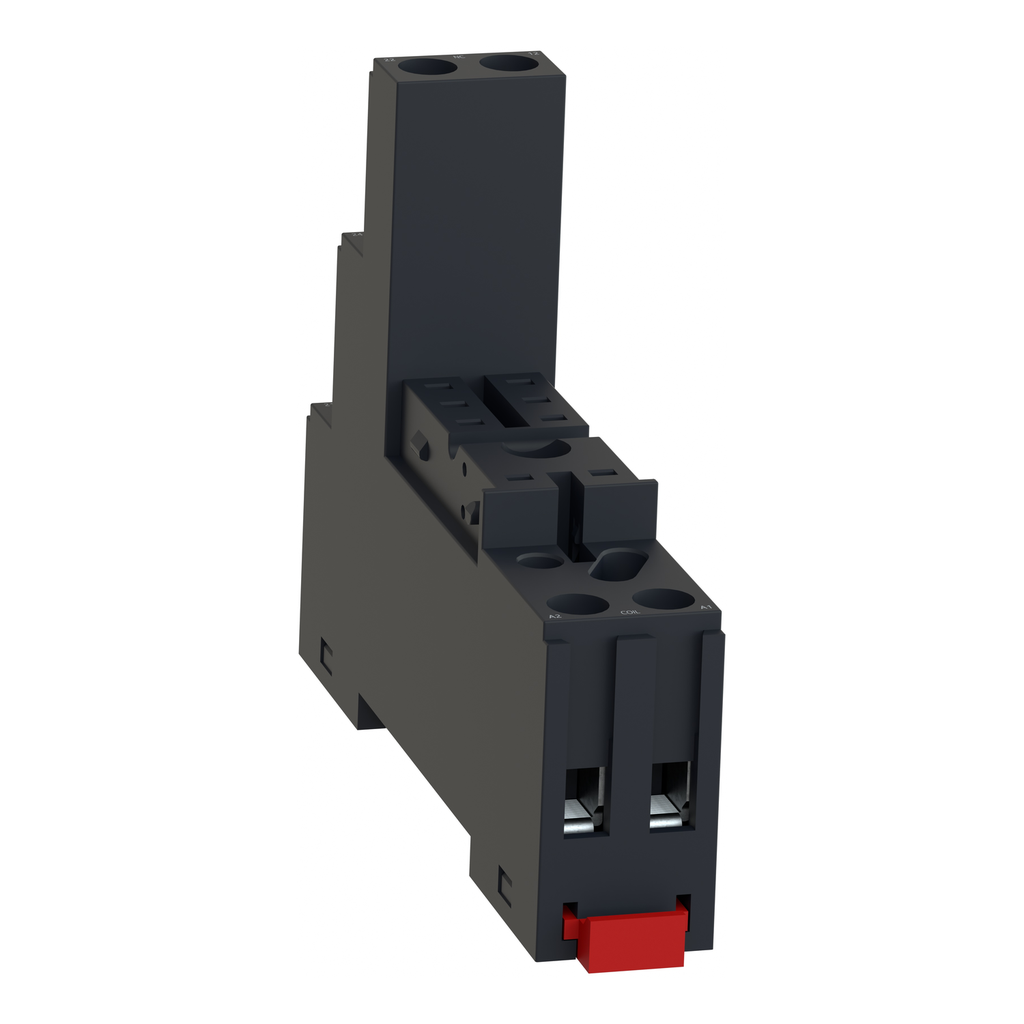

"This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 10A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : < 250 V AC, < 250 V AC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Fixing Mode : by screw (panel), clip-on (35 mm symmetrical DIN rail)
• Tightening Torque : < 0.8 N.m M3, < 0.8 N.m M3
• Carbon Footprint Of The Distribution Phase A4 : 0.0064511264, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0077089927
• Carbon Footprint Of The Installation Phase A5 : 0.0004519456, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.5181902811
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Connections Terminals : screw connectors, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, screw connectors, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw connectors, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : Zelio Socket RSZContact Terminal Arrangement: SeparateProduct Compatibility: Plug-in relay RSB (1 C/O), Plug-in relay RSB (2 C/O)Shape of Pin: FlatSale Per Indivisible Quantity: 10Conventional Free Air Thermal Current: 10ARated Operational Voltage: Fixing Mode: By screw mounting on panel, Clip-on mounting on 35 mm symmetrical DIN railConnections - Terminals: Screw connectorsDegree of Protection: IP20
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RSZ
• Contact Terminal Arrangement : separate
• Device Short Name : RSZ
• Group Of Product : RSB_1_C/O_SC_CONS_SEP_FLAT_16
• Package Weight Lbs : 39.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Shape Of Pin : flat
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• ITH Conventional Free Air Thermal Current : 10 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2502016EN
• Pep Verification Date : 2021-06-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : RGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 73.3mm x 50.2 mm x 16 mm according to IEC 61984
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : ZHEN YIN
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : plug-in relay RSB with 2 C/O contact at 8 A, plug-in relay RSB with 1 C/O contact at 16 A
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5328023459
• Environmental Disclosure : ENVPEP2502016EN
• IP Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2502016EN
• Pep Verification Date : 2021-06-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
