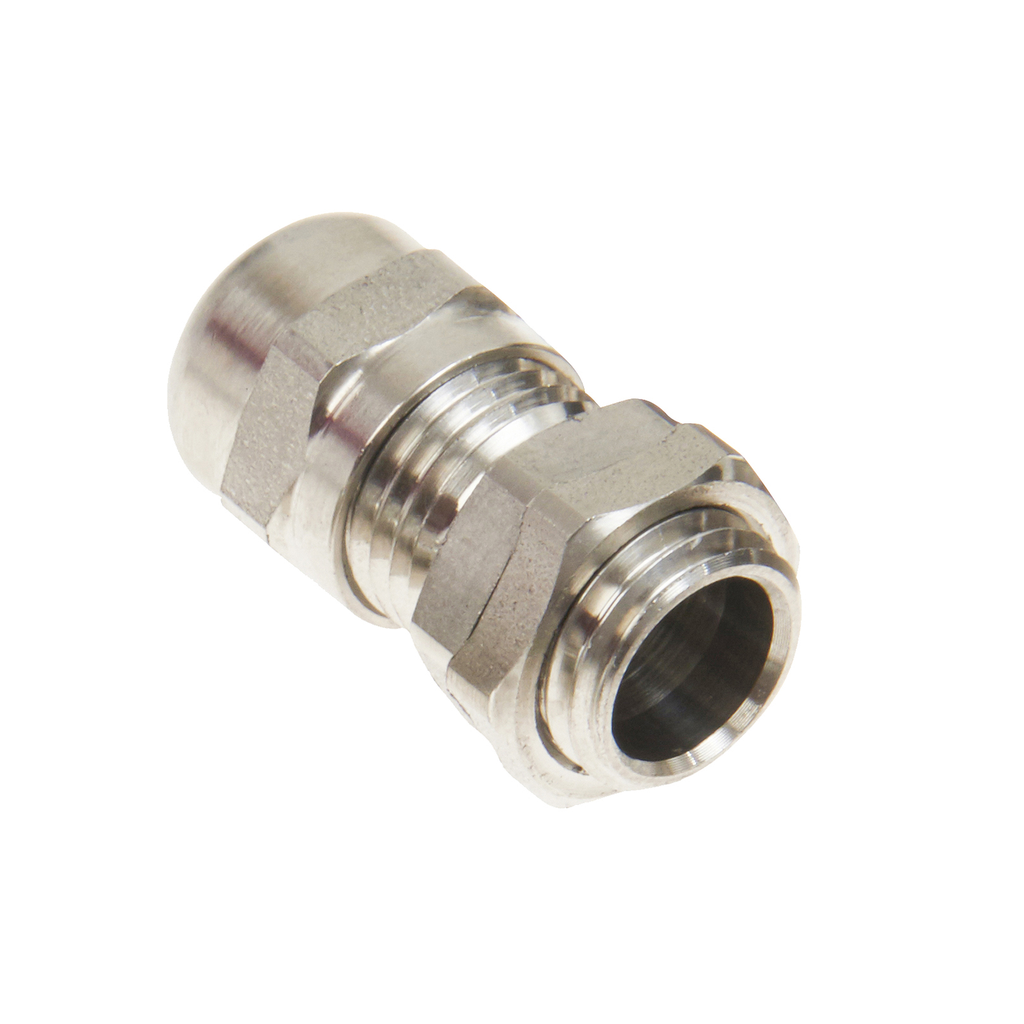

Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures. The product is made of CR (chloroprene) seal and stainless steel AISI 316L body. The height is 35.5mm. This gland has a thread size of M25 and allows you to mount a cable into a pre-drilled hole. The set contains 1 cable gland, 1 lock nut and 1 seal. The cable gland is to be mounted on enclosure top and enclosure bottom. Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments. Flame resistance V2 conforming to UL 94. Flame resistance V2 conforming to UL 94. Conforms with VDE certification.

• Physical Attributes
• Color : Gray
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Cable Entry : cable gland M25, cable gland M25
• Device Composition : 1 cable gland, 1 cable gland, 1 lock nut, 1 lock nut, 1 seal, 1 seal
• Fixing Mode : screwed, by nut
• Flame Retardance : V2 conforming to UL 94, V2 conforming to UL 94
• Material : seal CR (chloroprene), seal CR (chloroprene), body stainless steel AISI 316L, body stainless steel AISI 316L
• Range Compatibility : PanelSeT CRN, PanelSeT S3D, PanelSeT S3X
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 50.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : cable gland
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-100 °C permanent, -20-100 °C permanent, -40-150 °C intermittent, -40-150 °C intermittent
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP68 IEC 60529 5 bar, 30 min, IP68 IEC 60529 5 bar, 30 min, IP68 IEC 60529 5 bar, 30 min
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : cable gland
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 1.4 in
