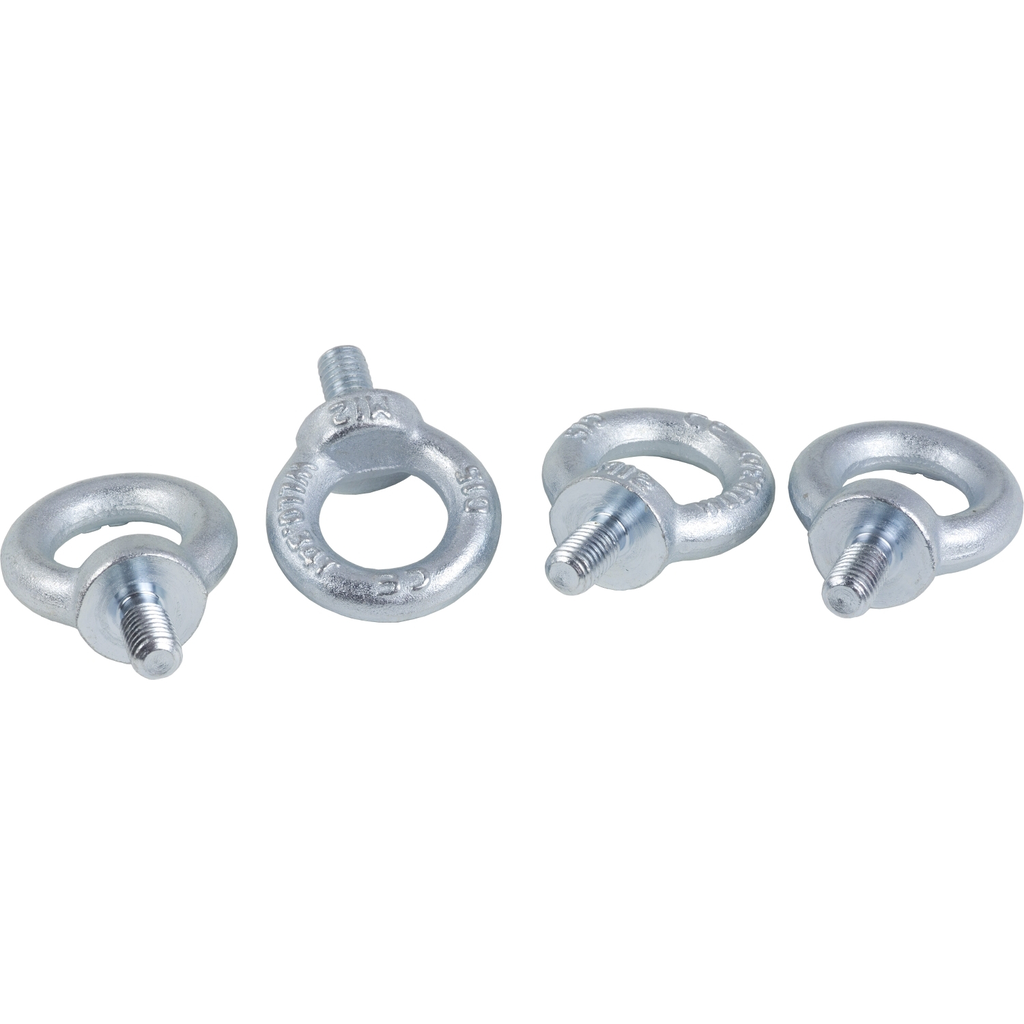

Lifting eyebolts, PanelSeT SFN, Spacial SF, steel , M12 , set of 4

SET OF2 EYE BOLTS TLN/12

SQDNSYSFEB NSYSFEB 3606485131542
17.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Lifting eyebolts, PanelSeT SFN, Spacial SF, steel , M12 , set of 4-1
  • Country of Origin: Spain
  • Depth: 24 mm
  • Diameter: 29 mm
  • Finish: Galvanized
  • Height: 62.5 mm
  • Warranty Length: 18 mth
  • Width: 55 mm
Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4.
QTY
  • Product Description
  • Specifications
Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4.
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110923EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 5 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5.481962926
  • Complementary
    • Iso Thread : M12
    • Surface Finish : galvanized
    • Depth : 24 mm
    • Fixing Mode : screwed
    • Permanent Permissible Load : 340 kg for 1 eyebolt vertical direction
    • Width : 55 mm
    • Height : 62.5 mm
    • Material : cast steel
    • Diameter : 29 mm
  • Overview
    • Lead Time : Usually Ships within 4 Weeks
  • Specifications
    • Country of Origin : Spain
    • Mounting Support : directly in the axis of the uprights
    • Range Compatibility : Prisma Prisma PH || PanelSeT PanelSeT SFHD || PanelSeT PanelSeT SFM
    • Accessory / Separate Part Category : lifting accessory
    • Product Or Component Type : lifting eye
    • Device Composition : 4 eyebolt
    • Range : PanelSeT
    • Mounting Location : enclosure top
    • Quantity Per Set : set of 1
    • Device Application : multi-purpose
