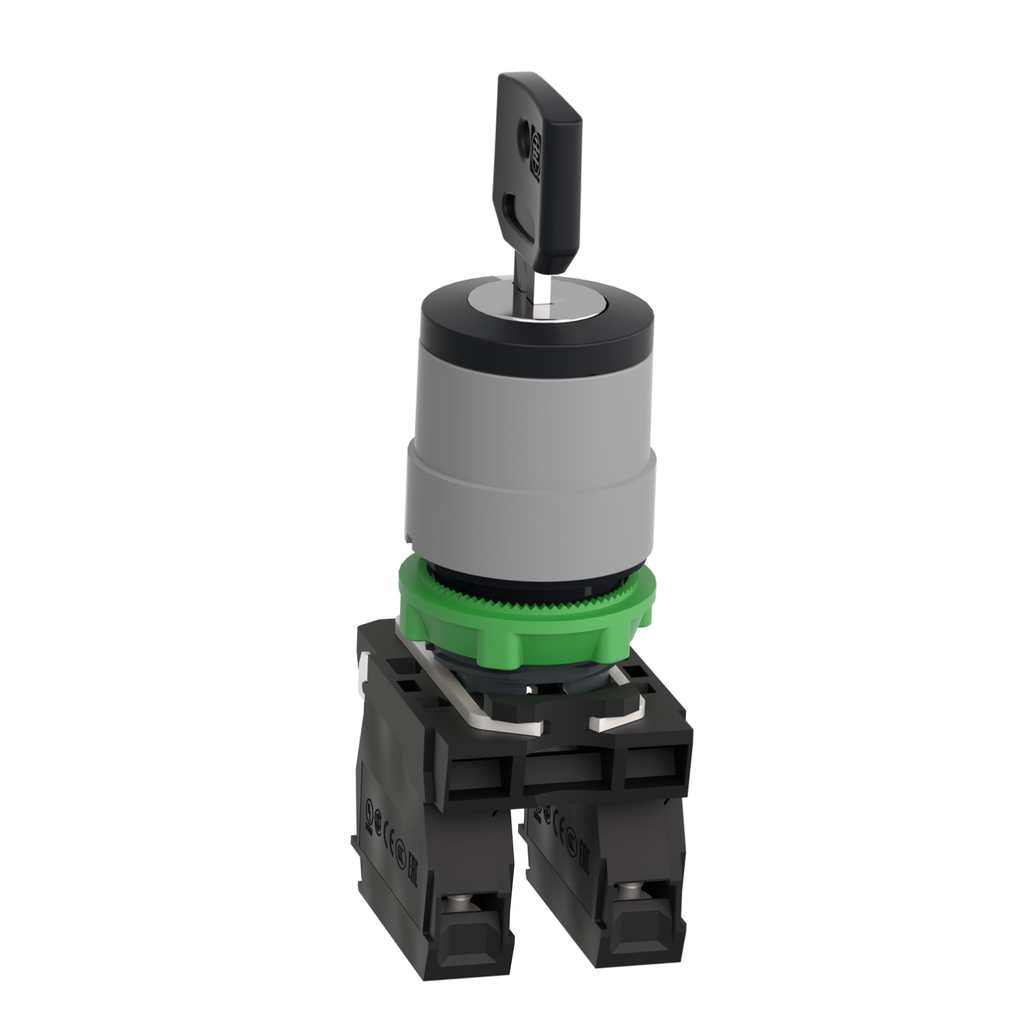

This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• IE Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• ITH Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=XB5AG33_NEW_2024
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MC
• IP Degree Of Protection
• IP66 IEC 60529
• IP67
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• JIS C8201-5-1
• IEC 60947-5-1
• IEC 60947-5-4
• IEC 60947-1
• CSA C22.2 No 14
• UL 508
• JIS C8201-1
• Electrical Shock Protection Class
• class II conforming to IEC 60536
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• UI Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Accessories
• ZBY2101
• ZB5AZ905
• Electrical Durability
• 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• 1000000 cycles, AC-15, 2 A 230 V 36
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Customizable
• no
• 1
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Torque Value
• 0.14 N.m NO changing electrical state
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Electrical Reliability
• λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V,
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 1/12/2024
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308009EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic colour plated grey
• Compatibility Code : XB5
• Contacts Usage : standard contacts
• Device Short Name : XB5
• GCR Bridge : XB5AGCUST01
• Head Type : standard
• Key Withdrawal Position : center
• Mounting Diameter : 22.5 mm
• Operator Position Information : 3 positions +/- 45°
• Operator Profile : key switch
• Package Weight Lbs : 92.000 g
• Positive Opening : without
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : selector switch
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (13-14)NO
• Type Of Keylock : key 455
• Type Of Operator : stay put
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2308009EN
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749095&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2308009EN
• Environmental Disclosure : ENVPEP2308009EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308009EN
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : complete product
