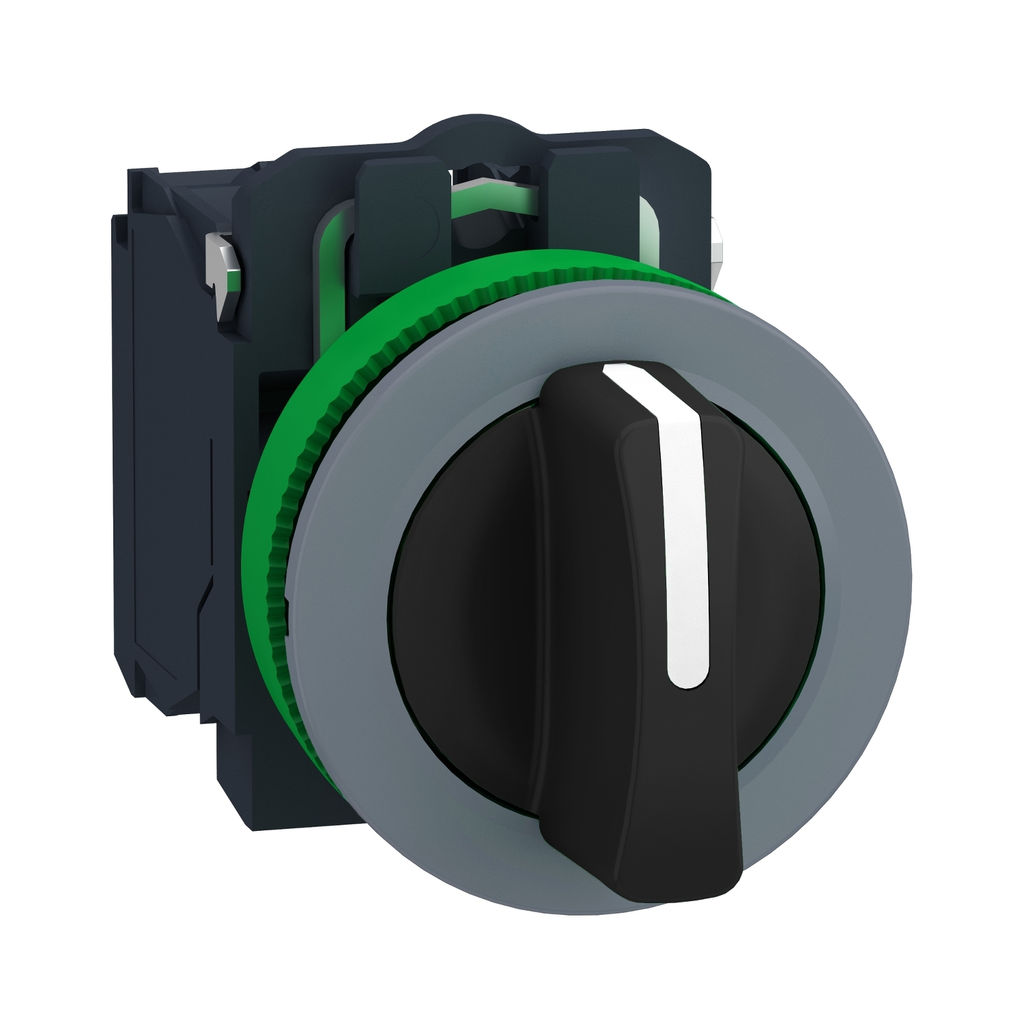

This flush mounted selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush

• Type Of Operator
• to centre spring return
• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• IE Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• ITH Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• IP Degree Of Protection
• IP66 IEC 60529
• IP67
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0152392411
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.1229098017
• Standards
• IEC 60947-1
• UL 508
• JIS C8201-5-1
• IEC 60947-5-4
• IEC 60947-5-1
• CSA C22.2 No 14
• JIS C8201-1
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.4485914859
• Electrical Shock Protection Class
• class II conforming to IEC 60536
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• UI Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Electrical Durability
• 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• 1000000 cycles, AC-15, 2 A 230 V 36
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.2 kg CO2 eq.
• 0.1517798165
• Terminals Description ISO N 1
• (13-14)NO
• (23-24)NO
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0077151804
• 0 kg CO2 eq.
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Operator Profile
• black standard handle, unmarked
• Electrical Reliability
• λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V,
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002184_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2/26/2025
• Manufacturing Carbon Footprint : 0.448591486
• Distribution Carbon Footprint : 0.00771518
• Installation Carbon Footprint : 0.015239241
• Use Carbon Footprint : 0.151779817
• End Of Life Carbon Footprint : 0.122909802
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308010EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Compatibility Code : XB5
• Contacts Usage : standard contacts
• Device Short Name : XB5F
• GCR Bridge : XB5FDCUST04
• Head Type : built-in-flush
• Mounting Diameter : 30.5 mm
• Operator Position Information : 3 positions +/- 45°
• Package Weight Lbs : 59.0 g
• Positive Opening : without
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : selector switch
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.7 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.746235526
• Relationship Type : Spare part relationship
• Pep Code : ENVPEP2308010EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 59
• Functional Unit Description : This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consum
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 0.252288
• Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Recyclability Potential In : 33
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.004473192
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.003154484
• Acidification Ap Mole Of H Equiv Distribution A4 : 4.96243E-05
• Acidification Ap Mole Of H Equiv Installation A5 : 6.04901E-05
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.000996422
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000212172
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.000671034
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.005209878
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.004386877
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000677386
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.00010133
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 4.42852E-05
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.000775097
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.741027096
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.444207081
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.00771518
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.014561901
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.151678899
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.122864036
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.117875516
• Climate Change Total Kg Co2 Eq Total Life Cycle : 0.746235526
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.448591486
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.00771518
• Climate Change Total Kg Co2 Eq Installation A5 : 0.015239241
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.151779817
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.122909802
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.118644389
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00038049
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000380482
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 3E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 5E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 5.1E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 1.9E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -2.93032E-05
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 13.70005028
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 7.008549753
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.10748658
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.158625772
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2.866697248
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3.558690931
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -2.34021068
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 193.0289292
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 190.0305625
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.005191905
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.103999193
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 2.25587156
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.633304012
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2.137740855
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000000054
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.000000046
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 4E-10
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 4E-10
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 6.1E-09
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000001
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.000000052
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 6.8416E-06
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 6.5577E-06
• Freshwater Eutrophication Kg P Eq Distribution A4 : 2.9E-09
• Freshwater Eutrophication Kg P Eq Installation A5 : 1.101E-07
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 1.463E-07
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 2.46E-08
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -3.408E-07
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1.822475895
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.766851283
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.000180145
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.003687431
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.051757036
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.299936393
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 2.557E-07
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.502E-07
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 5.4E-09
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -3.425E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.000000023
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.07E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 1E-10
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 9E-10
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.3E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -5.6E-09
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.014969747
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.010359645
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.001465229
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.003144873
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.999702658
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.918436812
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 1.87669E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.000714448
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.079563303
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.000969329
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.017742654
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.000751145
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.000549204
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 2.33042E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00001602
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.000109505
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 5.31117E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -7.81999E-05
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.024983696
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.008374214
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.016609482
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.007927858
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : -0.000509451
• Net Use Of Fresh Water M3 Distribution A4 : 6.813E-07
• Net Use Of Fresh Water M3 Installation A5 : 0.000151505
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.000138734
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.00814639
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.001220402
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.546292122
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.447932452
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00027046
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.049574902
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.02403578
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.024478529
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.267805703
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 9.49E-08
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 9.27E-08
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.000000001
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 7E-10
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 5E-10
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.000000018
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.002518361
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.001917788
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 6.45881E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 3.22853E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.000360936
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000142763
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.000283202
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.00016293
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000152219
• Radioactive Waste Disposed Of Kg Distribution A4 : 1.926E-07
• Radioactive Waste Disposed Of Kg Installation A5 : 6.6543E-06
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 2.7403E-06
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 1.1245E-06
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -4.38495E-05
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.008077081
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.005886545
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.000255678
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000120914
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.001382936
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000431008
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000842813
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.70005028
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.008549753
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.10748658
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.158625772
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2.866697248
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.558690931
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.34021068
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 14.35505259
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 7.209646592
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.107633032
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.170003258
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3.307431193
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3.560338515
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2.410690682
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.65496283
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.201069379
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000143441
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.011381147
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.440678899
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001689964
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.070481833
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.809092122
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.809092122
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 12.89099477
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.199494244
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.10748658
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.158625772
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2.866697248
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.558690931
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.34021068
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.166149741
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.166149741
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.132987527
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.488808512
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.034915061
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000143441
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.011381147
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.440678899
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001689964
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.06250844
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 3.06442E-05
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 3.06442E-05
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749180&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.746235526
• Circularity Profile : ENVEOLI2308010EN
• Environmental Disclosure : ENVPEP2308010EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308010EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : complete product
