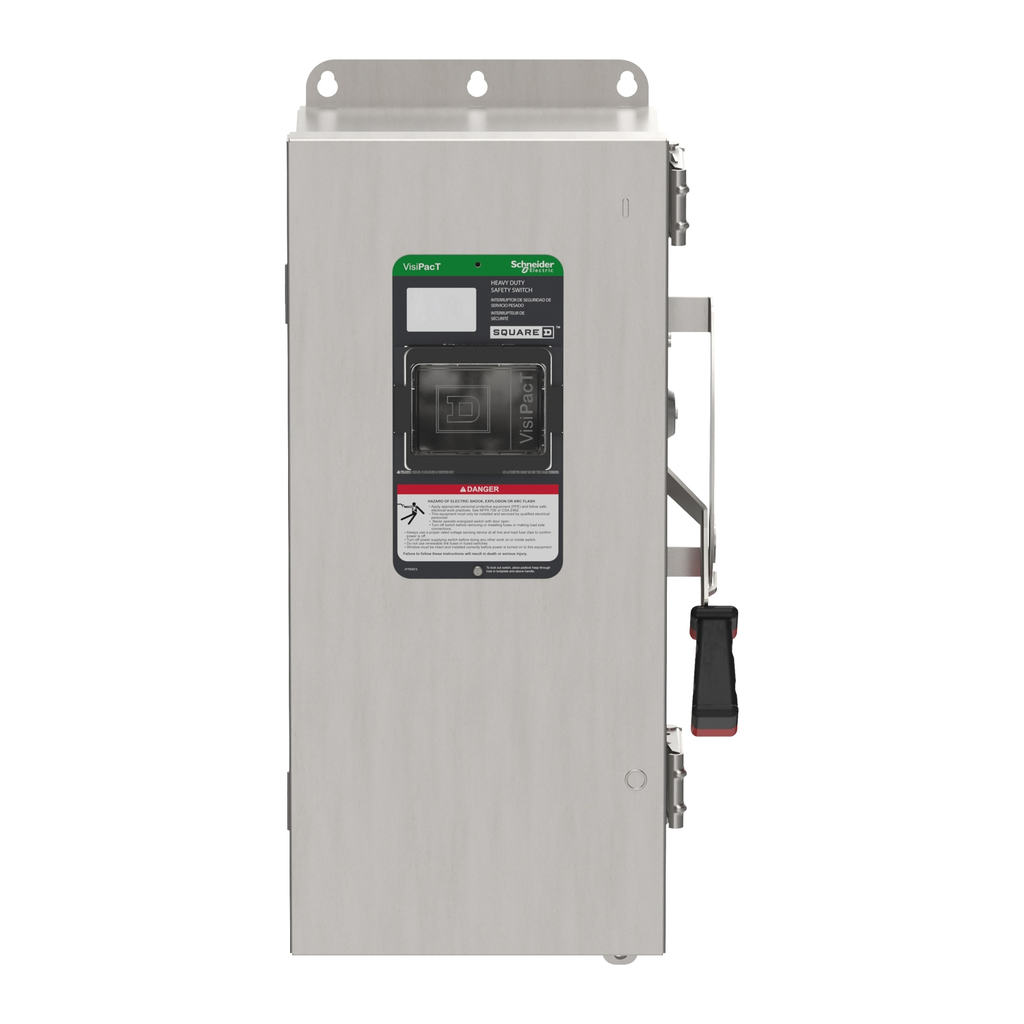

Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 100A, 3 pole, neutral installed, ground lugs

HDSS TYPE4X 600V 100A 3P UNFUS

SQDVHU363NDSGL VHU363NDSGL 3606485894737
3968.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 100A, 3 pole, neutral installed, ground lugs-2
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 4X rated with a stainless steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 4X rated with a stainless steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 600 V AC/DC, 600 V AC/DC
  • Environment Attributes Additional
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; US
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.5577061576794644
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.29332179909519523
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.013653178302422821
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0002541499059915454
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.15846341877197265
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.09201361160388219
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.46847484057009614
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C BLB SysBound D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.9460361893881395
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.8332126736107163
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.03302631019540508
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.07979720558201822
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.4134882080146623
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 121.99313695951669
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 63.13858651090411
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 3.14194694080141
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.37034662322675904
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 30.31399108821842
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 25.028265796365982
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -48.82848826202257
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 122.93826789020193
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 63.970941218892754
    • Climate Change Total Kg Co2 Eq Distribution A4 : 3.14194694080141
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.37034662322675904
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 30.34737347722995
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 25.107659630051046
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -49.24210452460769
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.002389636220822185
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0023081836325377168
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000002700670891
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000234147782086
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000131854872864034
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00008013142801091827
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb BLB SysBound D : -0.015083547854458677
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 5073.982513638304
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2637.5399877602968
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 38.151298177085266
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.4004906691129936
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 647.256704276019
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1750.6340327557905
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1076.0937774018003
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 1290.3893797243977
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 620.9238067024763
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 12.88485087966408
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.34065076833713365
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 350.9323644836885
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 305.3077068902316
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1057.385004657625
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000491465067724343
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000332980299566592
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000003705899269106
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.000000001548435866
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000108665239964026
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000045958785338019
    • Emission Of Fine Particles Incidence Of Diseases BLB SysBound D : -0.00002516528418675796
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.17991667149600513
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.17991667149600513
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.002969438372432288
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00009498063600143552
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000036790078093098
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000638569726511835
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00004819860600114456
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.002819505532383659
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00008134794643028627
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 148.00747424805445
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 137.0824176772053
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0026030933083066136
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00016694474350842836
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 10.922286532797338
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1210.6535200409476
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000205556076973824
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00002054251419315953
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.0000000000443299312
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000000390067027
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000354298422042
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000950228940097
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0001785208766779934
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000333794719084029
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000245903191653935
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000829832032951
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000047092068287
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000014583096639686
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000072431506689171
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000518121597537357
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 8.234202865049843
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.5181215975373569
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.4214526612705415
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 7.294628606241944
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 154.33441388838767
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 127.74852003639121
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0069659125238716625
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00116523256389886
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 26.277782070149584
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.2999806367591043
    • Ionizing Radiation Human Health Kbq Of U235 Equiv BLB SysBound D : -333.6333778759372
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.08685140968154313
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.045189177369555335
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.006274161734247876
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00014079600022053924
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.018901108658327174
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.016346165919192208
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.02951017576245863
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 9.128498109796599
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.32628304553154525
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 8.802215064265054
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.7693947243503966
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.48145957401471884
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0037112775610656373
    • Net Use Of Fresh Water M3 Installation A5 : 0.00009315585837238352
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.025037904504946414
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.25909281241129334
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.641809507144468
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 31.44398660997691
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 26.260150764189163
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0031979067880923387
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.35092074488800884
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 4.450150641811783
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.3795665522998639
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -40.77257523439717
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00001120205833303058
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000817718070585082
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000277263755959538
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000073729980034
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000012632174188537
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000012518102589867
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000756828122331452
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.33402965080690794
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.185461434396914
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.022291739625640263
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00035903940465515955
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.06255859700760355
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.06335884037209495
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.129347921621434
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.014915022513778924
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.01332535860204576
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0006246758056169481
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00001202432416617429
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0008643256888234802
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00008863809312656213
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.020272319049489375
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.9644285924838245
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.49094841768578934
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.06798673254851177
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0010581661375374295
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.22322525345433702
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.181210022657649
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.3434423579731571
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj TLC : 40.84300524815006
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Mfg A1 A3 : 40.84300524815006
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Dist A4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Inst A5 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Maint B2 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Repair B3 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Replament B4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj EoL C1 C4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj BLB SysBound D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 5189.062795800481
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2652.778481645012
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 38.151298177085266
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.41082467294909863
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 745.0392854222866
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1752.6829058831474
    • Total Use Of PrE During The Life Cycle Mj BLB SysBound D : -1090.8456639187682
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj TLC : 115.03876500290659
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Mfg A1 A3 : 15.294837895717333
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Dist A4 : 0.0002555841171806951
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Inst A5 : 0.010333619672393685
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Maint B2 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Repair B3 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Replament B4 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj OpEnergy B6 : 97.80483607227524
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj EoL C1 C4 : 1.9285018311244393
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj BLB SysBound D : -14.742922697035636
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 40.84300524815006
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 40.84300524815006
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of NRE PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of NRE PrE Resources Used As RawMats Mj BLB SysBound D : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj TLC : 5033.133105661631
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Mfg A1 A3 : 2596.690579783624
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Dist A4 : 38.151298177085266
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Inst A5 : 0.4004906691129936
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Maint B2 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Repair B3 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Replacement B4 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj OpEnergy B6 : 647.256704276019
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj EoL C1 C4 : 1750.6340327557905
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj BLB SysBound D : -1076.0937774018003
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 6.3612388421605335
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.3612388421605335
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of RE PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Use Of RE PrE Resources Used As RawMats Mj BLB SysBound D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.12388255255421014
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj TLC : 108.6770139424642
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Mfg A1 A3 : 8.933086835274958
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Dist A4 : 0.0002555841171806951
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Inst A5 : 0.010333619672393685
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Maint B2 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Repair B3 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Replacement B4 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj OpEnergy B6 : 97.80483607227524
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj EoL C1 C4 : 1.9285018311244393
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj BLB SysBound D : -14.619990309394238
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.024347015481519893
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.024347015481519893
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SC
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 12...AWG 1/0 aluminium, AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper, AWG 14...AWG 1/0 copper
    • Motor Power HP : 20 hp at 240 V AC 50/60 Hz for 1 phase motors, 20 hp at 240 V AC 50/60 Hz for 1 phase motors, 20 hp at 240 V AC 50/60 Hz for 1 phase motors, 20 hp at 240 V AC 50/60 Hz for 1 phase motors, 20 hp at 240 V AC 50/60 Hz for 1 phase motors, 40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors, 20 hp at 250 V DC, 20 hp at 250 V DC, 20 hp at 250 V DC, 50 hp at 600 V DC, 50 hp at 600 V DC, 50 hp at 600 V DC
    • Tightening Torque : 50-50 lbf.in (AWG 1...AWG 3/0), 50-50 lbf.in (AWG 1...AWG 3/0), 45-45 lbf.in (AWG 6...AWG 4), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
    • Carbon Footprint Of The Distribution Phase A4 : 3.14194694080141, 3 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 25 kg CO2 eq., 25.107659630051046
    • Carbon Footprint Of The Installation Phase A5 : 0.37034662322675904, 0.4 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 64 kg CO2 eq., 63.970941218892754
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 30 kg CO2 eq., 30.34737347722995
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Pre Comm Date : 2023-04-05
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 10.9 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Services : factory installation
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 123 kg CO2 eq.
    • Wiring Configuration : 4-wire (3PH + N)
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2303036EN
    • Pep Verification Date : 0017-06-14
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • Nema Degree Of Protection : NEMA 4X stainless steel 304, NEMA 4X stainless steel 304
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 122.93826789020193
    • Environmental Disclosure : ENVPEP2303036EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2303036EN
    • Pep Verification Date : 0017-06-14
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
