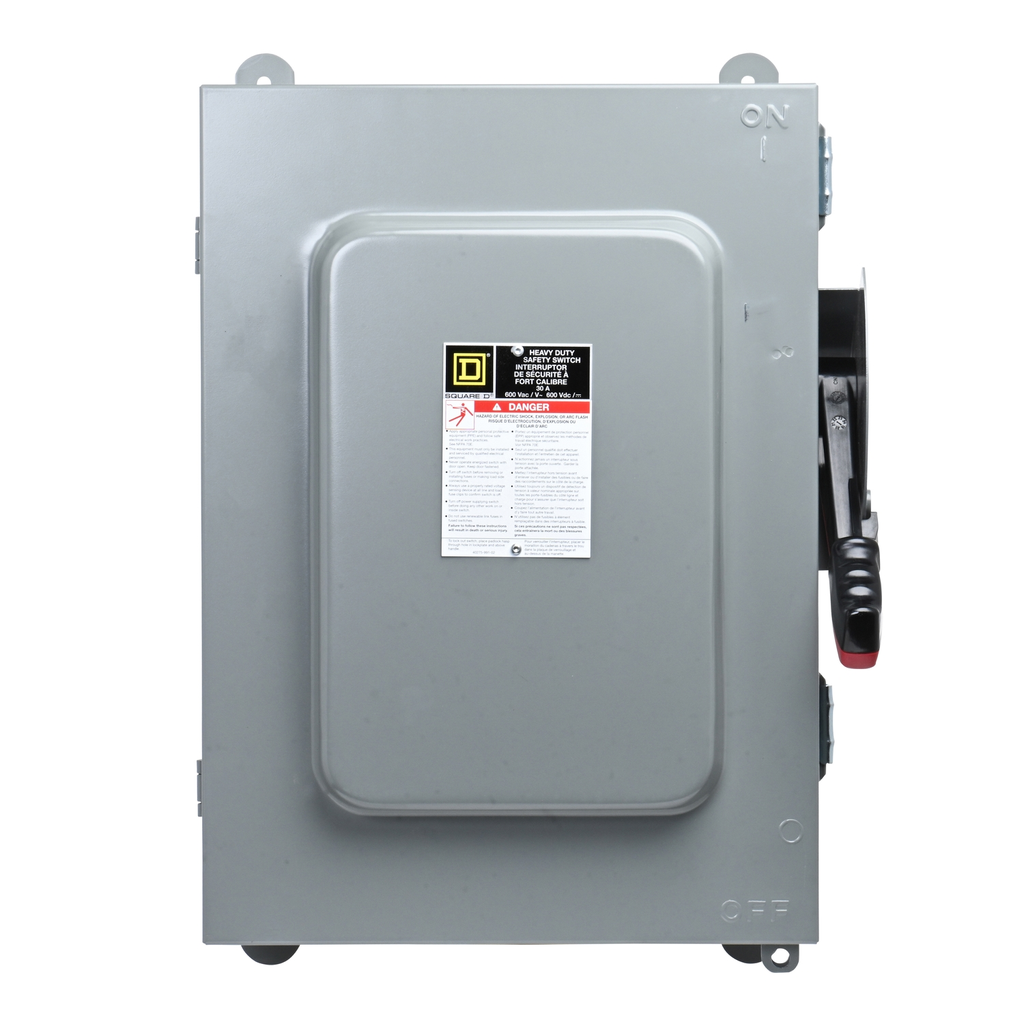

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three time

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=1885&p_File_name=1885.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=1885&p_File_name=1885.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=3263&p_File_name=3263.dwg
• http
• Motor Power HP
• 10 hp at 240 V AC 50-60 Hz for 2 phases motors
• 10 hp at 240 V AC 5
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 1.3760110835556392
• 1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 30 kg CO2 eq.
• 30.25700553565704
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 72 kg CO2 eq.
• 71.75560094751559
• Nema Degree Of Protection
• NEMA 3R/12 galvannealed steel
• Accessories
• EIK1
• EIK2
• LOGK2
• GTK0610
• GTK0610C
• CL0306F
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 4 kg CO2 eq.
• 4.330777462837799
• Persona Type Ids
• LC
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 3.9136467557796846
• 4 kg CO2 eq.
• Tightening Torque
• 45-45 lbf.in 13.3-13.3 mm² (AWG 6)
• 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
• 35-35 lbf.in 2.06-5.261 mm² (AWG 14...
• AWG Gauge
• AWG 12...AWG 6 aluminium
• AWG 14...AWG 6 copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 600 V AC/DC

• Important Information Attributes
• B2B Bullet Point 1 : Heavy duty non fusible 30A, 600VAC/DC safety switch
• B2B Bullet Point 2 : Type 12 without knockouts indoor dust and drip tight enclosure, meets type 3R requirements when drain plug removed
• B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
• B2B Bullet Point 6 : Red and black handle indicates the ON (red) or OFF (black) condition of the switch
• B2B Bullet Point 7 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• HTML Description : Safety switch, heavy duty, non fusible, 30A, 4 poles, 30 hp, 600 VAC/DC, NEMA 12
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 71.75560094751559
• Distribution Carbon Footprint : 3.9136467557796846
• Installation Carbon Footprint : 1.3760110835556392
• Use Carbon Footprint : 4.330777462837799
• End Of Life Carbon Footprint : 30.25700553565704
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1904
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Number Of Poles : 4
• Package Weight Lbs : 13.154 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 112 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Wiring Configuration : 4-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 111.63304178534575
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2305006EN
• Pep Verification Date : 2023-06-06
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 13154
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 8.506835999999986
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential In : 89
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.6179924343237194
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.4653601924291335
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.017006747680726738
• Acidification Ap Mole Of H Equiv Installation A5 : 0.002065191005794452
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.02261285741272168
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.11094744579534298
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.5149706060496049
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 1.1125657965998113
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 1.0006103440002707
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.01517681467947586
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.004712938463413772
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.09206569945665086
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.6853798944056816
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 110.52088223465857
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 70.75499060351531
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 3.9136467557796846
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 1.3608300678403682
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 4.326068234675361
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 30.165346572847856
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -57.38232984200025
• Climate Change Total Kg Co2 Eq Total Life Cycle : 111.63304178534575
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 71.75560094751559
• Climate Change Total Kg Co2 Eq Distribution A4 : 3.9136467557796846
• Climate Change Total Kg Co2 Eq Installation A5 : 1.3760110835556392
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 4.330777462837799
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 30.25700553565704
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -58.067862501343946
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.013727625564521088
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.013634270717866282
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000033640748913
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000001793422181065
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000018815507067193
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00009314842095483434
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.014755374406726128
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 3830.529041607388
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1557.1903000417954
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 47.52135309311209
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 4.672888497715768
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 92.36508873144079
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2128.779411243324
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1182.1905684487167
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1716.8460459955943
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1292.2195150542427
• Ecotoxicity Fresh Water Ctue Distribution A4 : 16.050439168750906
• Ecotoxicity Fresh Water Ctue Installation A5 : 3.2817727809138644
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 50.07764687159089
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 355.21667212009606
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1732.8126919076444
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00002439476832530992
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00002362700722579265
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000004616174514478
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000001334210777391
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000001550763104279
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000055318093617068
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00002517948090837322
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.5026157416876168
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.5026157416876168
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0034338903015655254
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00013039633196641696
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000045827571842867
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00002030436982395969
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00000687818449094896
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0032758531395657713
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00011915665165194062
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1072.2316185468333
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1059.749470629447
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0032424358093749227
• Hazardous Waste Disposed Of Kg Installation A5 : 0.004502555591828699
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 12.474402925985054
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1184.1765126429157
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00016061199069719703
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00016048338650853197
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000005521879641
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000012208210021493
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000050559985999
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000059612697937
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00017462560064529913
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000497443895079141
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000407061272959041
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000001033664857463
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000308375123001
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000002081050736146
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000086959531403489
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000504086104216014
• Impacts Related To Land Use Soil Quality Total Life Cycle : 9.925205762769744
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.3896644498907575
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.0601425517896728
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 8.475398761089314
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 229.0120727288838
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 224.889084375786
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.008677048479269523
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.01926174912200521
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 3.7499726561371975
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.34507689935933
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -318.7440431689411
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.08935245065735231
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.058442136599481456
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.007815263272690665
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0007522336504046309
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0026972461060068946
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.019645571028768672
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.034435126590375724
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 10.994651082584943
• Materials For Recycling Kg Manufacturing A1 A3 : 0.041870959948270864
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.18762589687040188
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 10.76515422576627
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.9939956610805387
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.6701606874559064
• Net Use Of Fresh Water M3 Distribution A4 : 0.004623048936688273
• Net Use Of Fresh Water M3 Installation A5 : 0.0036547101858437365
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0035730198403365232
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.31198419466176375
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.6681174564099517
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 86.96619084123242
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 83.88513702593109
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0039833457587491695
• Non Hazardous Waste Disposed Of Kg Installation A5 : 2.090970089084535
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.6350465528988561
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.3510538275591789
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -60.36315569502396
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00001930806372399247
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00001566604439346989
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000345363333618109
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000002466008011912
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000001802635459028
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000001456995596321
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000867914899716723
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.3417222678815141
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.22689412418723692
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.02776693704600751
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0017263583732764975
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.00892755496491145
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.07640729331008174
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.1457339317431539
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.03713216758358727
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.035953228161902856
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0007781082117809737
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00018268204156388147
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00012334324780725563
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00009480592053230046
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.03255611785278743
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.9868575868479154
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.6469595124948314
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.08468715295051145
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.005665096770125197
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.03185578796063272
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.2176900366718146
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.3956993806941528
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 28.30352389078628
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 28.30352389078628
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3882.7905258168958
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1592.9181999201253
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 47.52326265483728
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 4.956649370079203
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 106.32152855830044
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2131.0708853135534
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1203.6540422398675
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 52.20935389262823
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 35.73935724868142
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003183621308239029
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.283875446066947
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 13.957153346278204
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.2286494894708317
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -21.474931161501992
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 28.30352389078628
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 28.30352389078628
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3802.2102412228
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1528.8714996572073
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 47.52135309311209
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.672888497715768
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 92.36508873144079
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2128.779411243324
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1182.1905684487167
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 20.7435690207537
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 20.7435690207537
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.3772508671734323
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 31.464830091011933
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 14.994833447065124
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003183621308239029
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.283875446066947
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 13.957153346278204
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.2286494894708317
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -18.098444119018637
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=365629&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 111.63304178534575
• Environmental Disclosure : ENVPEP2305006EN
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2305006EN
• Pep Verification Date : 2023-06-06
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
