SQUARE D

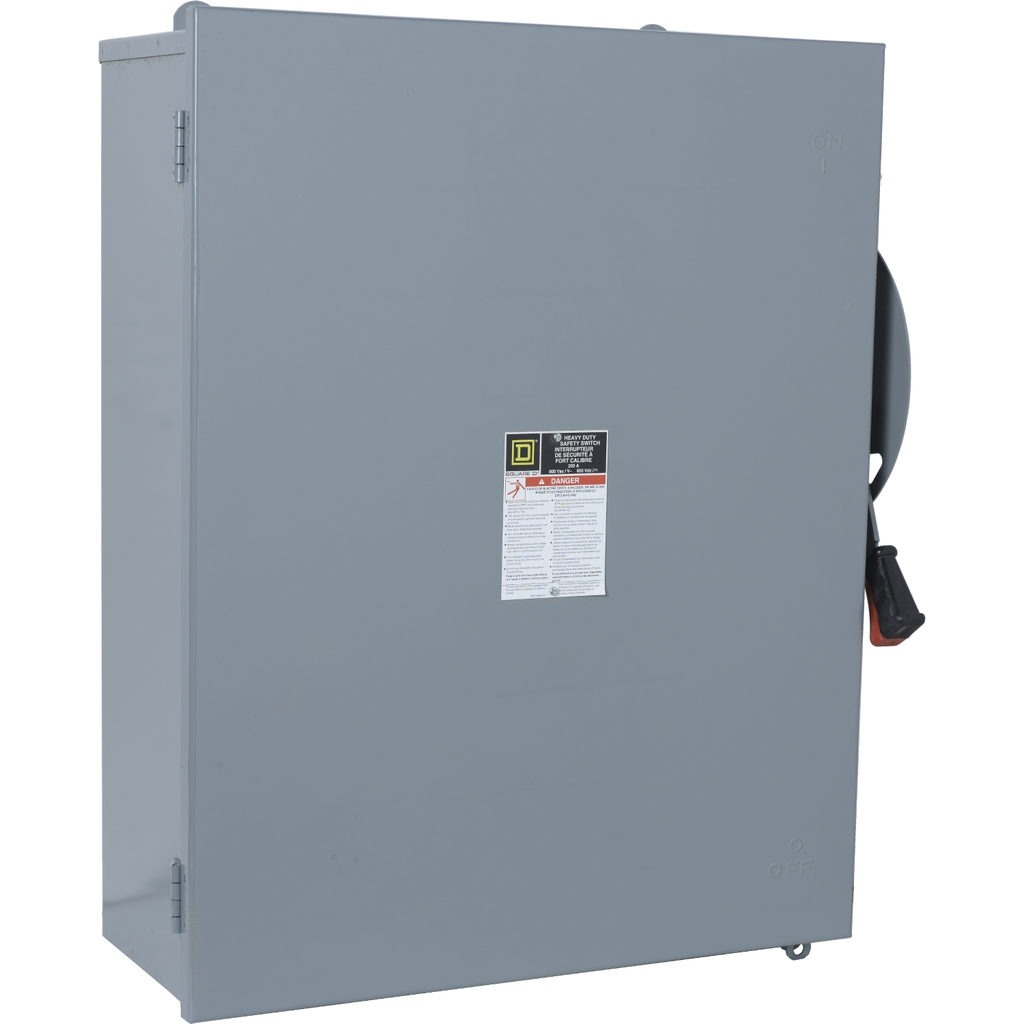

Safety switch, heavy duty, non fusible, 200A, 4 pole, 150hp, 600VAC/DC, NEMA1

SWITCH NOT FUSIBLE HD 600V 200

SQDHU464 HU464 785901505952
1490.45 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 200A, 4 pole, 150hp, 600VAC/DC, NEMA1-1
  • Country of Origin: USA
  • Depth: 8.75 in
  • Height: 29 in
  • Number of Poles: 4
  • Warranty Length: 18 mth
  • Width: 24.88 in
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three time
QTY
  • Product Description
  • Features
  • Specifications
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three time
  • Motor Power Hp
    • 50 hp at 240 V AC 50-60 Hz for 2 phases motors
    • 60 hp at 240 V AC 5
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.8702865501022686
    • 0.9 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 44 kg CO2 eq.
    • 44.41340473040771
  • Ue Rated Operational Voltage
    • 600 V AC/DC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 92 kg CO2 eq.
    • 92.39954704896982
  • Nema Degree Of Protection
    • NEMA 1 steel
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 78 kg CO2 eq.
    • 77.5845198262433
  • Persona Type Ids
    • LC
    • OM8
    • PB
  • Carbon Footprint Of The Distribution Phase A4
    • 5.976843149947849
    • 6 kg CO2 eq.
  • Tightening Torque
    • 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil)
  • AWG Gauge
    • AWG 6...250 kcmil copper or aluminium
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Conformance Attributes
    • Product Certifications : UL listed file E2875
  • Complementary Attributes
    • Line Rated Current : 200 A
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-23
    • Html Descr : Safety switch, heavy duty, non fusible, 200A, 4 poles, 150 hp, 600 VAC/DC, NEMA1
    • Manufacturer : Square D
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 92.3995470489698
    • Distribution Carbon Footprint : 5.97684314994785
    • Installation Carbon Footprint : 0.870286550102269
    • Use Carbon Footprint : 77.5845198262433
    • End Of Life Carbon Footprint : 44.4134047304077
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1906
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : heavy application
    • Device Composition : none
    • Disconnector Device Type : non-fusible disconnect
    • Electrical Connection : lugs
    • Number Of Poles : 4
    • Package Weight Lbs : 19.731 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 221 kg CO2 eq.
    • Wiring Configuration : 4-wire
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 221.24460130567093
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=365671&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 221.244601305671
    • Environmental Disclosure : ENVPEP2305005EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Height : 29 in
    • Width : 24.88 in
    • Depth : 8.75 in
