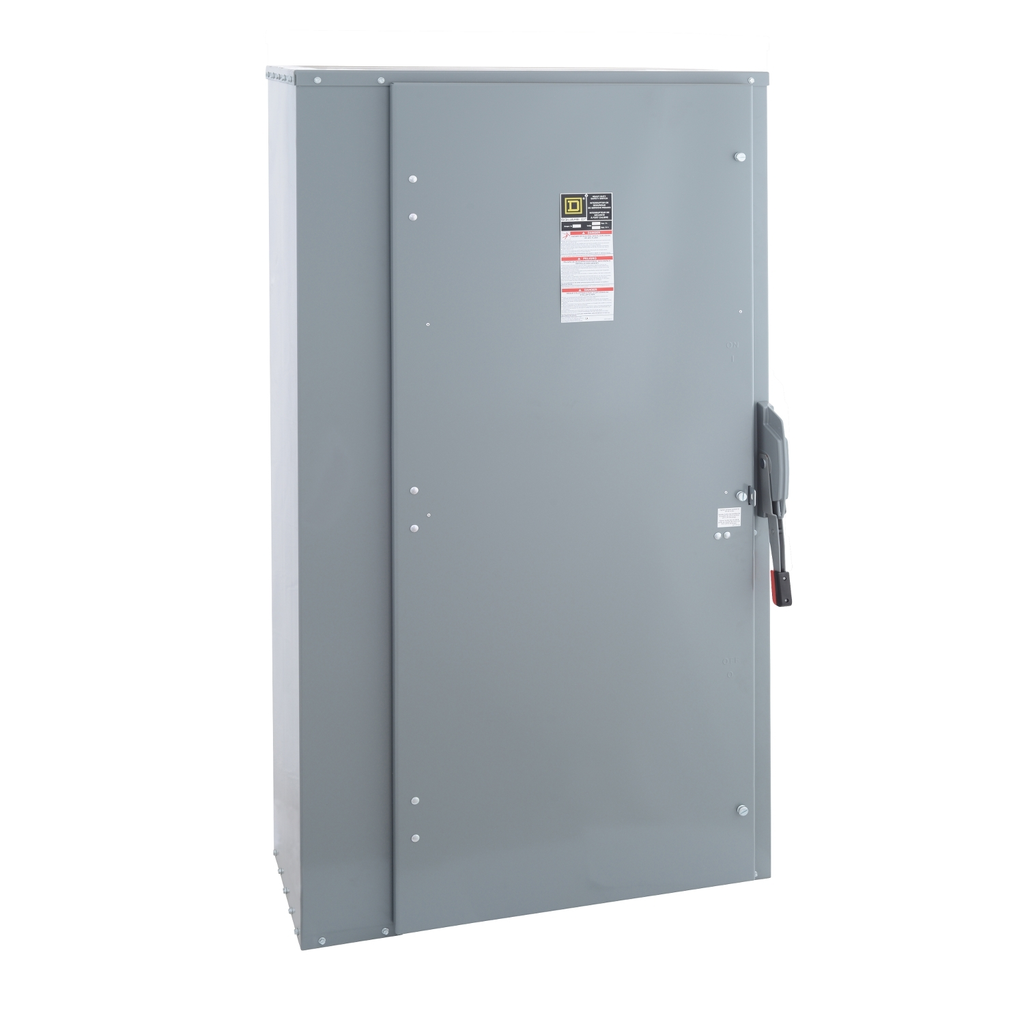

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industria

• Motor Power Hp
• 50 hp at 600 V AC 50-60 Hz for 1 phase motors
• 500 hp at 600 V AC 50-60
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.03193604451537081
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.4 kg CO2 eq.
• 0.4281391821868275
• Ue Rated Operational Voltage
• 600 V AC/DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 1.781701981044254
• Nema Degree Of Protection
• NEMA 1 steel
• Accessories
• EIK40601
• SS03
• EIK032
• EIK40602
• EIK031
• H600SN
• LOGK1
• PKOGTA2
• B300
• B400
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 093 kg CO2 eq.
• 1092.6315181856207
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 0.35774196144074777
• 0.4 kg CO2 eq.
• Tightening Torque
• 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
• AWG Gauge
• AWG 3/0...750 kcmil copper or aluminium
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Conformance Attributes
• Product Certifications : UL listed file E2875
• Complementary Attributes
• Line Rated Current : 1200 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Heavy duty non fusible 1200A, 600VAC/DC safety switch
• B2B Bullet Point 2 : Type 1 enclosure for indoor general purpose applications
• B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
• B2B Bullet Point 6 : Red and black handle indicates the ON (red) or OFF (black) condition of the switch
• B2B Bullet Point 7 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 1.78170198104425
• Distribution Carbon Footprint : 0.357741961440748
• Installation Carbon Footprint : 3.19360445153708e-02
• Use Carbon Footprint : 1092.63151818562
• End Of Life Carbon Footprint : 0.428139182186828
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1917
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : heavy application
• Device Composition : none
• Disconnector Device Type : non-fusible disconnect
• Electrical Connection : lugs
• Halogen Free Status : Halogen free plastic parts product
• Number Of Poles : 3
• Package Weight Lbs : 158.757 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 095 kg CO2 eq.
• Wiring Configuration : 3-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1095.231037354808
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=365617&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 1095.23103735481
• Environmental Disclosure : ENVPEP2503030_V1
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 69.13 in
• Width : 36.62 in
• Depth : 17.75 in
