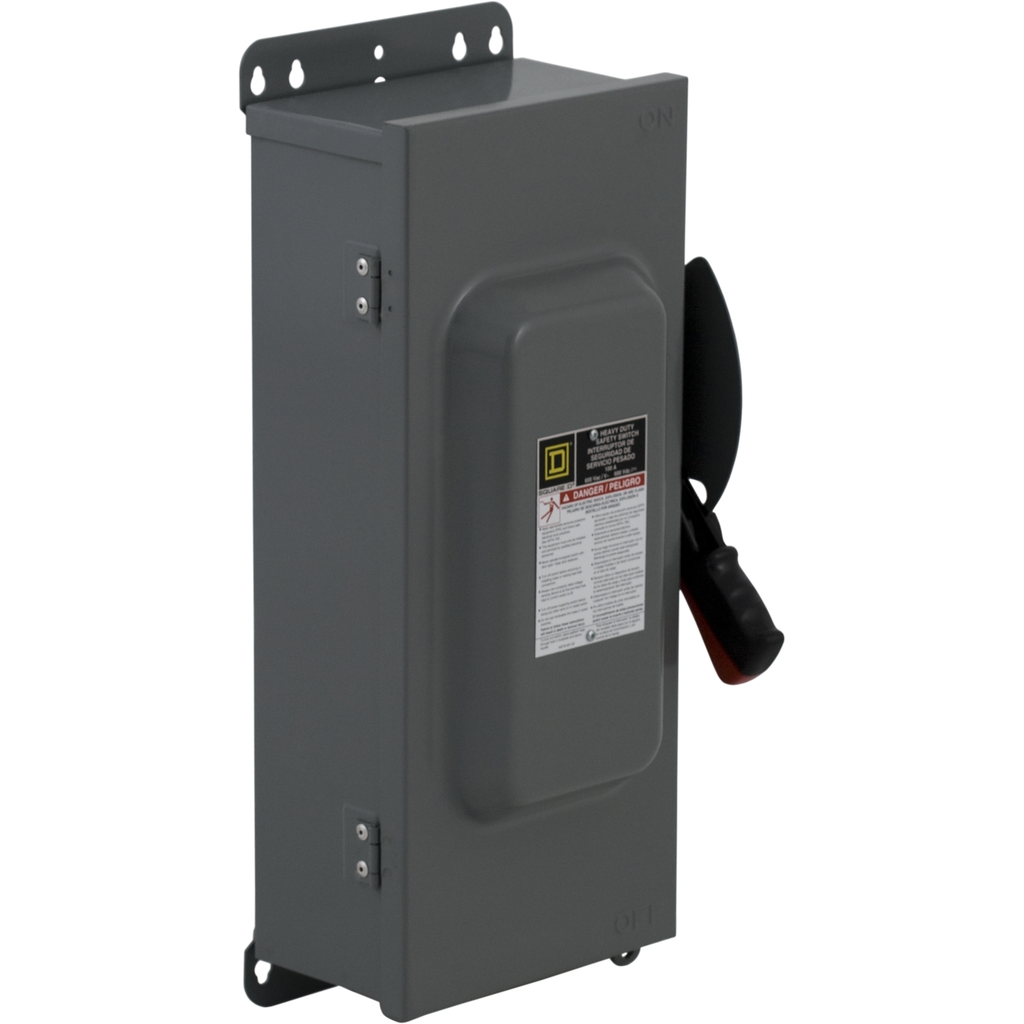

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 100 A
• Ue Rated Operational Voltage : 600 V AC/DC
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Awg Gauge : AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper
• Motor Power Hp : 75 hp at 600 V AC 50-60 Hz for 3 phase motors, 30 hp at 600 V DC, 30 hp at 240 V AC 50-60 Hz for 2 phases motors, 40 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 480 V AC 50-60 Hz for 2 phases motors, 75 hp at 480 V AC 50-60 Hz for 3 phase motors, 50 hp at 600 V AC 50-60 Hz for 2 phases motors, 20 hp at 250 V DC
• Tightening Torque : 50-50 lbf.in (AWG 1...AWG 3/0), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
• Carbon Footprint Of The Distribution Phase A4 : 5.128442232733345, 5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 40 kg CO2 eq., 39.648776373583736
• Carbon Footprint Of The Installation Phase A5 : 1.8031247565188198, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 94 kg CO2 eq., 94.02853075355985
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 40 kg CO2 eq., 40.46399702689221
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1904
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : heavy application
• Device Composition : none
• Disconnector Device Type : non-fusible disconnect
• Electrical Connection : lugs
• Energy Efficiency Optimized : False
• Number Of Poles : 4
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 181 kg CO2 eq.
• Wiring Configuration : 4-wire
• Warranty In Months : 18
• Pep Code : ENVPEP2305006EN
• Database Version : 2022-01
• Pep Verification Date : 2023-06-06
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y2 : 20
• Energy Consumption On Product Lifetime In Kwh : 79.4824
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential In 2 : 89
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 20.5 in
• Width Nominal : 16.13 in
• Certificate Agency : UL listed file E2875
• Environment Attributes Main
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 181.07287114328795
• Environmental Disclosure : ENVPEP2305006EN
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 3R/12 galvannealed steel
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2305006EN
• Pep Verification Date : 2023-06-06
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Depth : 6.8 in
