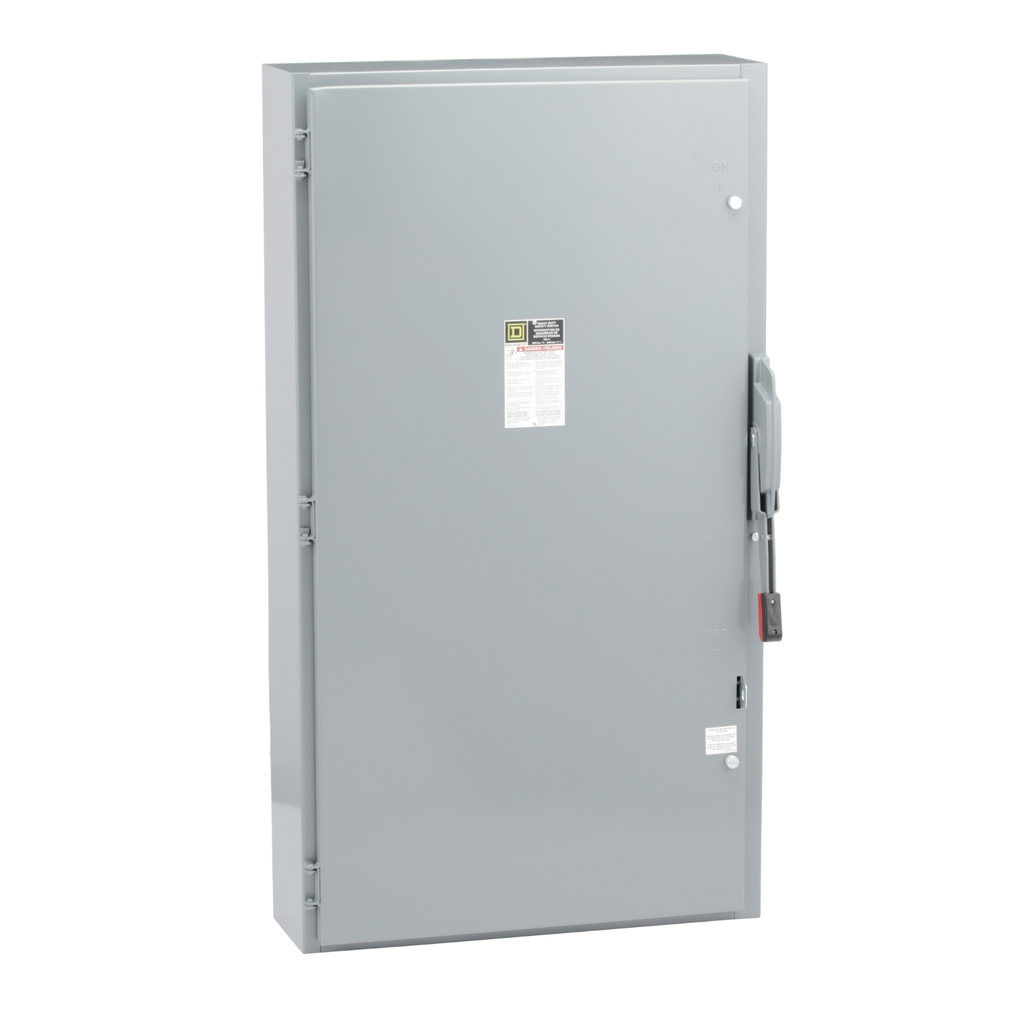

Safety switch, heavy duty, fusible, 600A, 3 pole, 200hp, 240VAC/250VDC, NEMA 1

SWITCH FUSIBLE HD 240V 600A 3P

SQDH326 H326 785901451464
3455.96 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fusible, 600A, 3 pole, 200hp, 240VAC/250VDC, NEMA 1-1
  • Warranty Length: 18 mth
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 600 A with a voltage of 240 VAC and 250 VDC. This switch has a NEMA 1 enclosure. The device accepts class L fuse as standard. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 600 A with a voltage of 240 VAC and 250 VDC. This switch has a NEMA 1 enclosure. The device accepts class L fuse as standard. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 250 V DC, 250 V DC, 240 V AC, 240 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 3/0...500 kcmil copper or aluminium, AWG 3/0...500 kcmil copper or aluminium
    • Motor Power HP : 75 hp at 240 V AC 50-60 Hz for 3 phase motors, 75 hp at 240 V AC 50-60 Hz for 3 phase motors, 75 hp at 240 V AC 50-60 Hz for 3 phase motors, 75 hp at 240 V AC 50-60 Hz for 3 phase motors, 75 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC, 50 hp at 250 V DC, 50 hp at 250 V DC
    • Short Circuit Current : 10 kA for H or K, 10 kA for H or K, 200 kA for R or J, 200 kA for R or J
    • Tightening Torque : 375-375 lbf.in (AWG 3/0...500 kcmil), 375-375 lbf.in (AWG 3/0...500 kcmil)
    • Carbon Footprint Of The Distribution Phase A4 : 200.94224539111337, 201 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 193 kg CO2 eq., 192.73633384010333
    • Carbon Footprint Of The Installation Phase A5 : 0.1919004712198152, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 405 kg CO2 eq., 405.15953802458023
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 231 kg CO2 eq., 1230.7965359690943
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 79.379 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : No
    • Series Name : heavy duty
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 030 kg CO2 eq.
    • Wiring Configuration : 3-wire (3P)
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503029EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • Nema Degree Of Protection : NEMA 1 steel, NEMA 1 steel
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 2029.826553696111
    • Environmental Disclosure : ENVPEP2503029EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2503029EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
