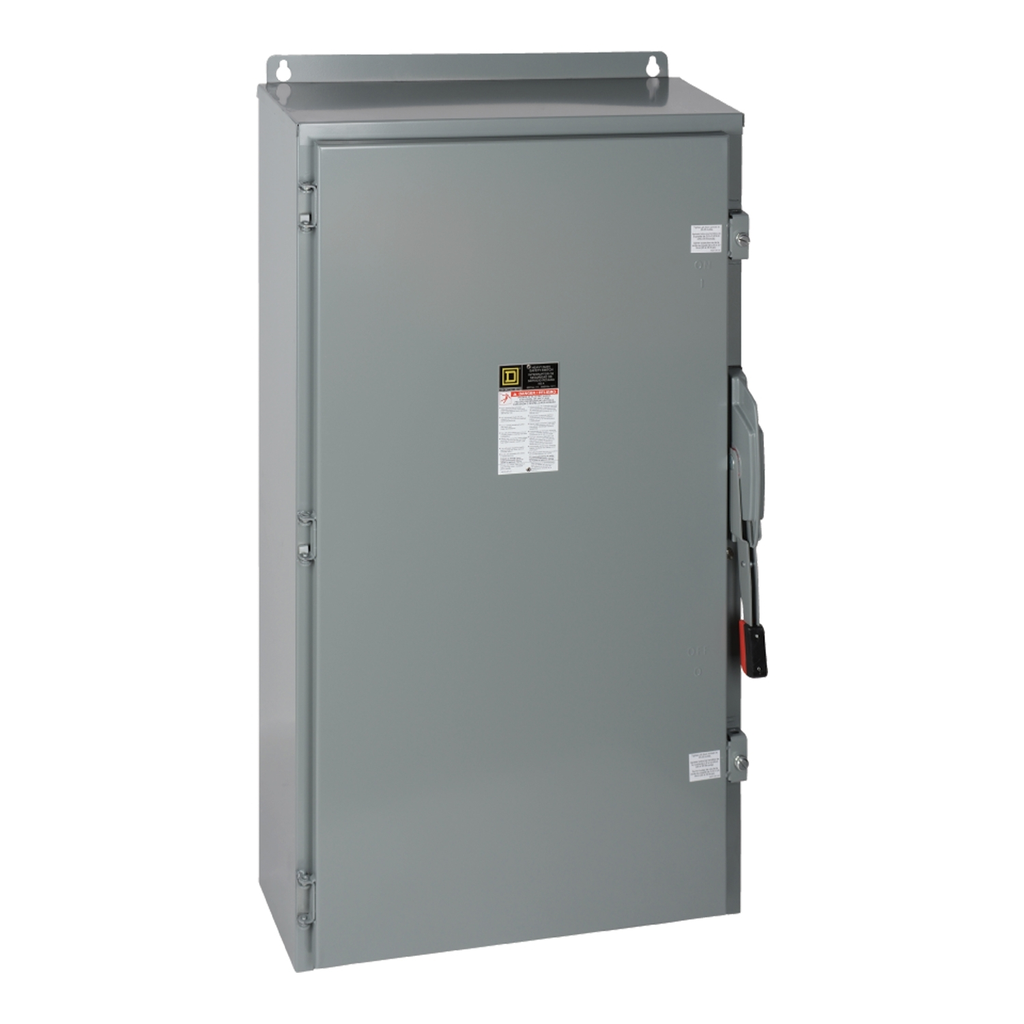

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and hav

• Motor Power Hp
• 50 hp at 240 V AC 50-60 Hz for 3 phase motors
• 125 hp at 240 V AC 50-60
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.18641511401957633
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 187 kg CO2 eq.
• 187.22708401983354
• Ue Rated Operational Voltage
• 250 V DC
• 240 V AC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 394 kg CO2 eq.
• 393.57830127710577
• Nema Degree Of Protection
• NEMA 3R/12 galvannealed steel
• Short Circuit Current
• 10 kA for H or K
• 200 kA for R or J
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 547 kg CO2 eq.
• 547.0206826529308
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 195.19843462513703
• 195 kg CO2 eq.
• Tightening Torque
• 550-550 lbf.in (AWG 1/0...750 kcmil)
• Actuators
• H325NDS
• H325DS
• H325
• H225R
• H225
• AWG Gauge
• AWG 1/0...750 kcmil copper or aluminium
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Fuse Type
• H or K
• R or J

• Conformance Attributes
• Product Certifications : UL listed file E2875
• Complementary Attributes
• Line Rated Current : 400 A
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 393.578301277106
• Distribution Carbon Footprint : 195.198434625137
• Installation Carbon Footprint : 0.186415114019576
• Use Carbon Footprint : 547.020682652931
• End Of Life Carbon Footprint : 187.227084019834
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1906
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : heavy application
• Device Composition : none
• Disconnector Device Type : fusible disconnect
• Electrical Connection : lugs
• Halogen Free Status : Halogen free plastic parts product
• Number Of Poles : 3
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : No
• Series Name : heavy duty
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 323 kg CO2 eq.
• Wiring Configuration : 3-wire (3P)
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1323.2109176890267
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=364125&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 1323.21091768903
• Environmental Disclosure : ENVPEP2503029_V1
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 46.25 in
• Width : 26.25 in
• Depth : 10.13 in
