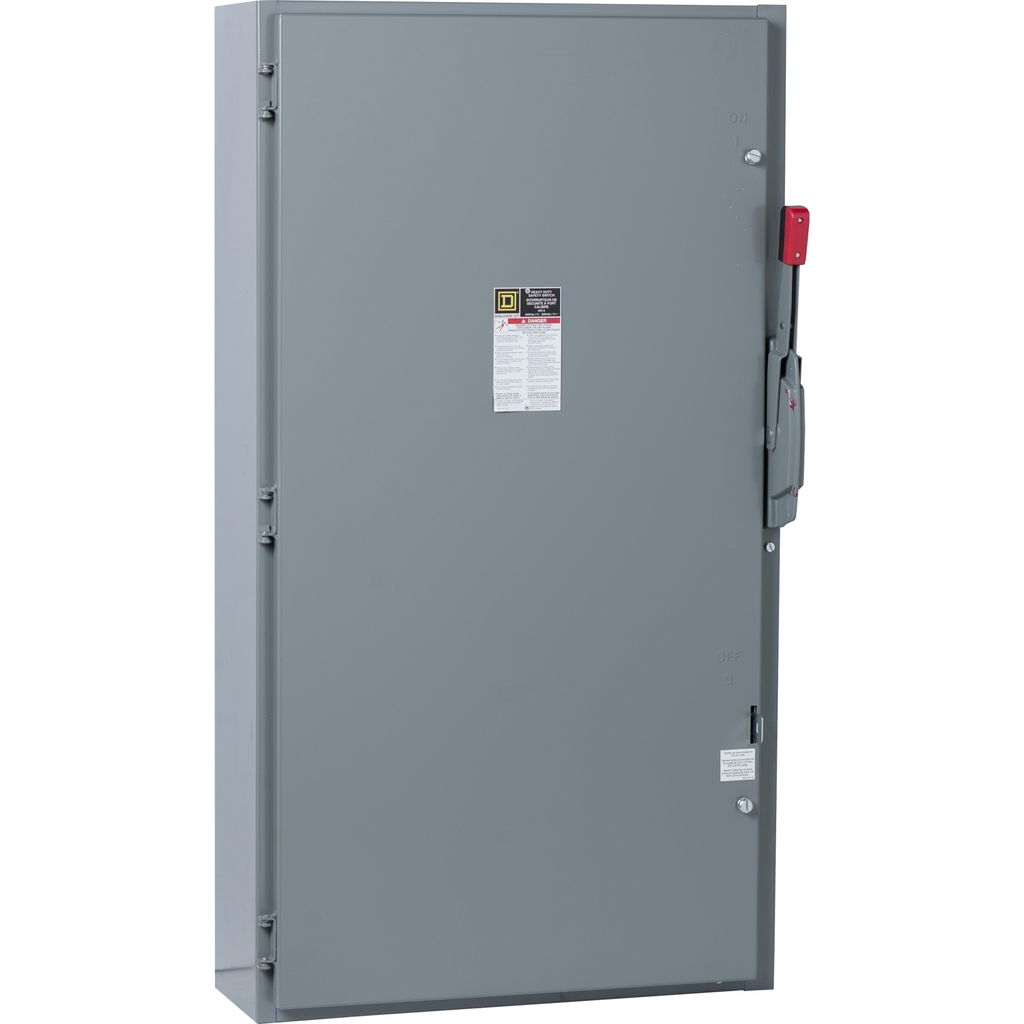

This is a Single Throw Safety Switch. This safety switch has a rated current of 400A and is 2 pole. This safety switch has a rated operational voltage of 240 VACat200 kA and 250 VDC at 10 kA. With a motor power of 50 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 1 degree of protection. and os made of steel. Dimensions for this disconnect are 50.25 in (H), 27.63 in (W), 10.13 in (D).

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=1921&p_File_name=1921.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=1921&p_File_name=1921.dxf
• Motor Power HP
• 50 hp at 250 V DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.18093459186314553
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 182 kg CO2 eq.
• 181.72269030341593
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 382 kg CO2 eq.
• 382.00727275946605
• Nema Degree Of Protection
• NEMA 1 steel
• Accessories
• EIK40601
• H225R
• EIK40602
• H225N
• HRK4060
• H225NR
• H600SN
• H225NDS
• PKOGTA2
• H225NAWK
• Short Circuit Current
• 10 kA for H or K
• 200 kA for R or J
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 365 kg CO2 eq.
• 364.68045510195384
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 189.4596867157195
• 189 kg CO2 eq.
• Tightening Torque
• 550-550 lbf.in (AWG 1/0...750 kcmil)
• AWG Gauge
• AWG 1/0...750 kcmil copper or aluminium
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 250 V DC
• 240 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Heavy duty fusible 400A, 240VAC/250VDC safety switch
• B2B Bullet Point 2 : Type 1 enclosure for indoor general purpose applications
• B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
• B2B Bullet Point 6 : Red and black handle indicates the ON (red) or OFF (black) condition of the switch
• B2B Bullet Point 7 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 382.00727275946605
• Distribution Carbon Footprint : 189.4596867157195
• Installation Carbon Footprint : 0.18093459186314553
• Use Carbon Footprint : 364.68045510195384
• End Of Life Carbon Footprint : 181.72269030341593
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1906
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 7
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Number Of Poles : 2
• Package Weight Lbs : 74.843 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : No
• Series Name : heavy duty
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 118 kg CO2 eq.
• Wiring Configuration : 2-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1118.0510394724186
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503029_V1
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 74843
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 815.7312
• Recyclability Potential In : 90
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Acidification Ap Mole Of H Equiv Total Life Cycle : 5.311037074836017
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 2.2148054418115177
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.7794489373034649
• Acidification Ap Mole Of H Equiv Installation A5 : 0.001801256453762734
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 1.6265244283419358
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.6884570109253355
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -2.159023243386772
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 5.76226813069782
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 3.097358446357118
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.030495050968364103
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 1.8265255485119303
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.807889084860408
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.512929922828905
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 1112.288757257994
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 378.9099136424553
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 189.4596867157195
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.15043954089478145
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 362.8539295534419
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 180.91478780548235
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -258.58407854749515
• Climate Change Total Kg Co2 Eq Total Life Cycle : 1118.0510394724186
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 382.00727275946605
• Climate Change Total Kg Co2 Eq Distribution A4 : 189.4596867157195
• Climate Change Total Kg Co2 Eq Installation A5 : 0.18093459186314553
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 364.68045510195384
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 181.72269030341593
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -261.0970084703241
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.012445878321183657
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.011556497371530706
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000001623625116824
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000580138488229
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00006941653740794723
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0008199423746089513
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0727331775259591
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 34408.72321115379
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 12304.659351013574
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2350.2401423196443
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.533171417310968
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 7911.221263237043
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 11841.069283166216
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -5648.082596254783
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 4214.2157391112
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1390.3138617218483
• Ecotoxicity Fresh Water Ctue Distribution A4 : 1537.3120102015496
• Ecotoxicity Fresh Water Ctue Installation A5 : 15.245423281732352
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 455.2577527043736
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 816.0866912016962
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -956.6579109596975
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00003686717355750949
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000191728802589239
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000214603735085232
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000730039146086
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00001184030584586717
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000370064971040524
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0001223480477920541
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.6978889253063403
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0833053341667746
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.6145835911395656
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.027776217992777907
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0017299710961880819
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00002211760829911241
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000212142220444675
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0006084166803688708
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.025413591185717396
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0004913540063981262
• Hazardous Waste Disposed Of Kg Total Life Cycle : 838.2096210449007
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 838.042745984799
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.15649380467562873
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0007936478995633701
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.009587607526554248
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -5812.247899058509
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00003749931201950224
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00003738638511974097
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000278202427891
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000002733780714473
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000427188879601
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000004008818037752
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0007659552905473171
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00001766651990119163
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00001307445450446323
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000033567849451875
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000785803709205
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000105955271128758
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000318897615383002
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00001963640527287361
• Impacts Related To Land Use Soil Quality Total Life Cycle : 89.26848928381996
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 5.548485121106797
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 7.349178080270506
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 76.37082608244266
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2501.957181758769
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 2167.7573403196957
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.4187822184402709
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0010266639068438024
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 332.5212662195336
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 1.258766337192261
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -1137.7450169834133
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.9986873688524823
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.29767696886930367
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.3546744294587124
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0008513343990918781
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.206155353359403
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.13932928276597145
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.1538347805533226
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 70.42368904388846
• Materials For Recycling Kg Manufacturing A1 A3 : 8.292853610720943
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 62.13083543316752
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 6.548596846027086
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 3.934772113198362
• Net Use Of Fresh Water M3 Distribution A4 : 0.22311986442555737
• Net Use Of Fresh Water M3 Installation A5 : 0.007317874114665757
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.461818091012805
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 1.9215689032756955
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -3.0214870316545914
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 316.96503438046335
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 248.7261721664911
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.1922503535066064
• Non Hazardous Waste Disposed Of Kg Installation A5 : 3.458477061264921
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 56.22777559771023
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 8.3603592014905
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -247.10105036966365
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00018475469663263192
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00001615487143338682
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00016668506841471315
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000535653530693
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000136406711677766
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000054533313244735
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00003930179461697051
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 3.5579686980348075
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 1.0890279791389372
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 1.282533739028203
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0020802645851758007
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.6805614884920432
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.5037652267904484
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.6496894319011347
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.17052788721660186
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.11913333080725369
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.03755419115805787
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000281197550977095
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.013189647149473021
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0006479061263075333
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.1366169170784131
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 11.089962339920628
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 3.2308262055729107
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 3.847161696762596
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.008666663319062209
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 2.4511092371507477
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 1.5521985371153129
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -1.7802678157114298
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 161.72768037701672
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 161.72768037701672
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 35846.451325243186
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 12525.45910153699
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2350.25550778989
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.5342884930749414
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 9108.285439135117
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 11860.916988288116
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -5730.990845195518
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1437.7281140893936
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 220.7997505234104
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.015365470245567132
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0011170757639735595
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.0641758980757
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 19.847705121897835
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -82.90824894073498
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 161.72768037701672
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 161.72768037701672
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 34246.995530776774
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12142.93167063656
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2350.2401423196443
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.533171417310968
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 7911.221263237043
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 11841.069283166216
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5648.082596254783
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 69.31789209635109
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 69.31789209635109
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1368.4102219930426
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 151.4818584270593
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.015365470245567132
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0011170757639735595
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.0641758980757
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 19.847705121897835
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -82.90824894073498
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 281.24294907757564
• Water Use M3 Eq Manufacturing A1 A3 : 168.99745583045276
• Water Use M3 Eq Distribution A4 : 9.582998177077686
• Water Use M3 Eq Installation A5 : 0.3143026932248943
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 19.817034052141725
• Water Use M3 Eq End Of Life C1 C4 : 82.53115832467857
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -129.7645133337149
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=363887&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1118.0510394724186
• Environmental Disclosure : ENVPEP2503029_V1
• EU ROHS Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503029_V1
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
