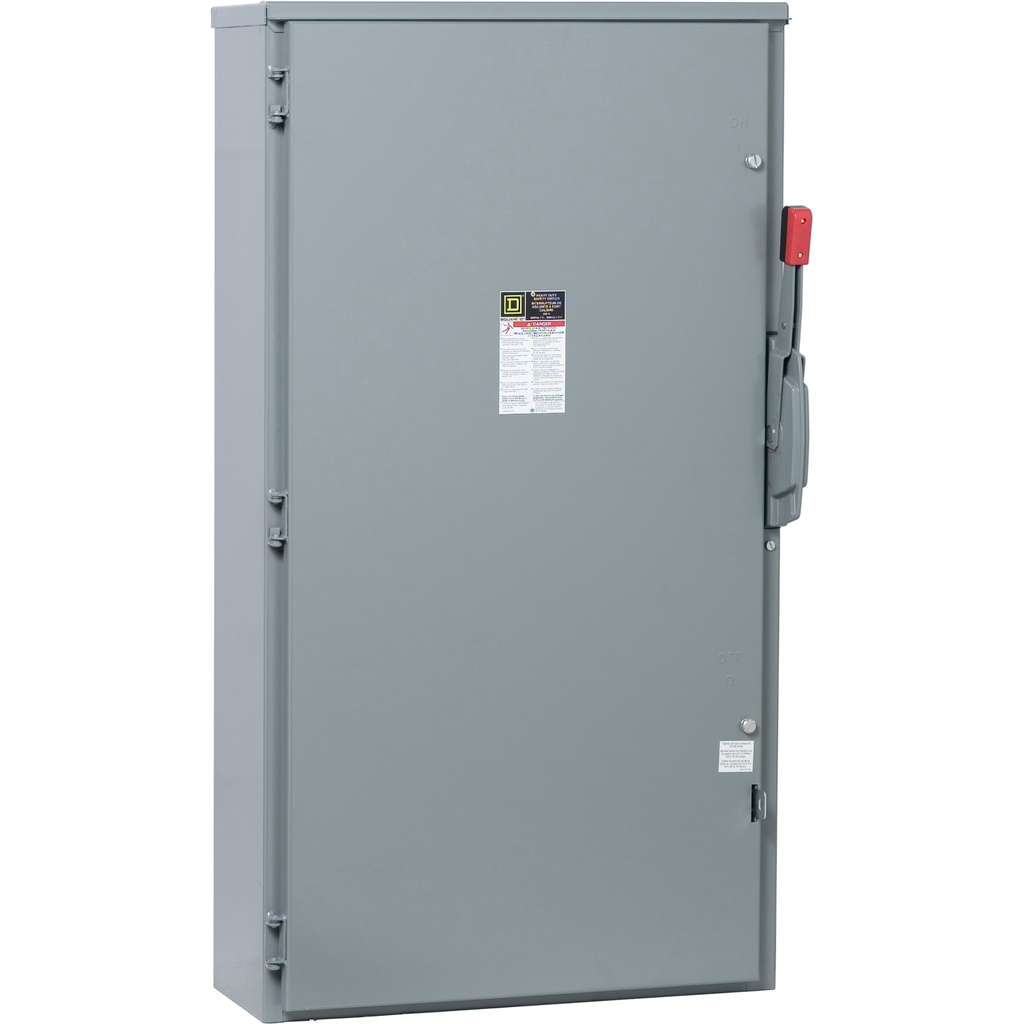

This is a Single Throw Safety Switch. This safety switch has a rated current of 400A and is 2 pole. This safety switch has a rated operational voltage of 240 VACat200 kA and 250 VDC at 10 kA. With a motor power of 50 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 3R degree of protection. and os made of galvannealed steel. Dimensions for this disconnect are 50.31 in (H), 27.88 in (W), 10.13 in (D).

• Motor Power HP
• 50 hp at 250 V DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.19738341089815004
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 198 kg CO2 eq.
• 198.243155608447
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 417 kg CO2 eq.
• 416.73567065713723
• Nema Degree Of Protection
• NEMA 3R galvannealed steel
• Accessories
• EIK40601
• EIK40602
• H225N
• H225NR
• H225NDS
• HRK4060
• H225NAWK
• H600SN
• H325
• PKOGTA2
• Short Circuit Current
• 10 kA for H or K
• 200 kA for R or J
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 365 kg CO2 eq.
• 364.68045510195384
• Persona Type Ids
• LC
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 206.6835247288103
• 207 kg CO2 eq.
• Tightening Torque
• 550-550 lbf.in (AWG 1/0...750 kcmil)
• AWG Gauge
• AWG 1/0...750 kcmil copper or aluminium
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 250 V DC
• 240 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Heavy duty fusible 400A, 240VAC/250VDC safety switch
• B2B Bullet Point 2 : Type 3R enclosure for rainproof applications
• B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
• B2B Bullet Point 6 : Red and black handle indicates the ON (red) or OFF (black) condition of the switch
• B2B Bullet Point 7 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 416.73567065713723
• Distribution Carbon Footprint : 206.6835247288103
• Installation Carbon Footprint : 0.19738341089815004
• Use Carbon Footprint : 364.68045510195384
• End Of Life Carbon Footprint : 198.243155608447
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1906
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 7
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Number Of Poles : 2
• Package Weight Lbs : 81.647 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : No
• Series Name : heavy duty
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 187 kg CO2 eq.
• Wiring Configuration : 2-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1186.5401895072466
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503029_V1
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 81647
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 815.7312
• Recyclability Potential In : 90
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Acidification Ap Mole Of H Equiv Total Life Cycle : 5.645997245416375
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 2.416154081311345
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.8503088783722725
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0019650092283896416
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 1.6265244283419358
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.7510448481624317
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -2.3553007061822715
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 6.1200676915010055
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 3.3789402491845544
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.033267365370362276
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 1.8265255485119303
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.8813345284341585
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.7413811499968146
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 1180.4201064516628
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 413.35672967632973
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 206.6835247288103
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.16411604552778777
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 362.8539295534419
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 197.3618064475531
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -282.09203614456044
• Climate Change Total Kg Co2 Eq Total Life Cycle : 1186.5401895072466
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 416.73567065713723
• Climate Change Total Kg Co2 Eq Distribution A4 : 206.6835247288103
• Climate Change Total Kg Co2 Eq Installation A5 : 0.19738341089815004
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 364.68045510195384
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 198.243155608447
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -284.8334172945573
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.013571026243859254
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.012607102078930127
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000001771229372331
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000632879055469
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00006941653740794723
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0008944835864369018
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.07934537292013927
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 36817.619210160046
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 13423.279692585882
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2563.901191827853
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.672552499354497
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 7911.221263237043
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 12917.544510009915
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -6161.551510981845
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 4555.943758291512
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1516.7077197333585
• Ecotoxicity Fresh Water Ctue Distribution A4 : 1677.0695148100144
• Ecotoxicity Fresh Water Ctue Installation A5 : 16.63138937086436
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 455.2577527043736
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 890.2773816729004
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1043.627973973871
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00003914237374870992
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000209158926619772
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000234113426218938
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000796407227937
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00001184030584586717
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000403707690639682
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00013347074620308967
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.7613342207619519
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.09087864755173691
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.670455573210215
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.030246051111835547
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.001887243297174997
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00002412832682812863
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000231428134530235
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0006084166803688708
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.027723948526118248
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0005360231492642974
• Hazardous Waste Disposed Of Kg Total Life Cycle : 914.4115138283208
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 914.2294681055126
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.17072070427897143
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0008657986726300452
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.010459219856507284
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -6340.641131627941
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00004090450234681425
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00004078519281524647
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000303493895622
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000002982309554595
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000427188879601
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000004373260910551
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0008355885200662293
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00001917626436306658
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00001426305715866426
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000036619512902974
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000857241364529
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000105955271128758
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000347888695043971
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00002142155687658581
• Impacts Related To Land Use Soil Quality Total Life Cycle : 96.71579889766429
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 6.052899598933857
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 7.349178080270506
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 83.31372121845992
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2699.1812637614803
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 2364.8288225362717
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.4568538378872145
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.001119998236335742
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 332.5212662195336
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 1.3732011695514148
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -1241.1777641415329
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 1.0707366965573433
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.32473887307125626
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.38691799021973317
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0009287294694581266
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.206155353359403
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.15199575043749278
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.16781994746118045
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 76.82592813444626
• Materials For Recycling Kg Manufacturing A1 A3 : 9.046759466543735
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 67.77916866790252
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 7.101947762600675
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 4.2924834483693415
• Net Use Of Fresh Water M3 Distribution A4 : 0.243403759479891
• Net Use Of Fresh Water M3 Installation A5 : 0.007983144286574763
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.461818091012805
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 2.0962593194520625
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -3.2961713409871654
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 340.66873825066966
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 271.3379444821493
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.20972789189040916
• Non Hazardous Waste Disposed Of Kg Installation A5 : 3.772888267721724
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 56.22777559771023
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 9.120402011198038
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -269.5650823661789
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00020142679480114297
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00001762351573188853
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00018183845891875104
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000058434995685
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000136406711677766
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000059490953415722
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00004287473277516656
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 3.819554666712292
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 1.188031845500004
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 1.3991292731509386
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0022693820742868214
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.6805614884920432
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.5495626774950195
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.7087528966828153
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.18483155469942253
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.12996377831487035
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.04096825415178375
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000306761306262802
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.013189647149473021
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0007068074702327695
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.14903680275645279
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 11.875323115293693
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 3.5245416031747983
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 4.196908342204022
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.009454552329696459
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 2.4511092371507477
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 1.6933093804344288
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -1.942112506839532
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 176.43039321970372
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 176.43039321970372
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 38277.22615641082
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 13664.152415899825
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2563.917954177694
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.6737711288175212
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 9108.285439135117
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 12939.196576069367
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -6251.996974168304
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1459.6069462507676
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 240.87272331393567
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.01676234984086447
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0012186294630245876
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.0641758980757
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 21.652066059452356
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -90.44546318645949
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 176.43039321970372
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 176.43039321970372
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 36641.188816940354
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13246.849299366184
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2563.901191827853
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.672552499354497
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 7911.221263237043
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 12917.544510009915
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -6161.551510981845
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 75.61960284850657
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 75.61960284850657
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1383.987343402261
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 165.2531204654291
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.01676234984086447
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0012186294630245876
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.0641758980757
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 21.652066059452356
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -90.44546318645949
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 305.00925889723885
• Water Use M3 Eq Manufacturing A1 A3 : 184.3610661810587
• Water Use M3 Eq Distribution A4 : 10.454191469661316
• Water Use M3 Eq Installation A5 : 0.3428760471083861
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 19.817034052141725
• Water Use M3 Eq End Of Life C1 C4 : 90.0340911472687
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -141.5614448934145
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=363903&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1186.5401895072466
• Environmental Disclosure : ENVPEP2503029_V1
• EU ROHS Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503029_V1
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
