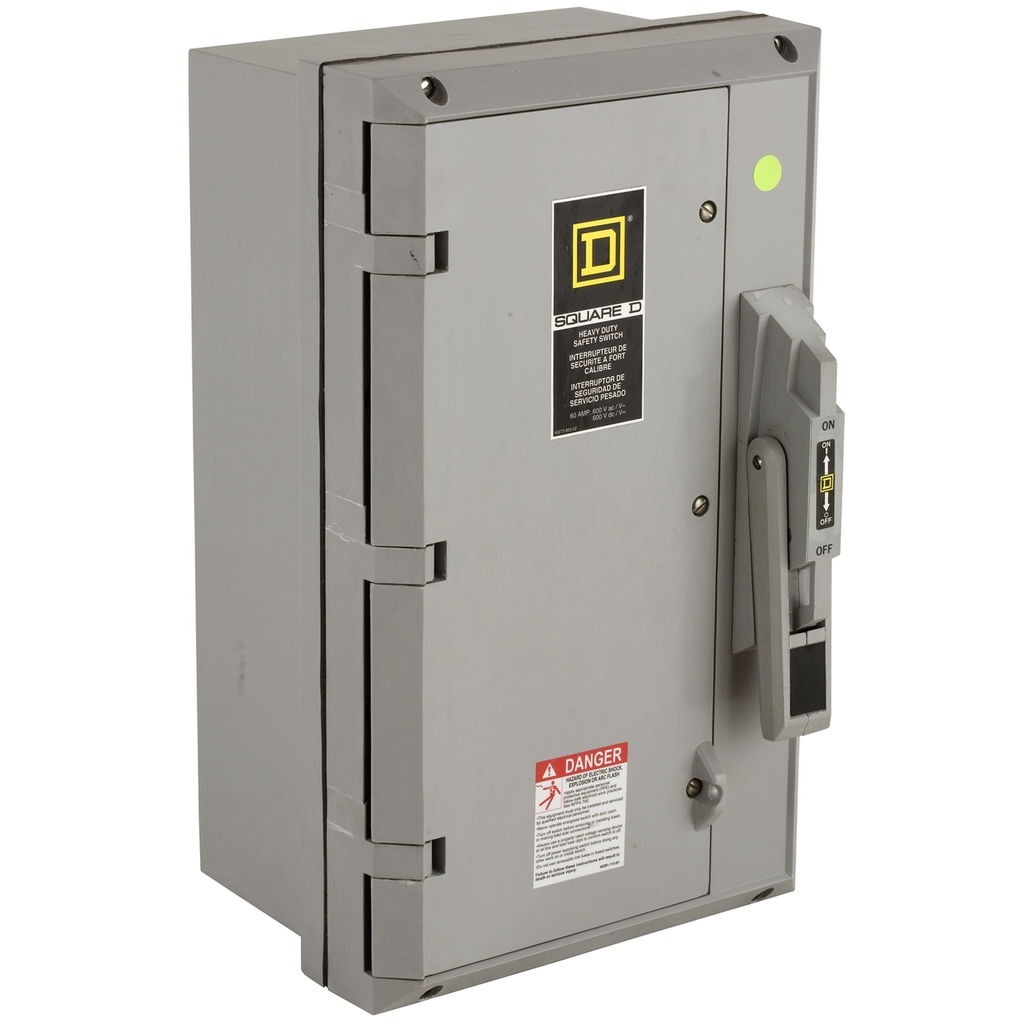

The H361DX is a robust and reliable product offered by Schneider Electric. This product is a heavy-duty safety switch designed for industrial applications. With a durable construction, it is built to withstand demanding environments and provide long-lasting performance. The H361DX features a 600V voltage rating and a 30A current rating, making it suitable for a wide range of electrical systems. It offers a fusible, 3-pole design, allowing for safe and easy disconnection of power. The switch is equipped with a large, visible handle for effortless operation and includes lockout/tagout capabilities for enhanced safety. With its high-quality components and superior design, the H361DX is an ideal choice for industrial settings where safety and reliability are paramount.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=1895&p_File_name=1895.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=1895&p_File_name=1895.dxf
• Motor Power HP
• 5 hp at 480 V AC 50-60 Hz for 3 phase motors
• 15 hp at 480 V AC 50-60 Hz for 3 phase motors
• 7.5 hp at 600 V AC 50-60 Hz for 3 phase motors
• 20 hp at 600 V AC 50-60 Hz for 3 phase motors
• 15 hp at 600 V DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 1.5279016182464396
• 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 34 kg CO2 eq.
• 33.596915223795556
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 80 kg CO2 eq.
• 79.67631955598392
• Nema Degree Of Protection
• NEMA 4X Krydon - compression molded fiberglass reinforced polyester
• Accessories
• 9999TC10
• 9999TC20
• Short Circuit Current
• 10 kA for H or K
• 200 kA for R or J
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 3 kg CO2 eq.
• 3.2480830971283483
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 4.345653376533227
• 4 kg CO2 eq.
• Tightening Torque
• 45-45 lbf.in 13.3-13.3 mm² (AWG 6)
• 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
• 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
• AWG Gauge
• AWG 12...AWG 6 aluminium
• AWG 14...AWG 6 copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 600 V AC/DC

• Important Information Attributes
• B2B Bullet Point 1 : Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
• B2B Bullet Point 2 : Designed to satisfy individual requirements for all customers
• B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• B2B Bullet Point 4 : All feature a quick-make, quick-break operating mechanism, a dual cover
• B2B Bullet Point 5 : Designed to have a mechanical endurance three times greater than NEMA standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• HTML Description : SWITCH FUSIBLE HD 30A 3P NEMA4X KRYDONCurrent Rating : 30 AShort Circuit Current Rating : 10 kA H or K, 200 kA R, J or L Number of Poles : 3Voltage Rating : 600 V AC/DCEnclosure rating: IP 65width : 289.56 mm (11.4 in)Height : 492.76 mm (19.4 in)Depth : 218.44 mm (8.6 in)
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 79.67631955598392
• Distribution Carbon Footprint : 4.345653376533227
• Installation Carbon Footprint : 1.5279016182464396
• Use Carbon Footprint : 3.2480830971283483
• End Of Life Carbon Footprint : 33.596915223795556
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1904
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Number Of Poles : 3
• Package Weight Lbs : 14.606 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 122 kg CO2 eq.
• Wiring Configuration : 3-wire (3P)
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 122.39487287168748
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2305006EN
• Pep Verification Date : 2023-06-06
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 14606
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 6.3801269999999874
• Recyclability Potential In : 89
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; US
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.6780600003928262
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.516728825499462
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.018884031976941974
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0022931564414348303
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.016959643059541257
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.12319434341544622
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.5718154684476606
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 1.2336775384180498
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 1.1110623904871486
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.016852102418156028
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.003534703847560328
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.10222834166518491
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.7610353305222278
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 121.16164508536906
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 78.56525716549677
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 4.345653376533227
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 1.511044851062522
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 3.2445511760065204
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 33.49513851627001
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -63.71645960713514
• Climate Change Total Kg Co2 Eq Total Life Cycle : 122.39487287168748
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 79.67631955598392
• Climate Change Total Kg Co2 Eq Distribution A4 : 4.345653376533227
• Climate Change Total Kg Co2 Eq Installation A5 : 1.5279016182464396
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 3.2480830971283483
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 33.596915223795556
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -64.47766456550325
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.015242877227176712
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.015139285244424122
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000003735417201
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000001991388503622
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000014111630300395
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00010343057902283035
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.016384141598345888
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 4220.073778210894
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1729.0802434552577
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 52.76698215584576
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 5.188703770536453
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 69.27381654858058
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2363.7640322806737
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1312.6862887913908
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1888.3123204209269
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1434.8607447835082
• Ecotoxicity Fresh Water Ctue Distribution A4 : 17.822161661758837
• Ecotoxicity Fresh Water Ctue Installation A5 : 3.644030199029033
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 37.55823515369316
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 394.42714862293775
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1924.08865577034
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000270316897453165
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00002623506671278147
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000005125729432755
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000001481487198919
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000011630723282092
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000061424363339737
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00002795890969649531
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.5580968164124472
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.5580968164124472
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0038104603703122035
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0001447900885435218
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000050886233414697
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00002254566106498063
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00000515863836821172
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0036374571200013424
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0001323097197832024
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1190.589556066219
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1176.7295703218565
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.003600351028715989
• Hazardous Waste Disposed Of Kg Installation A5 : 0.004999568722384823
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 13.851385824611349
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1314.8914507877776
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00017834091069842808
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00017819829278878043
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000006131410524
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000013555809303173
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000037919989499
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000661930261569
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0001939015906207419
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000551604098411984
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000451994598817071
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000001147765615639
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000342415010381
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000156078805211
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000096558530916783
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000559729484429003
• Impacts Related To Land Use Soil Quality Total Life Cycle : 10.999121910008814
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.5430621069715984
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.04510691384225459
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 9.410952889194961
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 252.94006301517857
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 249.71339261006008
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.009634861645751152
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.02138795101687761
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 2.8124794921028973
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.38316810035292487
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -353.9285004200664
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.09824354562382258
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0648932527878992
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.008677948560203727
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0008352687165736688
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0020229345795051705
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.02181414097964081
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.03823623680850143
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 12.208292056578658
• Materials For Recycling Kg Manufacturing A1 A3 : 0.04649287220651089
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.20833692030478104
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 11.953462264067367
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 1.1024298863607442
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.7441361563768412
• Net Use Of Fresh Water M3 Distribution A4 : 0.00513336268581944
• Net Use Of Fresh Water M3 Installation A5 : 0.004058134177773576
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.002679764880252392
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.34642246824005785
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.741867383938251
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 96.33706440953499
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 93.14477051853044
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0044230460812141065
• Non Hazardous Waste Disposed Of Kg Installation A5 : 2.3217811404263884
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.476284914674142
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.38980478982281946
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -67.02632294978865
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00002143288161918038
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000173953355945736
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000383486152563942
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000002738217502052
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000001351976594271
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000016178255800414
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000963719402863194
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.37622581498907043
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.2519397580871813
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.03083198133601837
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0019169218792820832
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.006695666223683587
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.08484148746290511
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.1618207242694622
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.041186538776010743
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.03992191352689319
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0008639994329688994
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00020284733914262222
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00009250743585544172
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00010527104115058388
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.03614981430422786
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 1.084311201966951
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.7183739272844387
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.09403531670937891
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0062904366295004266
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.023891840970474535
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.24171968037315827
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.4393785277800514
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 31.42779914465747
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 31.42779914465747
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 4273.074442295192
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1768.7519559094837
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 52.76910250391921
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 5.503787494250938
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 79.74114641872531
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2366.3084499688125
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1336.519001136955
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 52.942522237927335
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 39.684434542666935
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003535044308053767
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.31521094459889215
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 10.467865009708651
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.474658236522044
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -23.84543443400472
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 31.42779914465747
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 31.42779914465747
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4188.6290162816495
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1697.6354815260127
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 52.76698215584576
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.188703770536453
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 69.27381654858058
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2363.7640322806737
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1312.6862887913908
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23.033341121873843
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 23.033341121873843
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.7500476027014713
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 29.908120942016755
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.65003324675636
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003535044308053767
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.31521094459889215
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 10.467865009708651
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.474658236522044
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -20.096234970532628
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=364305&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 122.39487287168748
• Environmental Disclosure : ENVPEP2305006EN
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2305006EN
• Pep Verification Date : 2023-06-06
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
