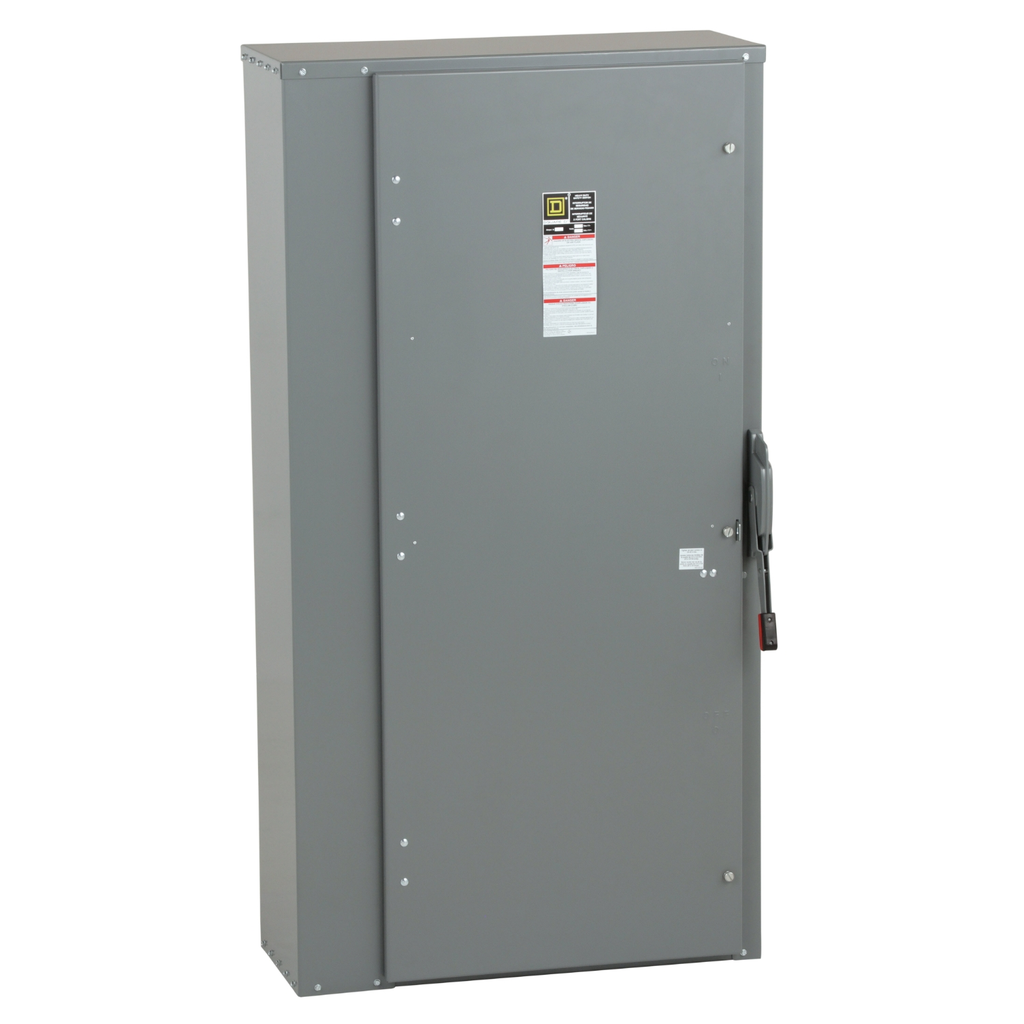

Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1

Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1

SQDH368 H368 785901195467
10703.16 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1-1
  • Depth: 17.75 in
  • Fuse Type: L
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure. It is UL listed with the file E2875.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure. It is UL listed with the file E2875.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL listed file E2875
  • Complementary Attributes
    • Line Rated Current : 1200 A
    • Ue Rated Operational Voltage : 600 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Motor Power Hp : 500 hp at 600 V AC 50-60 Hz for 3 phase motors, 200 hp at 480 V AC 50-60 Hz for 3 phase motors, 500 hp at 480 V AC 50-60 Hz for 3 phase motors, 250 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 600 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.8059580189361879, 0.8 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 0.9645561446428399
    • Carbon Footprint Of The Installation Phase A5 : 0.07194881770817735, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 4.014002140520345
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 462 kg CO2 eq., 2461.5930719381868
    • Medium Desc : Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Awg Gauge : AWG 3/0...750 kcmil copper or aluminium
    • Device Application : heavy application
    • Device Composition : none
    • Disconnector Device Type : fusible disconnect
    • Electrical Connection : lugs
    • Energy Efficiency Optimized : False
    • Fuse Type : L
    • Halogen Free Status : Halogen free plastic parts product
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Short Circuit Current : 200 kA maximum for L
    • Software Version : v6.2.4
    • Sustainable Packaging : Yes
    • Tightening Torque : 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
    • Total Lifecycle Carbon Footprint : 2 467 kg CO2 eq.
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2503030EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-03-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Height Nominal : 69.13 in
    • Width Nominal : 36.62 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : Nej
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 2467.4495370599943
    • Environmental Disclosure : ENVPEP2503030EN
    • Eu Rohs Directive : Compliant By Exemption
    • Halogen Content Performance : Halogen free plastic parts product
    • Nema Degree Of Protection : NEMA 1 steel
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503030EN
    • Pep Verification Date : 2025-03-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 17.75 in
