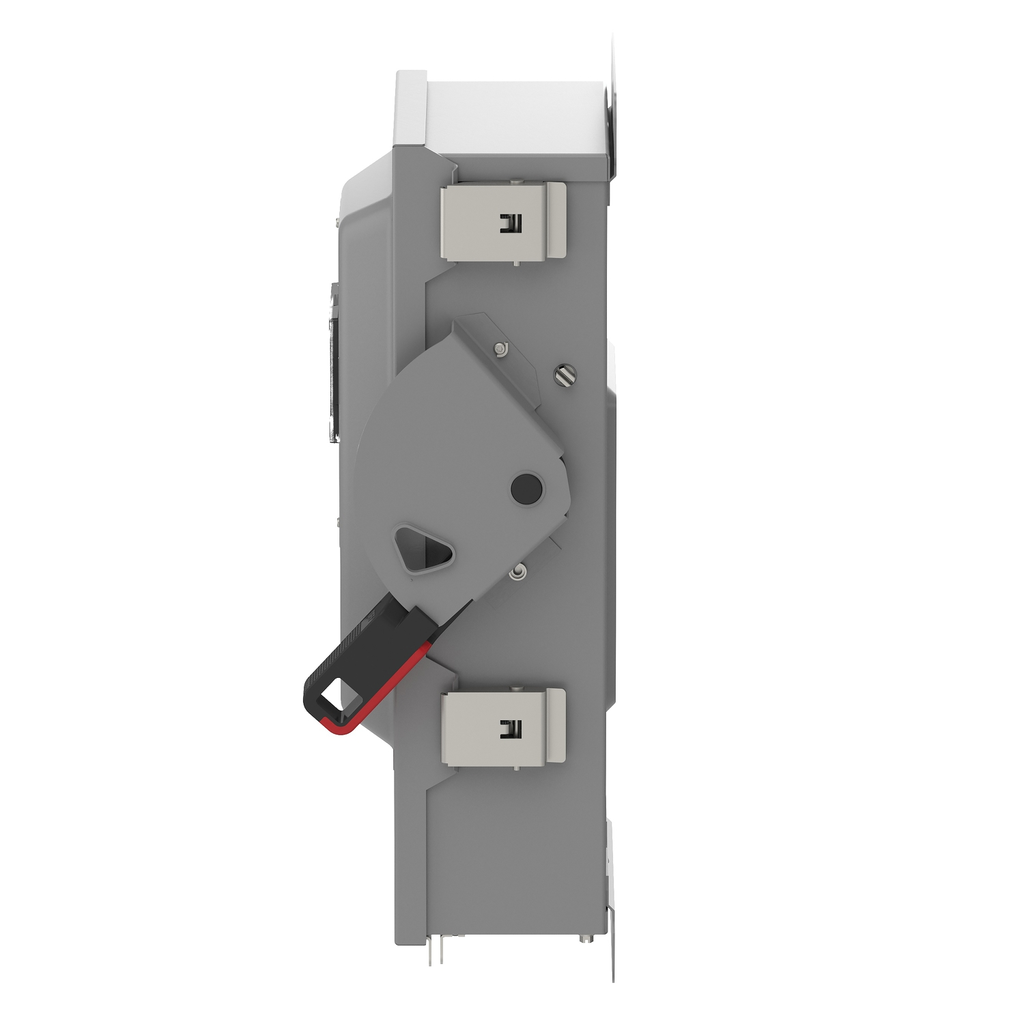

Safety switch, heavy duty, fused, viewing window, Type 12, 600V, 100A, 3 pole, ground lugs

HDSS TYPE12 600V 100A 3P FUSE

SQDVH363AWKGL 3606485894225
1232.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fused, viewing window, Type 12, 600V, 100A, 3 pole, ground lugs-2
  • Certifications: UL Listed File E2875
  • Depth: 7.15 in
  • Fuse Type: H Or K, R Or J
  • Height: 20.49 in
  • Line Rated Current: 100 A
  • Mounting Type: Surface
  • Net Weight: 9.52 kg
  • Number of Poles: 3
  • Short Circuit Current: 10 kA, 200 kA
  • Width: 8.92 in
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
QTY
  • Product Description
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP2303036EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 20.49 in
    • Device Mounting : surface
    • Tightening Torque : 50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
    • Condition Of Use : suitable service entrance for USA || suitable service entrance for Mexico
    • Services : factory installation
    • Net Weight : 9.52 kg
    • Short-Circuit Current : 10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
    • Fuse Type : H or K || R or J
    • Electrical Connection : lugs
    • Awg Gauge : AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper
    • Wiring Configuration : 3-wire
    • Width : 8.92 in
    • Depth : 7.15 in
  • Specifications
    • Disconnector Device Type : fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Nema Degree Of Protection : NEMA 12 galvannealed steel
    • Line Rated Current : 100 A
    • Device Composition : field installed kit available
    • Device Application : heavy application
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Environment
    • Product Certifications : UL listed file E2875
