Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 3R, bolt on provision

SAFETY SWITCH, GENERAL DUTY, N

SQDDU322RBUP DU322RBUP 785901593393
147.48 / EA
http://schema.org/OutOfStock

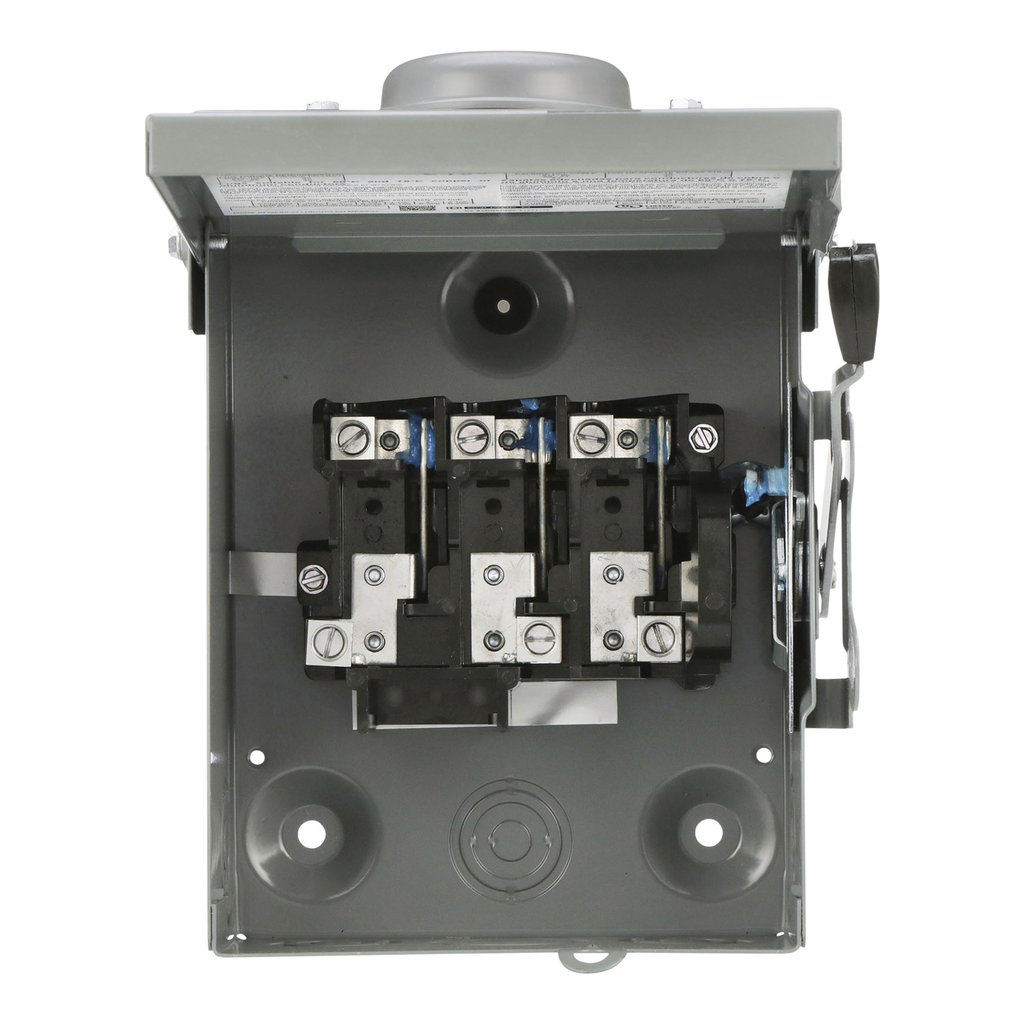

Mayer-DDS-Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 3R, bolt on provision-2
  • Depth: 3.75 in
  • Height: 9.63 in
  • Net Weight: 2.4 kg
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Weight: 2.4 kg
  • Width: 7.75 in
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12/AWG 3, aluminium & AWG 14/AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.
QTY
  • Product Description
  • Features
  • Specifications
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12/AWG 3, aluminium & AWG 14/AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1310005EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Height : 9.63 in
    • Device Mounting : surface
    • Tightening Torque : 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
    • Net Weight : 2.4 kg
    • Electrical Connection : lugs
    • Awg Gauge : AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper
    • Width : 7.75 in
    • Wiring Configuration : 3-wire
    • Depth : 3.75 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 7.75 in
    • Height : 9.63 in
    • Weight : 2.4 kg
    • Disconnector Device Type : non-fusible disconnect switch
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : general duty
    • Nema Degree Of Protection : NEMA 3R
    • Line Rated Current : 60 A
    • Motor Power Hp : 10 hp at 240 V AC 60 Hz for 1 phase motors || 15 hp at 240 V AC 60 Hz for 3 phase motors
    • Device Composition : none
    • Device Application : residential
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 240 V AC
