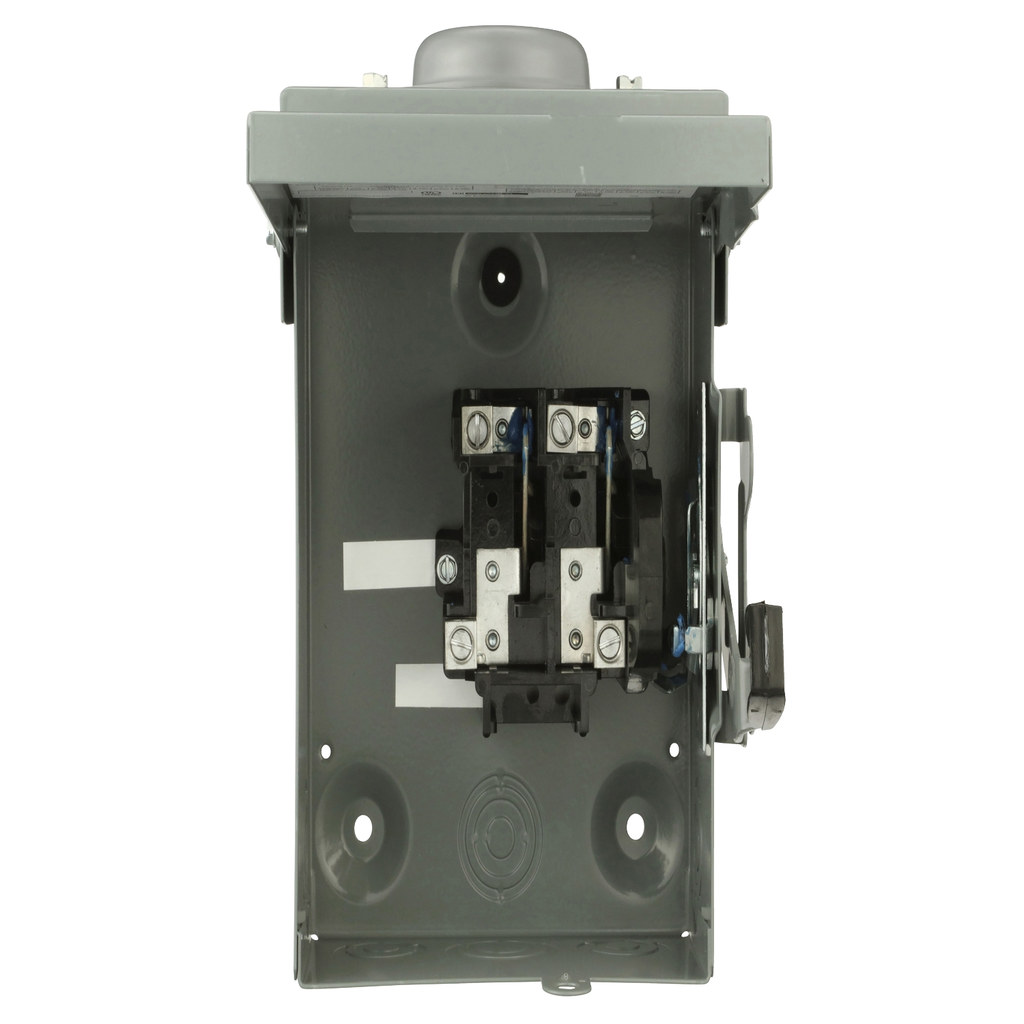

Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 60A, Type 3R with bolt on hub prov

SWITCH - 60A 240V 3SN RT

SQDDU222RB DU222RB 785901491491
285.40 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 60A, Type 3R with bolt on hub prov-2
  • Warranty Length: 18 mth
What is the DU222RB general duty safety switch used for? The DU222RB general duty safety switch is a non-fusible disconnect switch designed for residential and commercial applications. It supports 2-pole, 2-wire configurations and is rated for 240V AC and 60A, making it suitable for a wide range of light to medium-duty electrical disconnect needs. How is the DU222RB safety switch installed and configured? The DU222RB is surface-mounted and includes a factory-installed neutral. It uses lug terminals and supports a range of wire sizes with appropriate torque settings. Its rainproof enclosure makes it suitable for outdoor installations. What are the electrical specifications of the DU222RB safety switch? This safety switch supports a rated operational voltage of 240V AC and a rated current of 60A. It accommodates AWG 12 to AWG 3 aluminum and AWG 14 to AWG 3 copper conductors. The short-circuit current rating is up to 50 kA, depending on the fuse type upstream (H, K, or R). What are the benefits of the DU222RB within the general duty safety switch range? As part of Schneider Electric’s general duty safety switch series, the DU222RB offers flexible fuse compatibility, broad motor support, and reliable performance for residential and light commercial applications where durability and economy are prime considerations. What motor loads can the DU222RB safety switch handle? The DU222RB supports this motor load: 10 hp at 240V AC for 1-phase motors.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 240 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 12...AWG 3 aluminium, AWG 14...AWG 3 copper
    • Tightening Torque : 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10), 35-35 lbf.in (AWG 14...AWG 10), 45-45 lbf.in 8.37-8.37 mm² (AWG 8), 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4), 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
    • Carbon Footprint Of The Distribution Phase A4 : 0, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.120661850651255
    • Carbon Footprint Of The Installation Phase A5 : 0.13414098005939226, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 13.647323245602516
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 45 kg CO2 eq., 44.756724427285924
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-20
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Motor Power HP : 10 hp at 240 V AC 60 Hz for 1 phase motors
    • Package Weight Lbs : 2.100 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : general duty
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
    • Wiring Configuration : 2 wires
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1310005EN
    • Pep Verification Date : 2025-09-24
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : AMAREL RIVERA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 61.65885050359908
    • Environmental Disclosure : ENVPEP1310005EN
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1310005EN
    • Pep Verification Date : 2025-09-24
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
