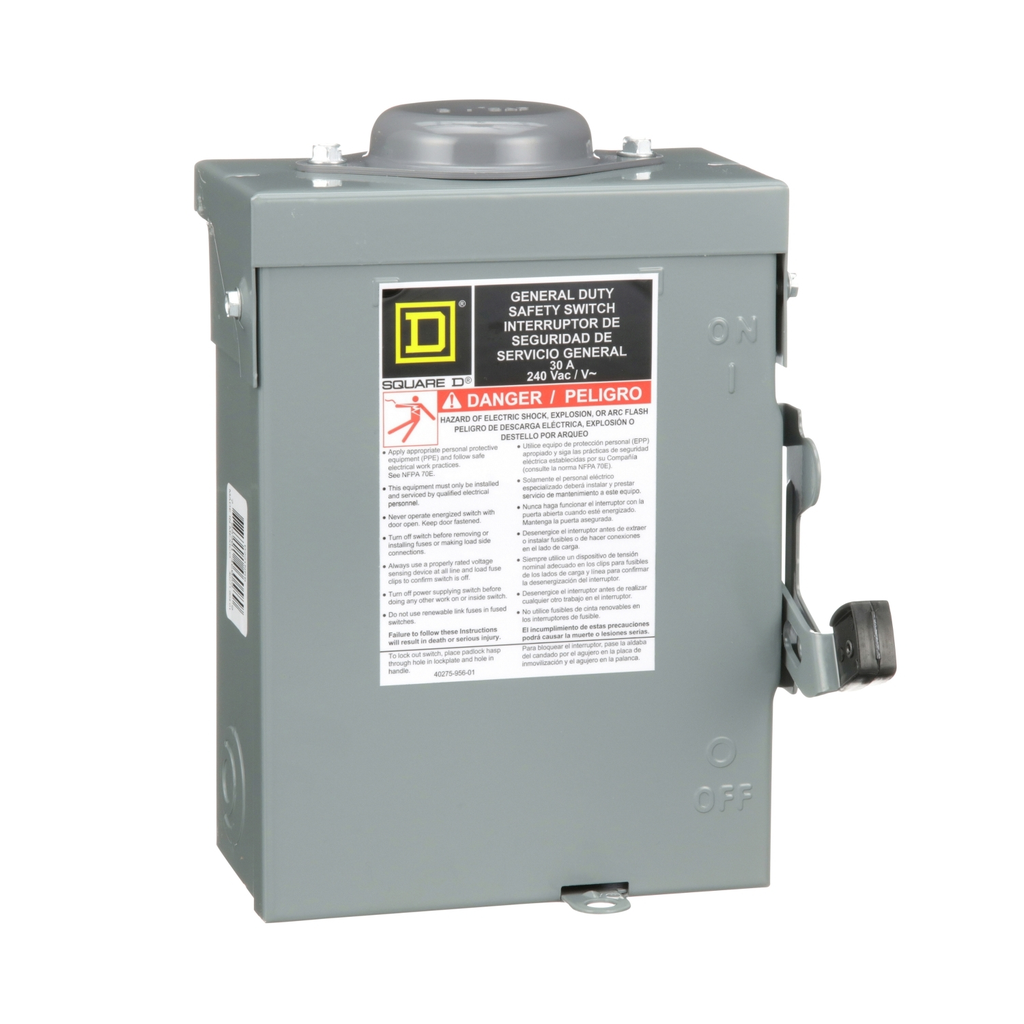

What is the DU221RB general duty safety switch used for? The DU221RB general duty safety switch is a non-fusible disconnect switch designed for residential and commercial applications. It supports 2-pole, 2-wire configurati

• Motor Power Hp
• 3 hp at 240 V AC 60 Hz for 1 phase motors
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.1350352532597882
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 3 kg CO2 eq.
• 3.14146626298893
• Ue Rated Operational Voltage
• 240 V AC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 14 kg CO2 eq.
• 13.7383054005732
• Accessories
• PK3GTA1
• B075
• B100
• B125
• B150
• B200
• B250
• H075
• H100
• H200
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 2 kg CO2 eq.
• 2.220075616432834
• Persona Type Ids
• LC
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 0
• 0 kg CO2 eq.
• Tightening Torque
• 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6)
• AWG Gauge
• AWG 14...AWG 6 copper
• AWG 12...AWG 6 aluminium
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Conformance Attributes
• Product Certifications : UL listed file E2875
• Complementary Attributes
• Line Rated Current : 30 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Designed for residential and commercial applications
• B2B Bullet Point 2 : Provides over-current and short circuit protection
• B2B Bullet Point 3 : Excellent for disconnecting lighting, air condition, and appliances
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• Html Descr : Single Throw Safety SwitchLine Rated Current: 30AEnclosure Rating: NEMA 3RDisconnect Type: Non-fusible disconnectMounting Type: SurfaceNumber of Poles: 2Electrical Connection: LugsDuty Rating: General duty
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 13.7383054005732
• Distribution Carbon Footprint : 0
• Installation Carbon Footprint : 0.135035253259788
• Use Carbon Footprint : 2.22007561643283
• End Of Life Carbon Footprint : 3.14146626298893
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1904
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : residential
• Device Composition : none
• Disconnector Device Type : non-fusible disconnect switch
• Electrical Connection : lugs
• Number Of Poles : 2
• Package Weight Lbs : 2.109 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : general duty
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 19 kg CO2 eq.
• Wiring Configuration : 2 wires
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 19.234882533254755
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=458139&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 19.2348825332548
• Environmental Disclosure : ENVPEP1310005EN
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 9.63 in
• Width : 7.75 in
• Depth : 3.75 in
