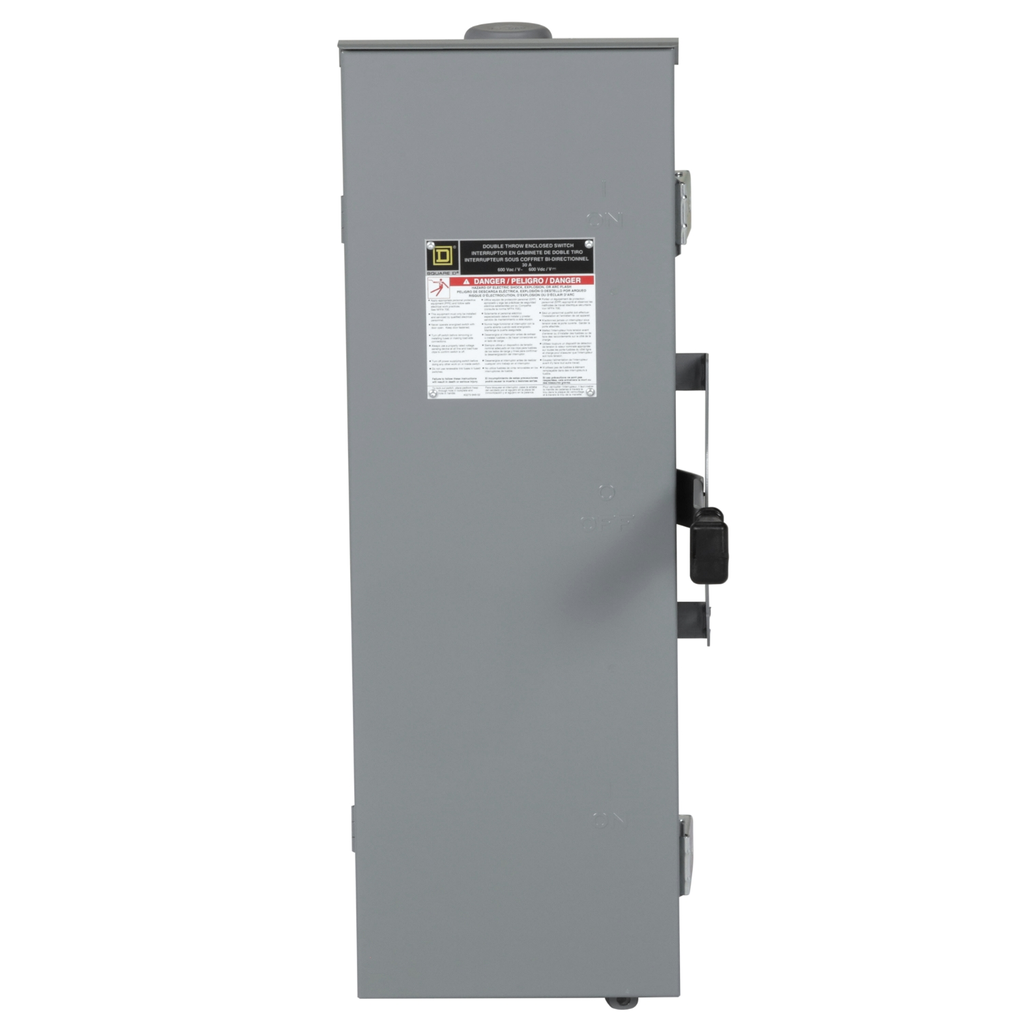

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing instal

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.07311666834707395
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 40 kg CO2 eq.
• 39.74505511064388
• Ue Rated Operational Voltage
• 600 V AC
• 600 V DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 83 kg CO2 eq.
• 82.91903302626504
• Accessories
• B075
• B100
• B125
• B150
• B200
• B250
• EIK1
• EIK2
• SN0310
• Short Circuit Current
• 10 kA H or K
• 200 kA R, J or T
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 13 kg CO2 eq.
• 13.00583968420949
• Persona Type Ids
• LC
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 32.27948031645199
• 32 kg CO2 eq.
• Tightening Torque
• 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10)
• 40-40 lbf.in 8.37-8.37 mm² (AWG 8)
• 45-45 lbf.in 1
• AWG Gauge
• AWG 12...AWG 2 aluminium
• AWG 14...AWG 2 copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Fuse Type
• H or K
• R, J or T

• Conformance Attributes
• Product Certifications : cULus
• Complementary Attributes
• Line Rated Current : 30 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Reliable performance
• B2B Bullet Point 2 : Long term durability
• B2B Bullet Point 3 : Enclosed operating mechanism
• B2B Bullet Point 4 : Meets or exceeds NEMA KS1
• B2B Bullet Point 5 : CSA and UL certifed
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 82.919033026265
• Distribution Carbon Footprint : 32.279480316452
• Installation Carbon Footprint : 7.31166683470739e-02
• Use Carbon Footprint : 13.0058396842095
• End Of Life Carbon Footprint : 39.7450551106439
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1920
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Composition : none
• Disconnector Device Type : non-fusible disconnect switch
• Number Of Poles : 3
• Package Weight Lbs : 16.783 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Double Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 168 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 168.02252480591747
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Double Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=363625&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 168.022524805917
• Environmental Disclosure : ENVPEP2503028_V1
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 3
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Height : 30.5 in
• Width : 10.45 in
• Depth : 6.93 in
