Safety switch, double throw, fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 1

SWITCH FUSIBLE DT 240VAC 100A

SQDDT323 DT323 785901308423
2818.64 / EACH
http://schema.org/OutOfStock

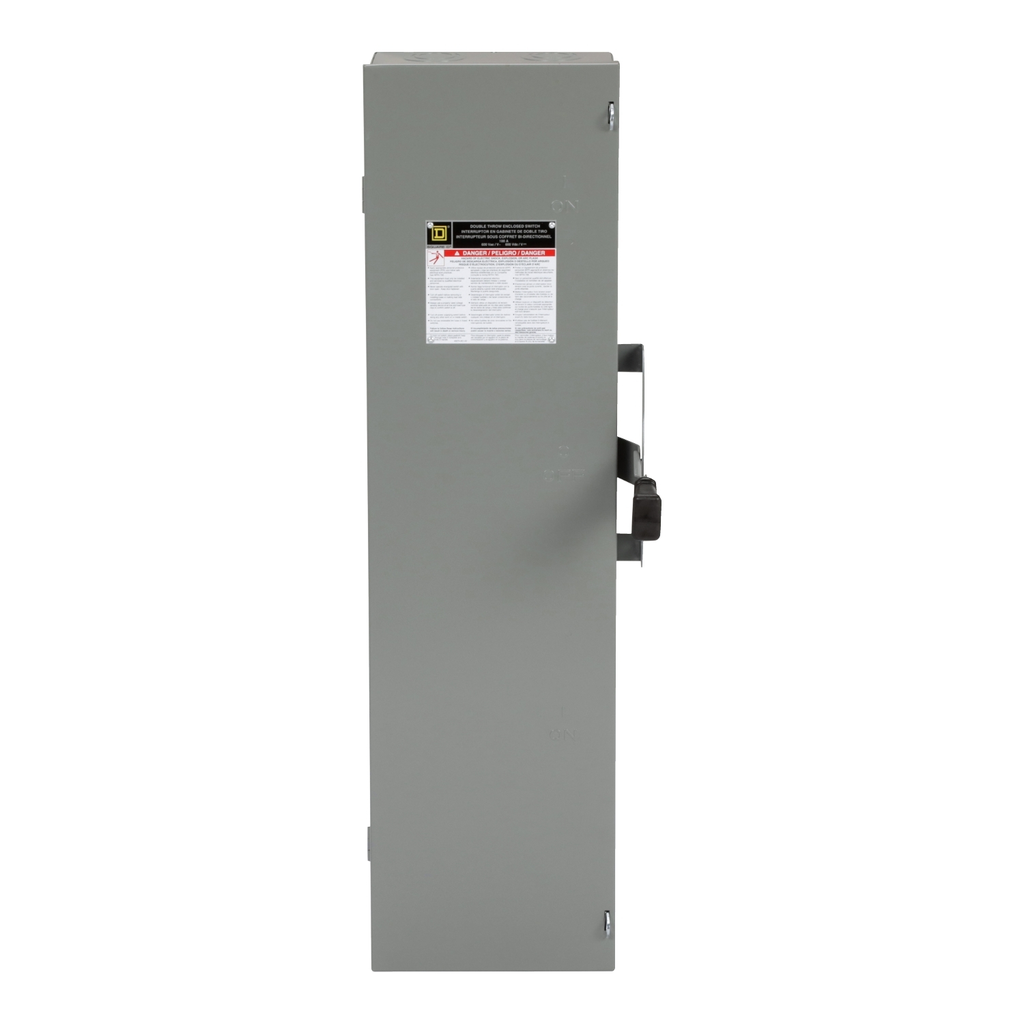

Mayer-DDS-Safety switch, double throw, fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 1-2
  • Warranty Length: 18 mth
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 240 V AC, 250 V DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper
    • Short Circuit Current : 10 kA H or K, 200 kA R or J
    • Tightening Torque : 35-35 lbf.in 2.06-5.26 mm² (AWG 14...AWG 1/0), 40-40 lbf.in 8.37-8.37 mm² (AWG 8), 45-45 lbf.in 13.30-53.48 mm² (AWG 8), 50-50 lbf.in 26.67-53.48 mm² (AWG 6...AWG 4)
    • Carbon Footprint Of The Distribution Phase A4 : 39.25929525230399, 39 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 48 kg CO2 eq., 48.33915658216426
    • Carbon Footprint Of The Installation Phase A5 : 0.0889267374307617, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 101 kg CO2 eq., 100.84867438074967
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 145 kg CO2 eq., 144.50932982454987
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 20.412 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Double Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 333 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503028EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : AMAREL RIVERA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 333.0453827771986
    • Environmental Disclosure : ENVPEP2503028EN
    • Nema Degree Of Protection : NEMA 1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503028EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Double Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
