Meter socket, horizontal ganged, ringless socket, 200A, 3 position, 4 jaws, 600 VAC max, overhead/underground, no bypass

HORIZONTAL MTR RINGLESS OH/UG

SQDUT3R2332T UT3R2332T 785901205210
1174.81 / EA
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, horizontal ganged, ringless socket, 200A, 3 position, 4 jaws, 600 VAC max, overhead/underground, no bypass-2
  • Country of Origin: USA
  • Number of Jaws: 4 Without Jaw Release
  • Warranty Length: 18 mth

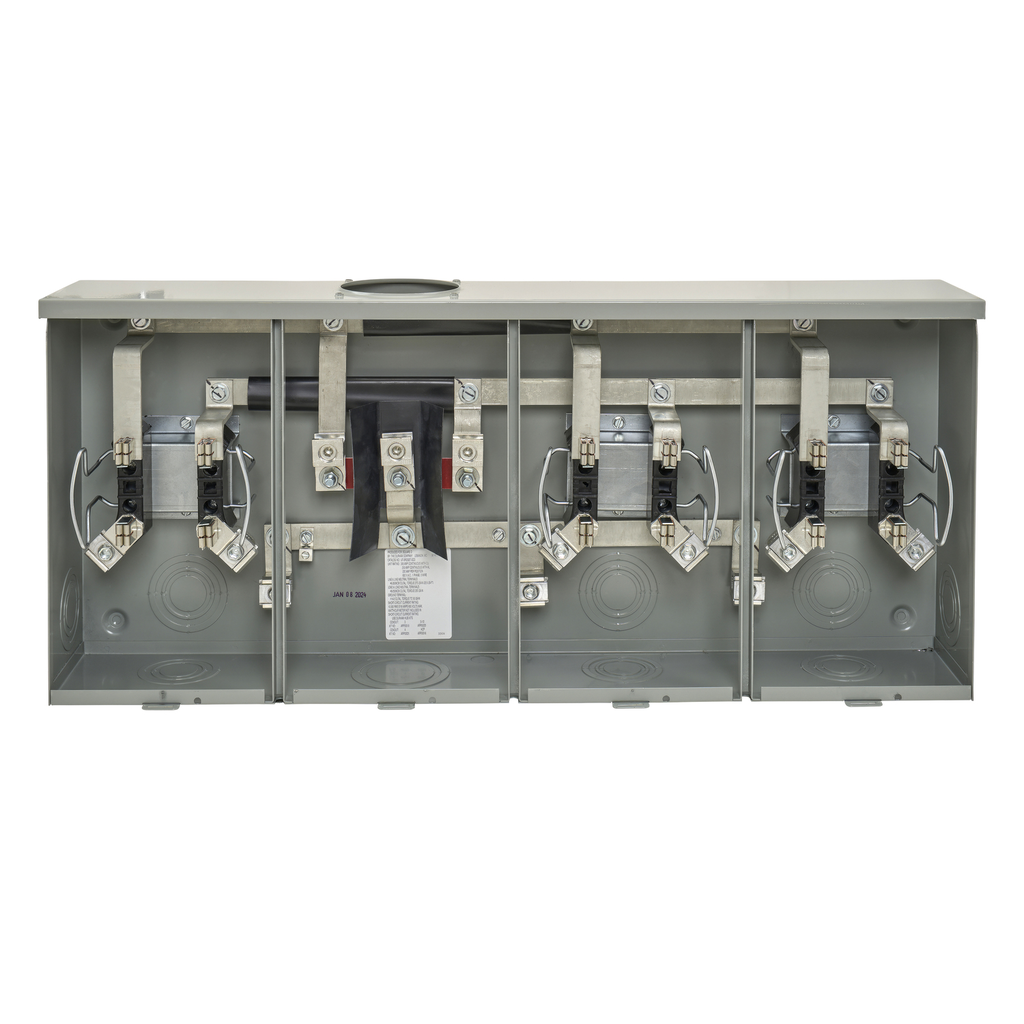

Square D™ Horizontal Ganged Meter Sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. Horizontal Ganged Meter Sockets are 600 VAC and main lugs only. This product is a ringless type with no bypass, underground or overhead service feed, and has 2 positions. It also is rated at 200A with 4 jaws. When using the interior option, this product comes with main lugs rated at 205A. UL Listed rated.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Horizontal Ganged Meter Sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. Horizontal Ganged Meter Sockets are 600 VAC and main lugs only. This product is a ringless type with no bypass, underground or overhead service feed, and has 2 positions. It also is rated at 200A with 4 jaws. When using the interior option, this product comes with main lugs rated at 205A. UL Listed rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Eu Rohs Directive : Under investigation
  • Complementary
    • Product Certifications : UL Listed
    • Service Feed Location : UG || OH
    • Bypass Type : no bypass
    • Hub Type : A ACP closing plate
    • Nema Degree Of Protection : NEMA 3R
    • Meter Socket Type : ringless
    • Wiring Configuration : 3-wire
    • Number Of Jaws : 4 without jaw release
  • Specifications
    • Country of Origin : United States
    • [Ue] Rated Operational Voltage : 600 V AC
    • Number Of Meter Sockets : 3
    • Product Or Component Type : Meter Socket
    • Phase : 1 phase
    • Line Rated Current : 200 A
  • Contractual warranty
    • Warranty : 18 months
