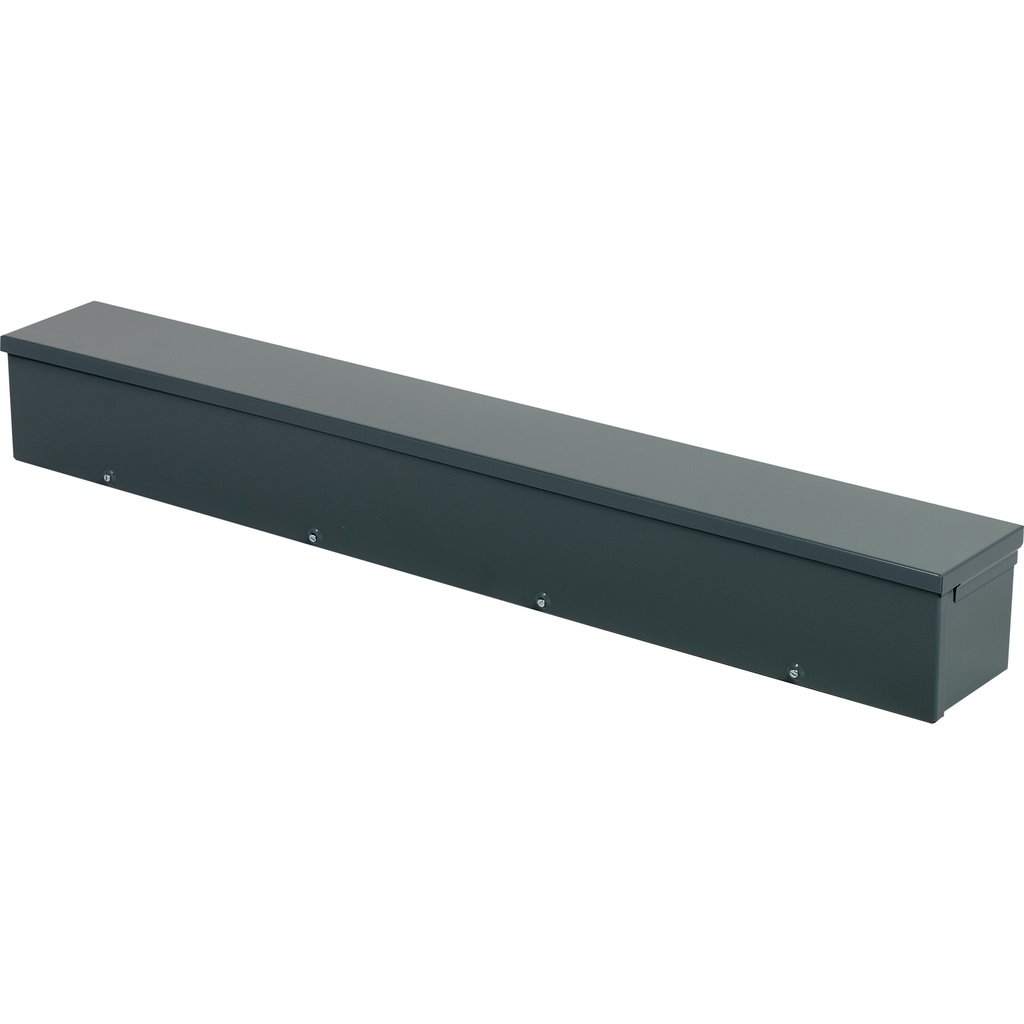

Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 6 inches by 6 inches and 4 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct raintight wireway is UL listed.

• Specifications
• Range Of Product : SQUARE-Duct
• Enclosure Type : rainproof enclosure indoor/outdoor || ice/sleet proof enclosure indoor/outdoor
• Provided Equipment : removable cover sealable
• Busbar Description : straight length
• Device Short Name : RDB
• Contractual warranty
• Warranty : 18 months
• Complementary
• Enclosure Material : 16 gauge steel
• Surface Finish : Gray polyester powder ANSI 49
• Trunking Dimension : 6 x 6 in
• Length : 4 ft
• Offer Sustainability
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive : Not applicable, out of EU RoHS legal scope
• Environment
• Product Certifications : UL Listed
• Nema Degree Of Protection : NEMA 3R
