SQUARE D

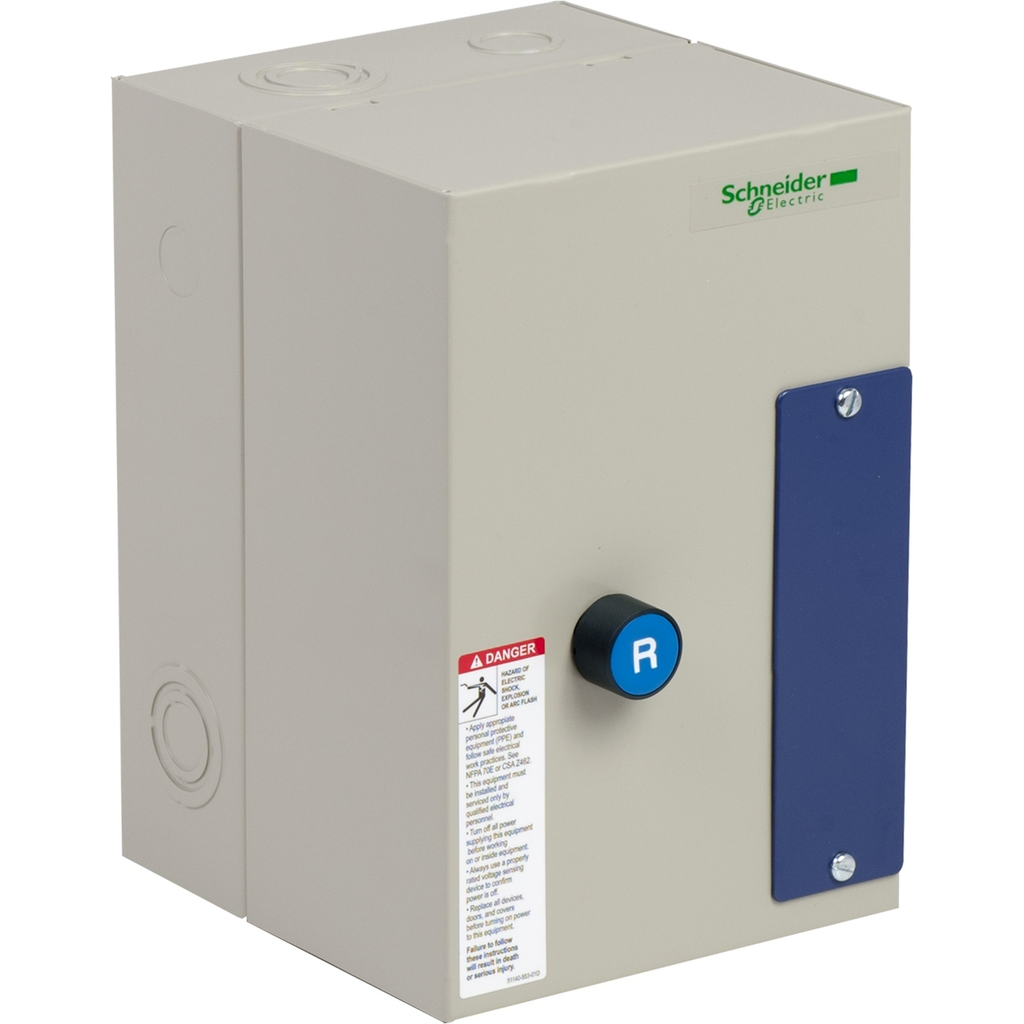

IEC Starter, TeSys LE1, full voltage non reversing, unfused, 12A, 5HP at 460VAC, 120VAC 50/60Hz coil, NEMA 1

IEC Starter, TeSys LE1, full v

SQDLE1D123A62OG70 LE1D123A62OG70 785901300052
198.80 / EA
http://schema.org/OutOfStock
Mayer-DDS-IEC Starter, TeSys LE1, full voltage non reversing, unfused, 12A, 5HP at 460VAC, 120VAC 50/60Hz coil, NEMA 1-1
  • Country of Origin: Mexico
  • IsSustainable: No
  • Warranty Length: 18 mth
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D12G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 3HP at 208VAC, 3HP at 230VAC, 7.5HP at 460VAC and 10HP at 600VAC 3 phase ratings. Contactor has a 1/2HP at 120VAC and 2HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D12G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 3HP at 208VAC, 3HP at 230VAC, 7.5HP at 460VAC and 10HP at 600VAC 3 phase ratings. Contactor has a 1/2HP at 120VAC and 2HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • UC Control Circuit Voltage
    • 600 V AC
  • Nema Degree Of Protection
    • NEMA 1 steel
  • Maximum Horse Power Rating
    • 0.5-0.5 hp 120 V AC, 1 phase
    • 2-2 hp 240 V AC, 1 phase
    • 3-3 hp 208 V AC, 3 phase
    • 3-3 hp 230 V AC, 3 phase
    • 7.5-7.5 hp 460 V AC, 3 phase
    • 10-10 hp 575 V AC, 3 phase
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 120 V AC 50/60 Hz
  • Complementary Attributes
    • IE Rated Operational Current AC : 12 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Combine the requirements of motor overload and short circuit protection in one convenient compact package
    • B2B Bullet Point 2 : Customizable with hundreds of combinations
    • B2B Bullet Point 3 : Reliable build for long mechanical life and electrical endurance
    • B2B Bullet Point 4 : Accepts TeSys Deca accessories and Insta-Kits control units and control power transformers
    • B2B Bullet Point 5 : Ideal for use in construction, industrial markets, building automation
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1924
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Location Of Connection : line
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 4.6 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : full voltage starter
    • Range Of Product : Instakits
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • IE Rated Operational Current AC : 12 A
    • Pep Code : ENVPEP111273EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : full voltage starter
    • Range Of Product : Instakits
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=568299&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111273EN
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111273EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
