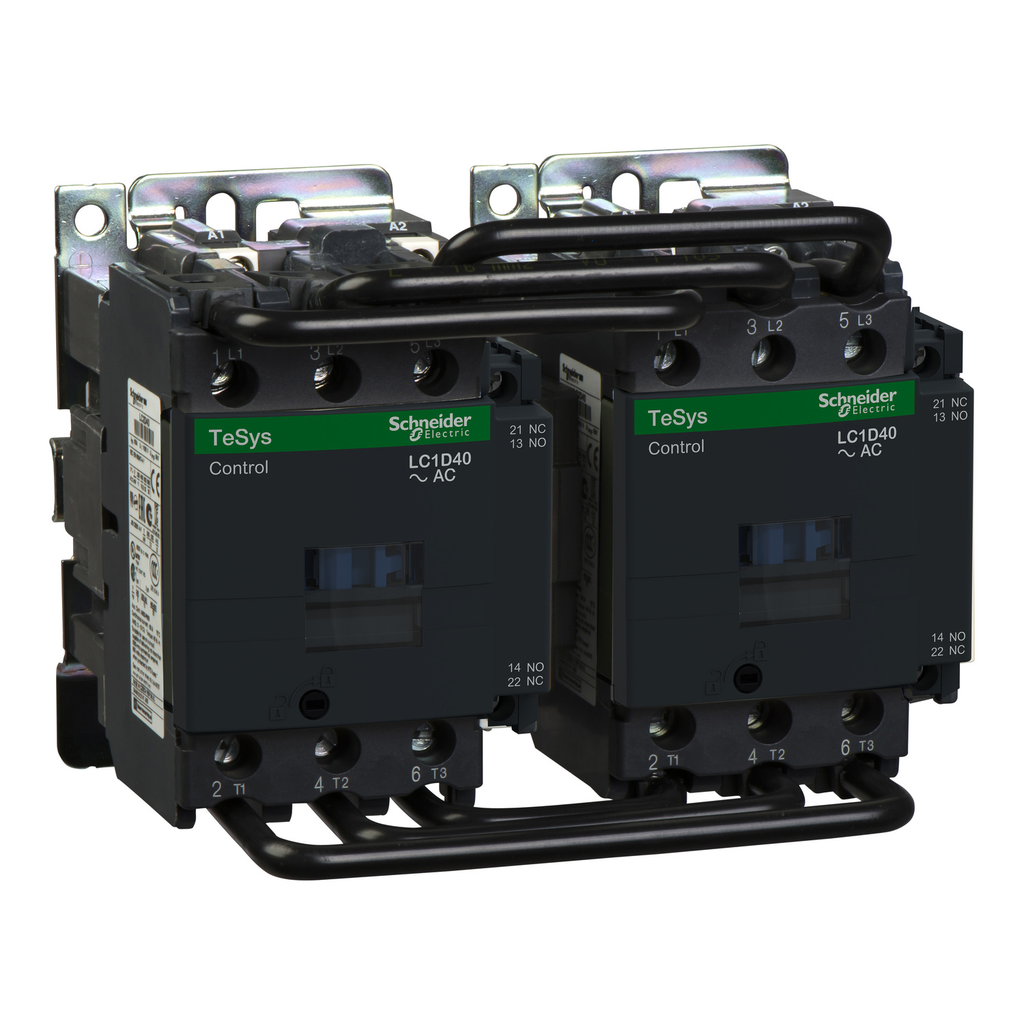

TeSys Deca reversing contactor, 3 poles (3NO),for motor control applications 50A/440V,AC-3/3e 22kW@400V. Pre-wired power connections, with mechanical interlock,without electrical interlocking. It provides a 120V 60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Compact (90mm width), with DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : GL, UL, RINA, GOST, CSA, LROS (Lloyds register of shipping), CCC, DNV, BV, UKCA
• Complementary Attributes
• Irms Rated Making Capacity : 140 A AC for control circuit conforming to IEC 60947-5-1, 900 A at 440 V for power circuit conforming to IEC 60947
• Ui Rated Insulation Voltage : power circuit 600 V UL, power circuit 690 V IEC 60947-1, control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSA, control circuit 690 V IEC 60947-1
• Maximum Motor Phase Current : 50 A
• Maximum Operating Rate : 3600 cyc/h 60 °C
• Minimum Switching Current : 5 mA for control circuit
• Minimum Switching Voltage : 17 V for control circuit
• Rated Breaking Capacity : 900 A at 440 V for power circuit conforming to IEC 60947
• Uc Control Circuit Voltage : 120 V
• Ue Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Associated Fuse Rating : 10 A gG for control circuit conforming to IEC 60947-5-1, 100 A gG at <= 690 V coordination type 1 for power circuit, 100 A gG at <= 690 V coordination type 2 for power circuit
• Average Impedance : - Ith 80 A 50 Hz for power circuit, - Ith 80 A 50 Hz for power circuit, - Ith 80 A 50 Hz for power circuit, - Ith 80 A 50 Hz for power circuit, - Ith 80 A 50 Hz for power circuit, - Ith 80 A 50 Hz for power circuit
• Hold In Power Consumption In Va : 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 20-20 VA 50 Hz cos phi 0.3 (at 20 °C), 22-22 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
• Inrush Power In Va : 200-200 VA cos phi 0.75 (at 20 °C), 220-220 VA cos phi 0.75 (at 20 °C)
• Insulation Resistance : > 10 MOhm for control circuit, > 10 MOhm for control circuit, > 10 MOhm for control circuit, > 10 MOhm for control circuit
• Mounting Support : plate, rail
• Non Overlap Time : 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
• Operating Time : 12...26 ms closing, 4...19 ms opening
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Tightening Torque : control circuit 1.7 N.m 1-4 mm² flat Ø 6 mm, control circuit 1.7 N.m 1-4 mm² Philips No 2, control circuit 1.7 N.m 1-2.5 mm² flat Ø 6 mm, control circuit 1.7 N.m 1-2.5 mm² Philips No 2, power circuit 5 N.m 1-25 mm² hexagonal, power circuit 8 N.m 1-35 mm² hexagonal
• Utilisation Category : AC-2, AC-3, AC-4
• Connections Terminals : control circuit 2 1-4 mm²flexible without cable end, control circuit 2 1-4 mm²solid without cable end, power circuit 1 1-35 mm²flexible without cable end, power circuit 1 1-35 mm²solid without cable end, power circuit 2 1-25 mm²flexible with cable end, power circuit 2 1-25 mm²flexible without cable end, power circuit 2 1-25 mm²solid without cable end, power circuit 2 1-35 mm²flexible with cable end, power circuit 2 1-35 mm²flexible without cable end, power circuit 2 1-35 mm²solid without cable end, control circuit 1 1-4 mm²flexible with cable end, control circuit 1 1-4 mm²flexible without cable end, control circuit 1 1-4 mm²solid without cable end, control circuit 2 1-2.5 mm²flexible with cable end, power circuit 1 1-35 mm²flexible with cable end
• Ith Conventional Free Air Thermal Current : 10 A (at 60 °C) for control circuit, 80 A (at 60 °C) for power circuit
• Carbon Footprint Of The Distribution Phase A4 : 0.238856956586287, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 4.516970098061568
• Carbon Footprint Of The Installation Phase A5 : 0.34247542195758524, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 12.107909753995546
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 91 kg CO2 eq., 91.01257246376808
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-08
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1926
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Coil Technology : without built-in bidirectional peak limiting diode suppressor
• Compatibility Code : LC2D
• Contactor Application : motor control
• Device Short Name : LC2D
• Fire Resistance : 850 °C IEC 60695-2-1
• Flame Retardance : V1 conforming to UL 94
• Interlocking Type : mechanical
• Mechanical Durability : 6000000 cycles
• Overvoltage Category : III
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : reversing contactor
• Range Of Product : TeSys Deca
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 108 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Rated Thermal Current Ith : 80 A
• Warranty In Months : 18
• Control Circuit Voltage : 120 V
• Inf Motor Phase Current : 50 A
• Pep Code : ENVPEP1102005EN
• Database Version : 2022-01
• Pep Verification Date : 2025-11-20
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 1942
• Reference Lifetime In Y2 : 20
• Energy Consumption On Product Lifetime In Kwh : 1362.18
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; CZ
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In 2 : 76
• Offer Owner Code : 190788
• Height Nominal : 132 mm
• Width Nominal : 165 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 108.21878469436906
• Ambient Air Temperature For Storage : -60-80 °C
• Environmental Disclosure : ENVPEP1102005EN
• Eu Rohs Directive : Compliant
• Operating Altitude : 9842.52 ft (3000 m) without derating
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1102005EN
• Pep Verification Date : 2025-11-20
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : reversing contactor
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC000010
• ETIM 9 : EC000010
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 142 mm
