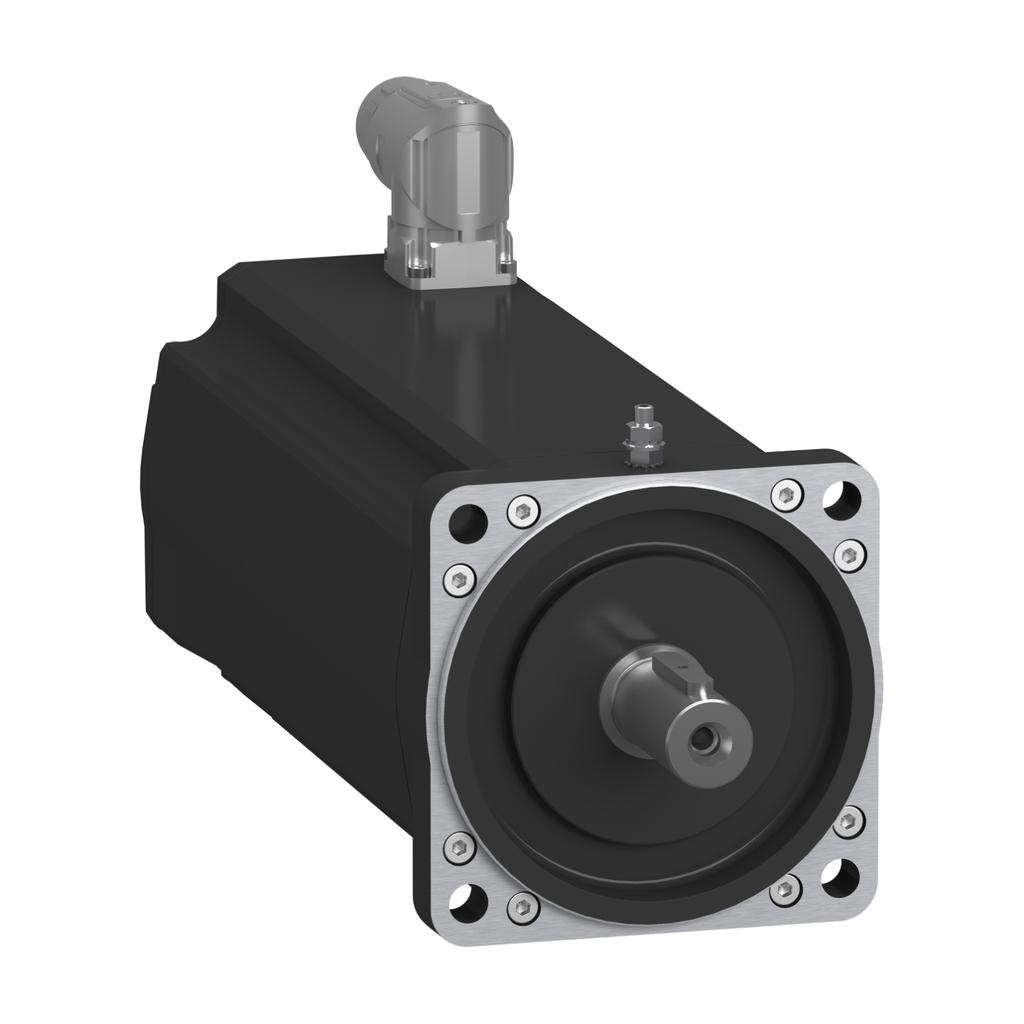

Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and keyed shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end and casing are IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 7.5kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP111049EN
• Packaging Without Single Use Plastic : No
• Scip Number : ead0850d-370a-47c5-8cf7-1d93c2c974a4
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Pvc Free : Yes
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5642.2433959813
• Specifications
• Country of Origin : Germany
• Length : 240.5 mm
• Width : 6 mm
• Weight : 7.5 kg
• Product Or Component Type : servo motor
• Range Compatibility : PacDrive 3
• Device Short Name : SH3.....P
• Complementary
• Circle Diameter Of The Mounting Holes : 115 mm
• Continuous Power : 2400 W
• Maximum Mechanical Speed : 6000 rpm
• Maximum Radial Force Fr : 90 N 3000 rpm || 130 N 1000 rpm || 105 N 2000 rpm
• Encoder Type : absolute multiturn Hiperface DSL
• Mounting Support : international standard flange
• Rotor Inertia : 3.22 kg.cm²
• Number Of Motor Poles : 4
• Back Emf Constant : 77 V/krpm 20 °C
• Maximum Axial Force Fa : 20 N
• Centring Collar Depth : 3.5 mm
• Holding Brake : without
• Speed Feedback Resolution : 262144 points/turn x 4096 turns
• Shaft Length : 40 mm
• Output Current 3S Peak 2 : 15 A
• Phase : three phase
• Length : 240.5 mm
• Net Weight : 7.5 kg
• Maximum Current Irms : 28.3 A
• Sizing Reference : SH31003P
• Centring Collar Diameter : 95 mm
• Stator Inductance : 9.4 mH
• Motor Flange Size : 100 mm
• [Us] Rated Supply Voltage : 115...480 V
• Peak Stall Torque : 28.3 N.m 115...480 V three phase
• Number Of Mounting Holes : 4
• Shaft Diameter : 19 mm
• Key Width : 6 mm
• Nominal Output Power : 1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase
• Mounting Holes Diameter : 9.0 mm
• Type Of Cooling : natural convection
• Ip Degree Of Protection : IP65 motor: conforming to IEC 60034-5 || IP65 shaft bushing: conforming to IEC 60034-5
• Shaft End : parallel key
• Nominal Speed : 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
• Electrical Connection : rotatable right angled connector
• Stator Resistance : 1.43 Ohm
• Continuous Stall Current : 6.6 A
• Nominal Torque : 7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase
• Network Number Of Phases : 3
• Torque Constant : 1.22 N.m/A 120 °C
• Continuous Stall Torque : 8 N.m 115...480 V three phase
• Temperature Copper Hot : 130 °C
