variable speed drive, SFlex Altivar 212, 208V AC, 7.5hp, enclosed drive

SFLEX 7.5HP 208V LINE CONTACTO

SQDSFD212GG2YB07D07 SFD212GG2YB07D07 785901260615
2623.26 / EA
http://schema.org/OutOfStock

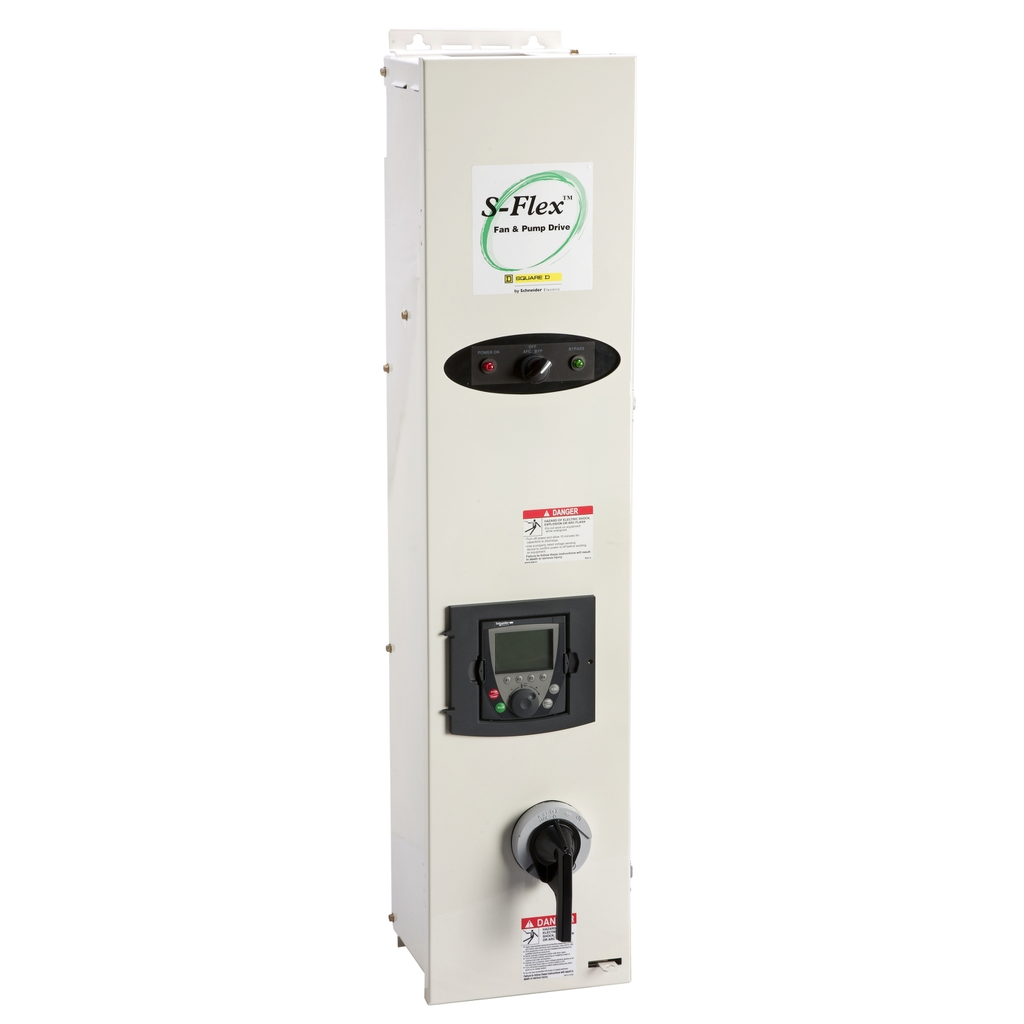

Mayer-DDS-variable speed drive, SFlex Altivar 212, 208V AC, 7.5hp, enclosed drive-1
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Nominal Output Current
    • 25.3 A 208 V
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-05-21
    • HTML Description : **Lead times may be less than what is displayed**S-Flex AC drives are packaged adjustable speed drive solutions with an AC line disconnect. The S-Flex utilizes the Altivar 212 drive chassis mounted in a ferrous metal enclosure, reducing Radio Frequency Interference (RFI). Some models are normally in stock for quick delivery. Contact Customer Care to check stock availability. Additional option combinations can be confugured using the VFDselect tool. Download from iPortal, Links, Selection Tools.Standard Features: NEMA Type 1 Enclosure, Very Narrow ConstructionCircuit Breaker Disconnect, Thru Door, Pad LockableBasic LED display and keypad, Door mountedFused control power transformer, 120vac SecondaryMeets I/O requirements for typical HVAC applicationsLocal/Remote button, Power On light, VFD Run contact & Fault contactIntegrated Modbus RS-485, BACnet MSTP, Apogee P1 and Metasys N2. (Selectable)Pre-programmed for typical HVAC applicationsProgrammable by free software (Need optional cable kit)Fire/Safety interlock in VFD & optional Bypass modeSmoke purge (Fireman's override) function-selectableBottom conduit knock-outs for easy installationUL508C Listed and Coordinated with NEMA ICS 7.1, NEC 2005 Article 409 compliant100kA short circuit current rating on VFD & optional BypassRHT (Reduced Harmonic Technology) eliminates the need for a line reactor in most applicationsSQD-SFD212GG2YB07D07 Features:Horsepower: 7.5 HPEnclosure Rating: NEMA 1Voltage Rating: 208VBypass: BypassCommunication Options: NoneMisc. Option(s): B07 = Line Contactor, D07 = LCD Text KeypadNOTE: Schneider Electric enclosed VFD packages (S-Flex, E-Flex, M-Flex, etc) are normally manufactured in Monterrey, Mexico, but can be manufactured in the USA when required to comply with the Buy American Act (BAA) or the American Recovery and Reinvestment Act (ARRA). Purchase orders must clearly state *Must be made in the USA to meet BAA or ARRA requirements*, and must be e-mailed or faxed to Customer Care. Do not order via iPortal.
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD System
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Scope Perimeter : Outside of Europe
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Package Weight Lbs : 31.298 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Returnability : Yes
    • Sustainable Packaging : No
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : variable speed drive
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
