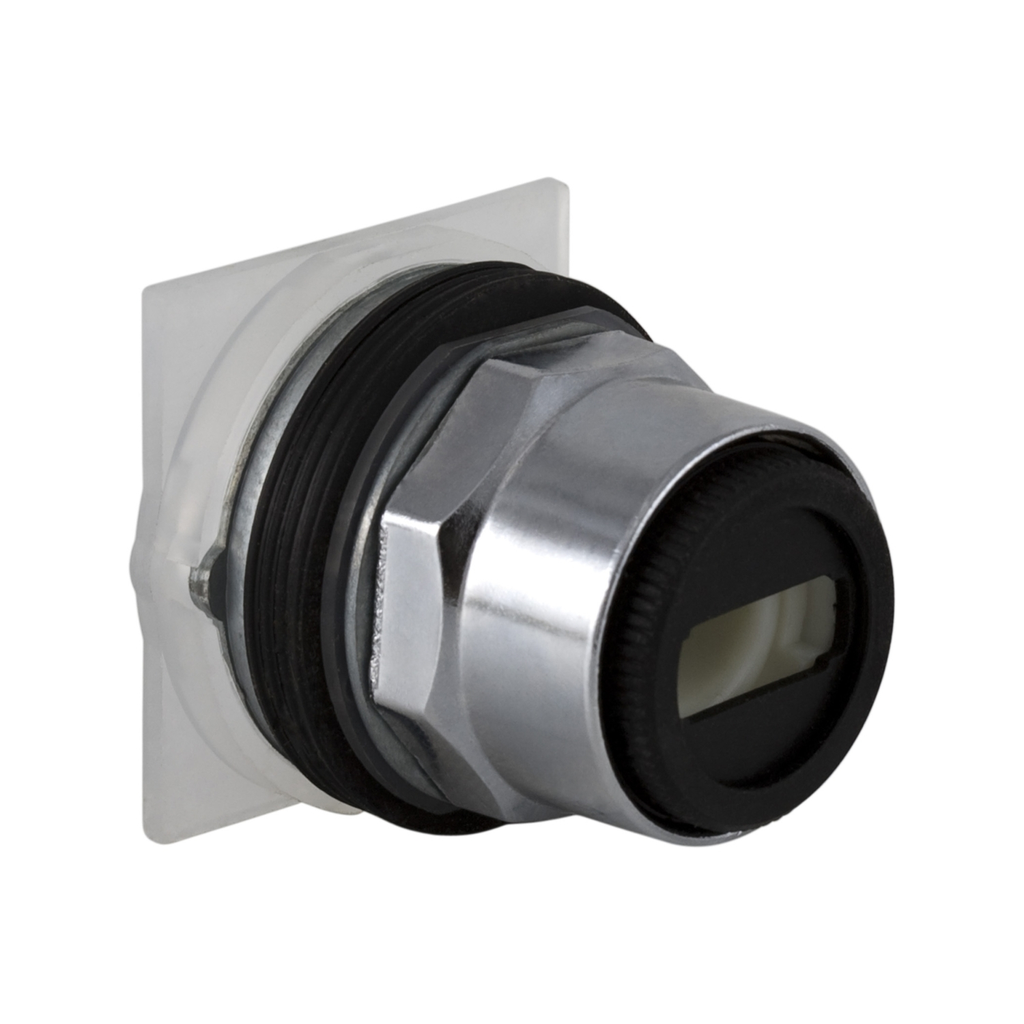

Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, spring return both sides to center, 110 120V

SELECTOR SWITCH OPERATOR 30MM

SQD9001K52J1 9001K52J1 785901856993
320.83 / EA
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, spring return both sides to center, 110 120V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Type Of Operator
    • spring return both sides to centre
  • Light Block Supply
    • via transformer 120 V AC 50/60 Hz
    • via transformer 110 V AC 50/60 Hz
    • via transformer
  • Enclosure Type
    • dust and oil resistant weatherproof enclosure indoor/outdoor
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Operator Profile
    • without handle
    • 1 projecting push-button
  • Product Certifications
    • CSA LR24590 class 3211 03
    • CE
    • UL listed file E42259 CCN NKCR
  • Physical Attributes
    • Cap Operator Or Lens Color : without cap
    • Size : 30 mm
  • Complementary Attributes
    • Us Rated Supply Voltage : 110...120 V
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • ETIM 10 : EC000222
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : without cap
    • Contacts Type And Composition : without contact block
    • Device Short Name : K
    • Mounting Diameter : 30 mm
    • Operator Position Information : 3 positions
    • Package Weight Lbs : 249.476 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : Yes
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=466661&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
