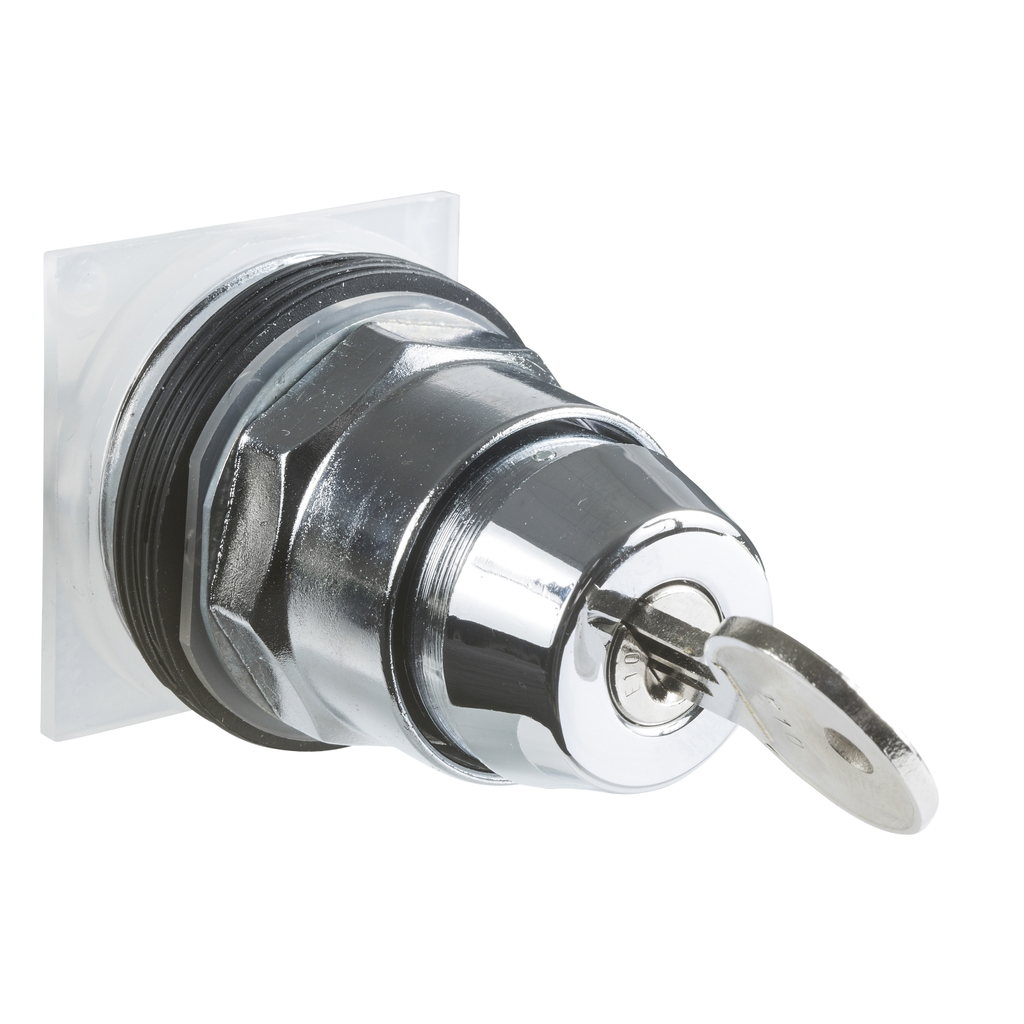

Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key E16, 2 positions, stay put

SELECTOR SWITCH OPERATOR 30MM

SQD9001KS11K1E16 9001KS11K1E16 785901034711
159.53 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key E16, 2 positions, stay put-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Net Weight: 0.245 kg
  • Warranty Length: 18 mth
  • Weight: 0.245 kg
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : JIS C 852 || UL 508 || IEC 60947-1 || JIS C 4520 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Key Number : E16
    • Cam Profile : 5
    • Mounting Diameter : 30 mm
    • Operator Profile : key switch
    • Shape Of Signaling Unit Head : round
    • Net Weight : 0.245 kg
    • Size : 30 mm
    • Device Presentation : basic element
    • Key Withdrawal Position : left
    • Contacts Type And Composition : without contact block
    • Bezel Material : metal
    • Operator Position Information : 2 positions
    • Mechanical Durability : 500000 cycles
    • Type Of Operator : stay put
  • Specifications
    • Country of Origin : Mexico
    • Weight : 0.245 kg
    • Range Of Product : Harmony 9001K
    • Type Of Operator : maintained
    • Product Or Component Type : head for key selector switch
    • Operator Profile : black key switch
    • Device Short Name : 9001KS
