SQUARE D

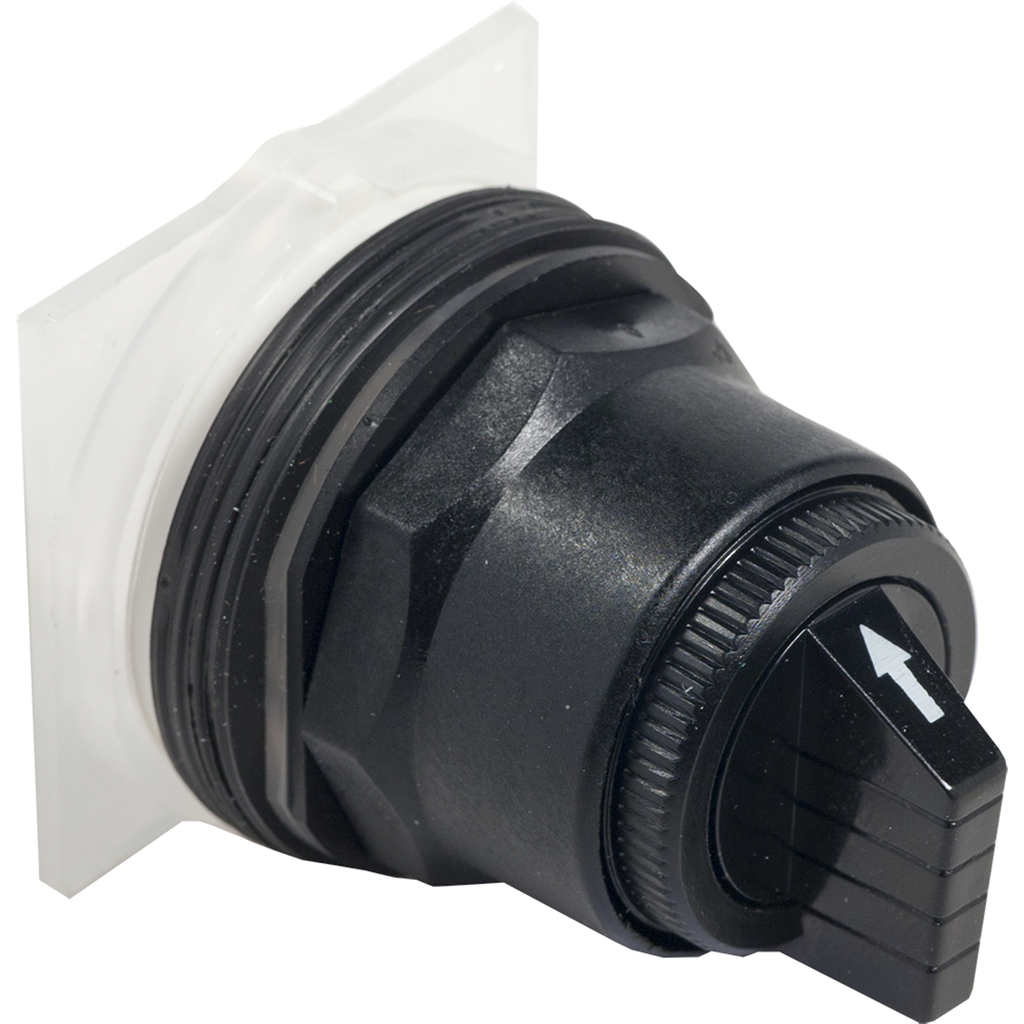

30mm push button, Type SK, 3 position selector switch, maintained, no contacts, black knob, NEMA 4, 4X

30mm push button, Type SK, 3 position selector switch, maintained, no contacts, black knob, NEMA 4, 4X

SQD9001SKS401B 9001SKS401B 785901043676
63.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type SK, 3 position selector switch, maintained, no contacts, black knob, NEMA 4, 4X-1
  • Bezel Material: Plastic
  • Enclosure Type: Dust And Oil Resistant Weatherproof Enclosure Indoor/outdoor
  • Size: 30 mm
  • Warranty Length: 18 mth
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 3 postion non-illuminated selector switch has a plastic ring nut. The selector switch is maintained in all three positions. This selctor switch has a standard black knob. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 3 postion non-illuminated selector switch has a plastic ring nut. The selector switch is maintained in all three positions. This selctor switch has a standard black knob. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS401B_CAD&p_File_name=9001SKS401B_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS401B_CAD&p_File_name=9001SKS401B_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS401B_CAD&p_File_name=9001SKS401B_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS401B_CAD&p_File_name=9001SKS401B_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKS401B_CAD&p_File_name=9001SKS401B_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : black
  • Conformance Attributes
    • Product Certifications : CE, CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR
  • Important Information Attributes
    • Operator Profile : standard handle, 1 projecting push-button
    • Type Of Operator : maintained, stay put
    • Medium Desc : 30mm push button, Type SK, 3 position selector switch, maintained, no contacts, black knob, NEMA 4, 4X
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : End of commercialisation
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Kit Identifier : N
    • Bezel Material : plastic
    • Contacts Type And Composition : without contact block
    • Enclosure Type : dust and oil resistant weatherproof enclosure indoor/outdoor
    • Operator Position Information : 3 positions
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for selector switch
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Cap Operator Or Lens Color : black
    • Pep Code : ENVPEP1208020EN
  • Environment Attributes Main
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1208020EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R/4X/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1208020EN
  • General Attributes
    • Product Or Component Type : head for selector switch
    • Range Of Product : Harmony 9001SK
  • ETIM
    • ETIM 8 : EC000222
    • ETIM 9 : EC000222
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
