SQUARE D

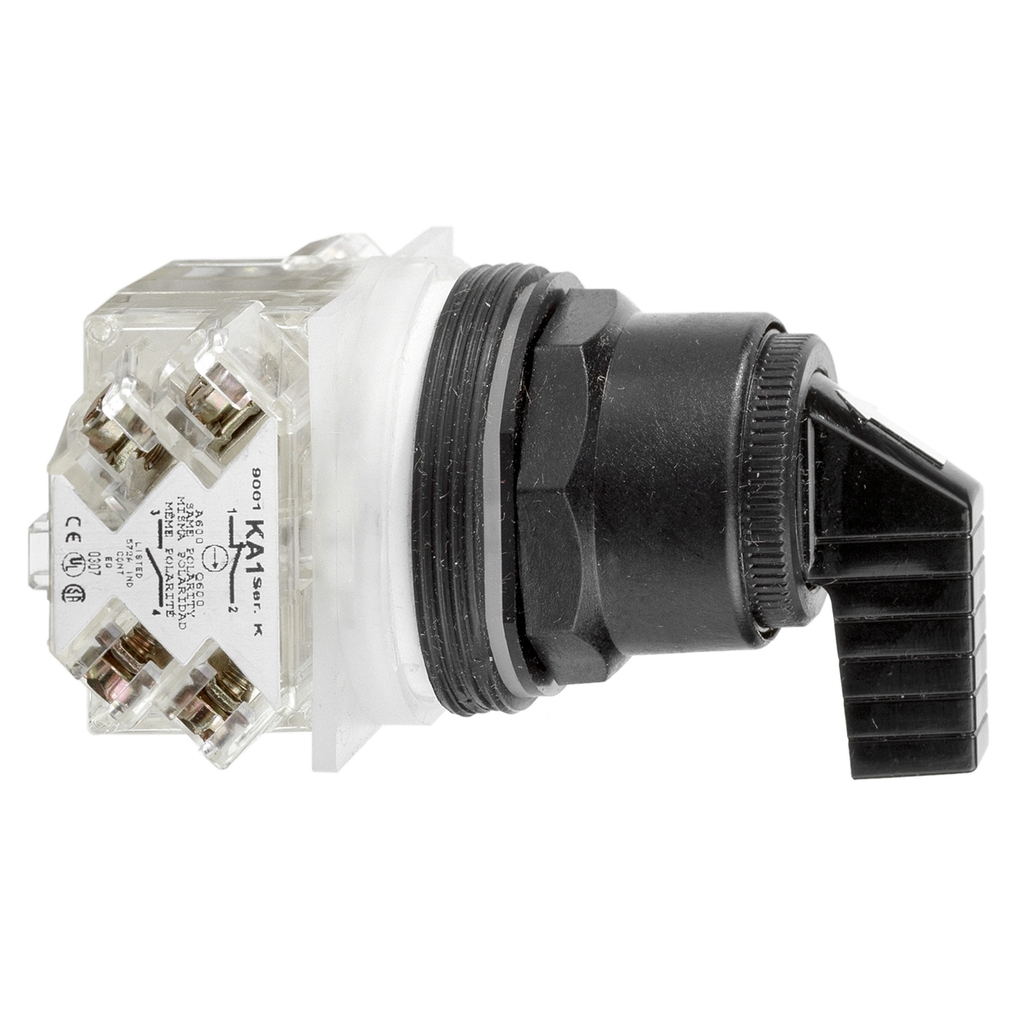

Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 2 positions, stay put

SELECTOR SWITCH OPERATOR 30MM

SQD9001SKS12FB 9001SKS12FB 785901043645
63.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 2 positions, stay put-1
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Net Weight: 0.059 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : JIS C 852 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6
    • Electrical Shock Protection Class : class II IEC 61140
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120820EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Contacts Type And Composition : without contact block
    • Bezel Material : plastic
    • Cam Profile : 4
    • Operator Position Information : 2 positions
    • Mechanical Durability : 500000 cycles
    • Mounting Diameter : 30 mm
    • Operator Profile : long handle
    • Type Of Operator : stay put
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : black
    • Net Weight : 0.059 kg
    • Size : 30 mm
    • Device Presentation : basic element
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Operator Profile : black gloved hand knob
    • Type Of Operator : maintained
    • Product Or Component Type : head for selector switch
    • Device Short Name : 9001SK
