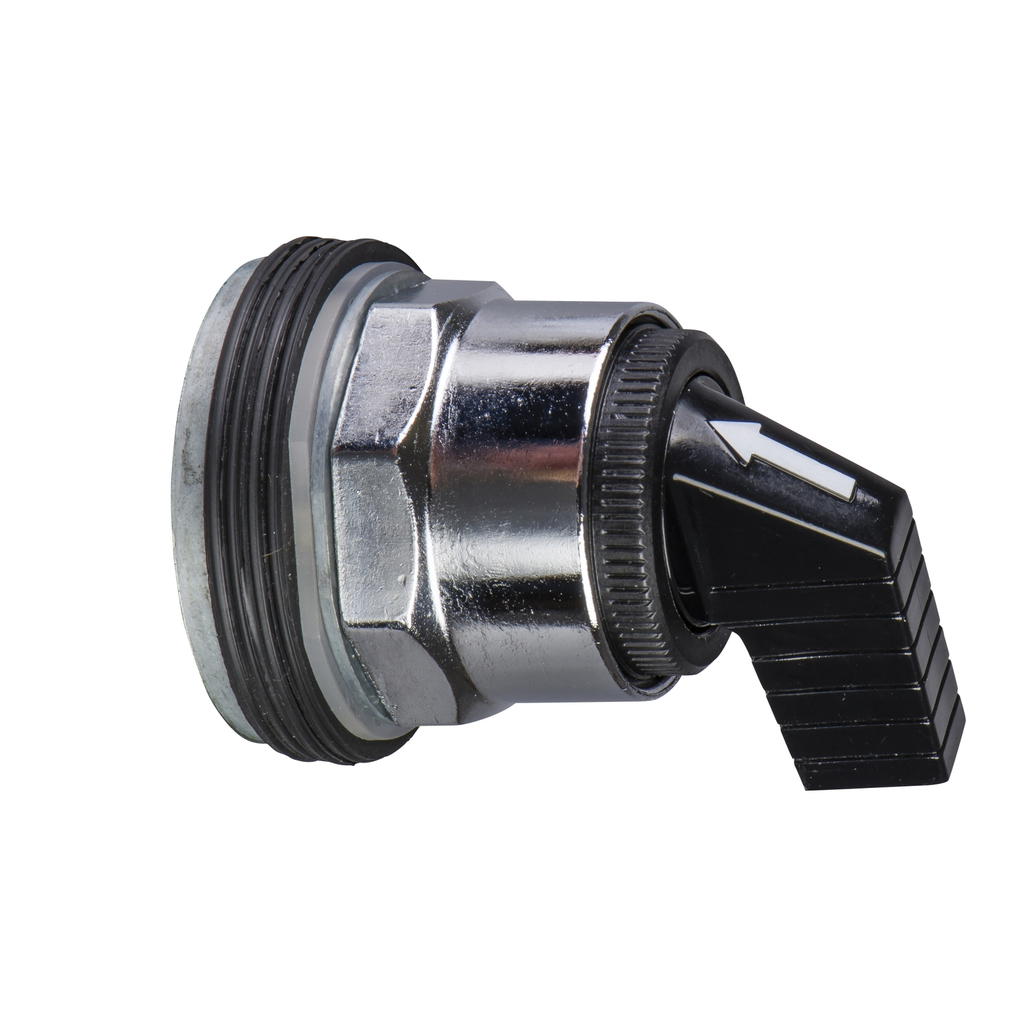

This Harmony 9001K, black selector switch with H cam has 4-positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel and it uses screw-clamp terminals. This selector switch provides a versatile interface for controlling your mac

• Connections Terminals
• screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Accessories
• 9001KN201
• 9001KN202
• Operator Profile
• black standard knob
• Product Compatibility
• 9001KA1 side 1 and 2
• Product Certifications
• CE
• CSA LR24590 class 3211 03
• UL listed file E42259 CCN NKCR

• Physical Attributes
• Cap Operator Or Lens Color : black
• Size : 30 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Etim 10 : EC001029
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 6
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : metal
• Cam Profile : 8
• Cap Operator Or Lens Color : black
• Contacts Type And Composition : 2 C/O
• Device Short Name : K
• Mounting Diameter : 30 mm
• Operator Position Information : 4 positions
• Package Weight Lbs : 176.901 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• Returnability : No
• Sustainable Packaging : Yes
• Type Of Operator : stay put
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony 9001K
• ETIM
• ETIM 8 : EC001029
• ETIM 9 : EC001029
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Overview Attributes
• Device Presentation : complete product
